The Ford F-250 Super Duty leaves the factory with noticeable front-to-rear rake for a practical reason: the higher rear ride height gives the suspension room to settle when the truck is carrying payload or supporting trailer tongue or fifth-wheel weight.
For owners who spend more time driving unloaded, however, that nose-down stance can look excessive. A well-chosen leveling kit can raise the front, improve the truck’s stance, create additional tire clearance, and sometimes improve approach clearance without requiring a full suspension lift.
Choosing the best leveling kit for F250 Super Duty trucks requires more thought than simply picking the tallest coil spacer. The F-250 uses a solid front axle on common 4WD configurations, so increasing front ride height changes track-bar angle, axle position, caster, drag-link relationship, shock travel, sway-bar geometry, and brake-line positioning. Model year matters as well. A kit that works well on a 2012 F-250 is not automatically the right configuration for a 2024 or 2025 truck.
My primary recommendation is the ReadyLIFT 66-2726 2.5-Inch Leveling Kit With Track Bar Relocation Bracket. I prefer it when a compatible 4WD F-250 needs a near-level stance and I want more than basic coil spacers; its additional geometry-related components make the 2.5-inch lift easier to justify.
I would consider the MAXRACING 2-Inch Suspension Leveling Kit for owners who want a more conservative lift and a simpler installation.
The MZS 3-Inch Front Leveling Kit is more appropriate when maximizing front height is the priority, although a 3-inch spacer deserves more attention to steering and suspension geometry.
For a work truck, tow vehicle, or daily-driven Power Stroke, I generally prefer a moderate 2- to 2.5-inch setup over chasing the maximum possible front lift.
Best Leveling Kit for F250 Super Duty Trucks

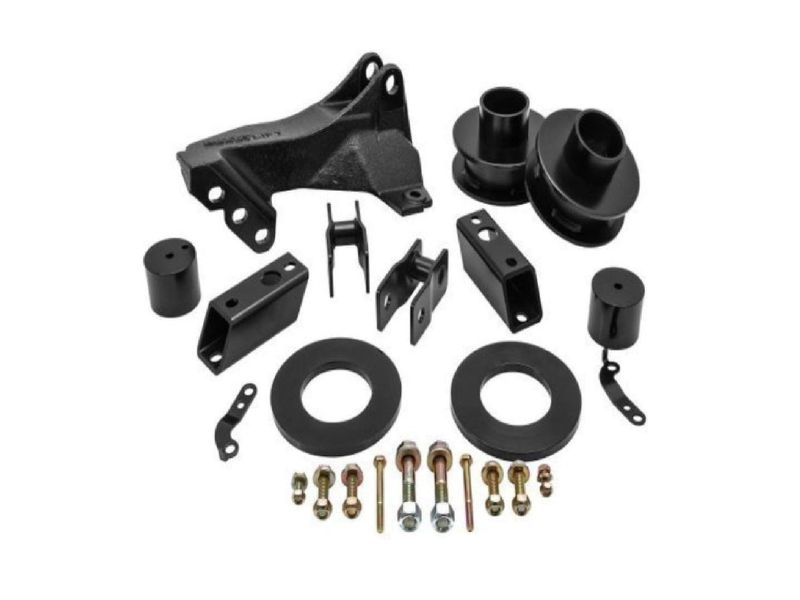

1. ReadyLIFT 66-2726 2.5-Inch Leveling Kit With Track Bar Relocation Bracket
Key Features
- Approximately 2.5 inches of front lift
- Designed for compatible 4WD Super Duty trucks
- Powder-coated steel coil-spring spacers
- Track-bar relocation bracket
- Front shock extensions
- Sway-bar frame spacers
- Sound isolators
- Designed around factory-style ride characteristics
- Can support appropriately configured 35-inch tire combinations
- Current applications extend into recent Super Duty model years
Detailed Review
The ReadyLIFT 66-2726 earns the first position because it addresses a critical issue that inexpensive spacer-only kits often ignore: raising a solid-front-axle Super Duty affects more than spring height.
A track bar locates the front axle laterally underneath the chassis. Because the bar moves through an arc, lifting the frame away from the axle changes its resting angle and can pull the axle slightly toward one side. The included track-bar relocation bracket changes the mounting relationship to help restore a more appropriate track-bar position after the front is raised.
That is particularly valuable with a 2.5-inch lift. At 1 or 1.5 inches, the change in axle position may be small enough that some owners are satisfied without correction. At 2.5 inches, I prefer a kit that at least addresses the track bar rather than pretending suspension geometry has not changed.
The package also incorporates shock extensions, allowing compatible factory front shocks to operate with the increased ride height rather than forcing the owner to purchase replacement shocks immediately. Sway-bar spacers compensate for the altered relationship between the chassis and axle, and sound isolators help retain factory-like spring isolation.
For many F-250s equipped with the common factory rear block, 2.5 inches brings the front close to level without turning the truck into a conventional full lift. That makes it appealing for 2017–2025 trucks as well as compatible earlier Super Duty applications.
Tire clearance is another advantage. A properly configured 35-inch tire can be realistic on many leveled Super Duty trucks, but the leveling kit is only one piece of the fitment equation. Wheel width, wheel offset, backspacing, actual tire dimensions, and tread shoulder shape matter. A narrow 35 on a positive-offset wheel can clear where a wide 35 on an aggressive negative-offset wheel rubs.
Recent trucks require additional attention. Certain 2023-and-newer F-250s equipped with an auto-leveling headlight arrangement related to the Onboard Scales option can require an additional bracket after ride height changes. Some later trucks may also need a different approach to the track-bar bracket depending on how the axle centers after installation.
The Tremor package deserves separate consideration because its factory suspension already changes front ride height. I would never assume a conventional non-Tremor leveling result will be duplicated on a Tremor.
What I Like
- Addresses track-bar geometry instead of providing spacers alone
- Useful 2.5-inch lift for near-level stance
- Includes shock and sway-bar related components
- Retains factory-style coil springs
- Better suited to a comprehensive Super Duty level than basic spacer kits
- Supports larger tire setups when wheel specifications are correct
What I Do Not Like
- More involved to install than a simple spacer kit
- 2.5 inches may be excessive for owners who tow heavily and want to retain rake
- Recent trucks with special electronic options require additional fitment checks
- Tremor trucks require separate consideration
Verdict
The ReadyLIFT 66-2726 is my primary recommendation for a compatible 4WD F-250 because it treats a 2.5-inch level as a suspension modification rather than merely a cosmetic spacer installation. The track-bar relocation bracket, shock extensions, and sway-bar components make it particularly attractive for owners trying to retain predictable steering geometry.
I would choose it for a near-level daily driver or tow rig when the exact factory rear-block height and model-year requirements have been verified.

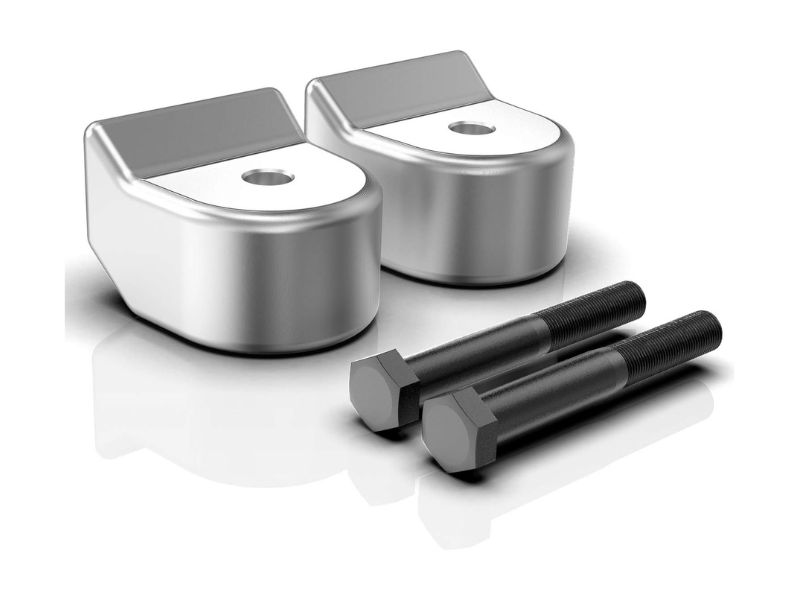

2. MAXRACING 2-Inch Suspension Leveling Kit
Key Features
- 2-inch front lift
- Compatible with a broad range of 4WD F-250 Super Duty applications
- CNC-machined billet-aluminum construction
- Bolt-on coil-spacer design
- Retains factory coil springs
- Conservative lift height
- Suitable for stock-style daily driving
- Useful for moderate tire-clearance improvement
Detailed Review
The MAXRACING 2-inch kit is the option I would consider when simplicity and moderate lift matter more than achieving a mathematically perfect level.
Two inches is an excellent compromise on an F-250. It substantially reduces factory rake while normally leaving a little rear-high stance, which I actually prefer on trucks that tow or carry meaningful bed weight.
A perfectly level empty pickup can become visibly nose-high after a trailer adds tongue weight or a fifth-wheel pin compresses the rear springs. Retaining a small amount of rake gives the truck room to work.
The kit uses billet-aluminum coil spacers rather than altering the factory spring rate. Because the original coil springs remain in place, a spacer does not make the springs intrinsically stiffer. Ride characteristics can therefore remain relatively close to factory behavior on normal pavement.
That does not mean suspension behavior is completely unchanged. Raising the chassis increases the static angle of the radius arms and track bar and reduces available droop in the original shock arrangement. Alignment still needs to be checked.
The 2-inch height also makes this kit a sensible choice for owners who want to run larger tires without building the truck around aggressive wheels. On many F-250s, a 33-inch tire is straightforward, while some 34- and 35-inch combinations become possible depending on wheel specifications and model year.
I would especially consider this style of kit on an older 2005–2016 4WD truck where the owner wants a clean level without investing in a more extensive suspension package.
What I Like
- Moderate 2-inch lift
- Billet-aluminum construction
- Simple design with fewer components
- Leaves more useful rake than many 2.5- or 3-inch setups
- Good match for daily driving and towing-oriented trucks
- Retains original coil springs
What I Do Not Like
- Does not provide track-bar correction
- Does not replace worn shocks or steering components
- 2 inches may not fully level trucks with substantial factory rake
- Larger tires still depend on wheel offset and actual dimensions
Verdict
I would choose the MAXRACING 2-inch kit when I want to noticeably improve the stance without pushing the suspension as far as a 2.5- or 3-inch spacer.
It is especially attractive for a working F-250 where preserving some rear-high rake is a benefit rather than a disadvantage.

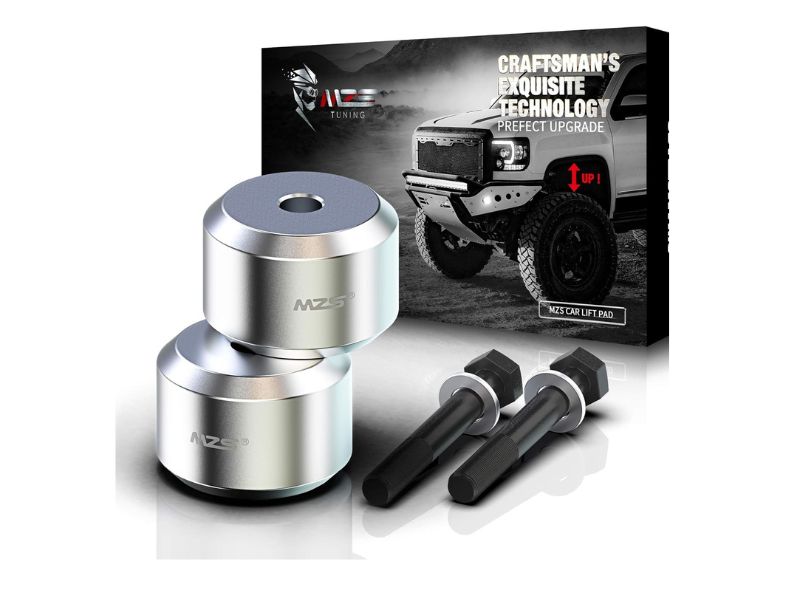

3. MZS 3-Inch Front Leveling Kit
Key Features
- 3-inch front lift
- CNC-machined aluminum spacers
- Intended for compatible 4WD F-250/F-350 Super Duty applications
- Bolt-on configuration
- Retains factory front coils
- Creates a more aggressive stance
- Provides substantial front wheel-well clearance
Detailed Review
The MZS 3-inch kit serves a different buyer from my first two recommendations.
Three inches of front lift is approaching the point where I stop treating an F-250 modification as a simple cosmetic level and start evaluating the truck like a small suspension lift.
The additional height produces a strong visual change and gives the body, bumper, and frame more clearance. It can also help create room around larger tires. However, remember an important solid-axle principle: a coil spacer does not raise the lowest point of the front differential housing away from the ground. Only a taller tire increases differential ground clearance.
Three inches also produces larger changes in track-bar angle and lateral axle position. Caster decreases as the radius-arm geometry changes, which can reduce steering return-to-center and straight-line stability if it is not corrected properly.
For this reason, I would not install a 3-inch spacer and consider the job finished. After installation, I would measure axle centering, obtain a professional alignment, inspect caster, verify brake-line slack at full droop, and evaluate whether track-bar correction or radius-arm/caster components are needed.
The MZS kit can make sense for an appearance-focused truck, especially when the owner understands that larger lift height creates greater setup responsibility.
It is less appealing to me for a heavy tow vehicle. If your F-250 regularly carries substantial pin weight or payload, leaving some rear rake is more useful than making the truck perfectly level while empty.
What I Like
- Provides a substantial visual change
- Three inches of front lift creates useful body and tire clearance
- Aluminum spacer construction
- Retains factory coil springs
- Broad application coverage on compatible 4WD Super Duty trucks
What I Do Not Like
- Three inches changes suspension geometry substantially
- Track-bar and caster correction may deserve additional attention
- Can leave an unloaded truck close to level or nose-high depending on rear height
- Not my preferred height for frequent heavy towing
Verdict
The MZS 3-inch kit is better suited to an owner who specifically wants maximum front height from a spacer-style setup.
I would not choose it merely because 3 inches sounds better than 2. A Super Duty at this height should be treated as a suspension-geometry project, with alignment and axle-centering checks included in the plan.

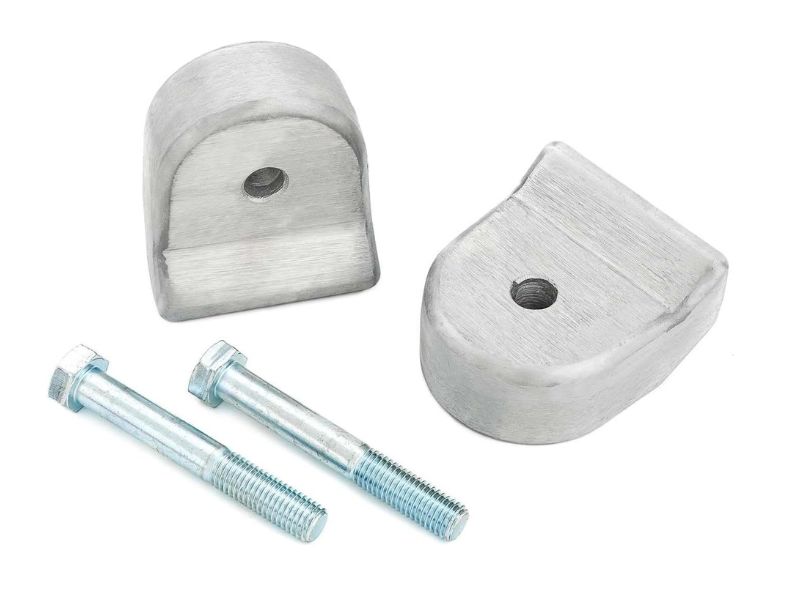

4. Rough Country 514 2-Inch Leveling Kit
Key Features
- 2-inch front leveling height
- Cast-steel coil spacers
- Lip-locking spacer design
- Bolt-on installation
- Designed for compatible 4WD Super Duty trucks
- Retains factory coil springs
- Appropriate for moderate front leveling
- Useful on many 2005–2023 applications
Detailed Review
The Rough Country 514 uses a simple cast-steel coil spacer to raise the front approximately 2 inches.
Its biggest advantage is that the lift height remains conservative. On an F-250, two inches can dramatically reduce factory rake without requiring the truck to operate at the more aggressive suspension angles associated with a 3-inch spacer.
The spacer incorporates a locating lip that helps it sit properly in the factory spring seat. Proper spring positioning matters because the coil needs to remain located correctly as the suspension moves through compression and droop.
Steel construction is also well suited to a heavy-duty truck. In areas where winter road salt is common, I would inspect the coating periodically as part of normal chassis maintenance. Surface corrosion around suspension hardware is easier to address before it develops into a removal problem years later.
The kit retains the factory springs and therefore does not directly change spring rate. If an F-250 feels harsh before installation, a spacer is unlikely to make worn shocks, stiff tires, or tired bushings disappear.
Similarly, a spacer does not repair steering problems. If the truck has loose track-bar joints, worn ball joints, tie-rod play, or poor caster, those issues should be corrected before adding lift.
For an older 2012, 2015, or 2016 F-250, the Rough Country 514 is particularly relevant because its straightforward design fits the type of coil-spring front suspension used on those 4WD trucks.
What I Like
- Practical 2-inch lift
- Heavy-duty cast-steel construction
- Locating-lip spacer design
- Keeps the factory coils
- Sensible choice for older Super Duty trucks
- Less geometry change than most 3-inch kits
What I Do Not Like
- Does not include comprehensive track-bar correction
- Does not replace worn front shocks
- Exact year and suspension package need verification
- Alignment is still necessary
Verdict
The Rough Country 514 is a straightforward choice for an owner who wants a moderate front lift without turning the F-250 into a larger suspension project.
I prefer this type of 2-inch setup for daily-driven older Super Duty trucks where simplicity matters.

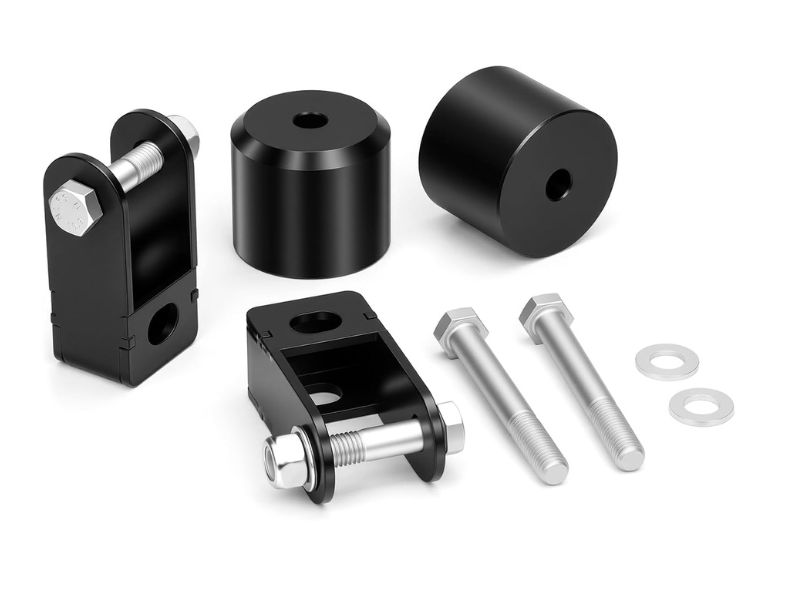

5. KSP Performance 3-Inch Front Leveling Kit
Key Features
- 3-inch front lift
- Aluminum coil-spring spacers
- Shock-extension hardware
- Compatible with selected 2005–2023 4WD Super Duty applications
- Bolt-on approach
- Retains factory front coil springs
- Designed for an aggressive level
Detailed Review
KSP’s 3-inch kit combines front coil spacers with shock-extension components, which is useful because increased ride height changes where the factory shocks sit in their travel range.
The three-inch lift delivers the visual result many owners want from a leveled Super Duty: a much flatter beltline and noticeably more front wheel-well space.
From a suspension perspective, however, 3 inches remains a height where I want additional checks.
On a 4WD F-250, the track bar and drag link work together to control axle position and steering. Changing one angle significantly without considering the other can influence bump steer and steering-wheel position.
Caster is another concern. The F-250’s radius arms control the fore-aft position and rotational relationship of the front axle. Raising the chassis changes that geometry. Adequate positive caster is important for straight-line stability and steering return.
This does not mean a 3-inch kit will automatically drive poorly. It means the installer should measure and align rather than assume that bolting in spacers completes the job.
For appearance-driven builds and trucks where large tires are a major goal, the additional height can be worthwhile. For highway towing, a 2- or 2.5-inch level remains my preference.
What I Like
- Noticeable 3-inch front height increase
- Includes shock-extension components
- Aluminum spacer construction
- Suitable for owners prioritizing a more aggressive stance
- Retains factory coil springs
What I Do Not Like
- More geometry change than a moderate level
- May require additional correction components for ideal alignment
- Reduces useful factory rake
- Tire clearance is still dependent on wheel specification
Verdict
The KSP 3-inch kit makes sense when the owner knowingly chooses an aggressive level and is willing to complete the alignment and geometry work that comes with it.
I would not make 3 inches my default recommendation for a stock work truck.

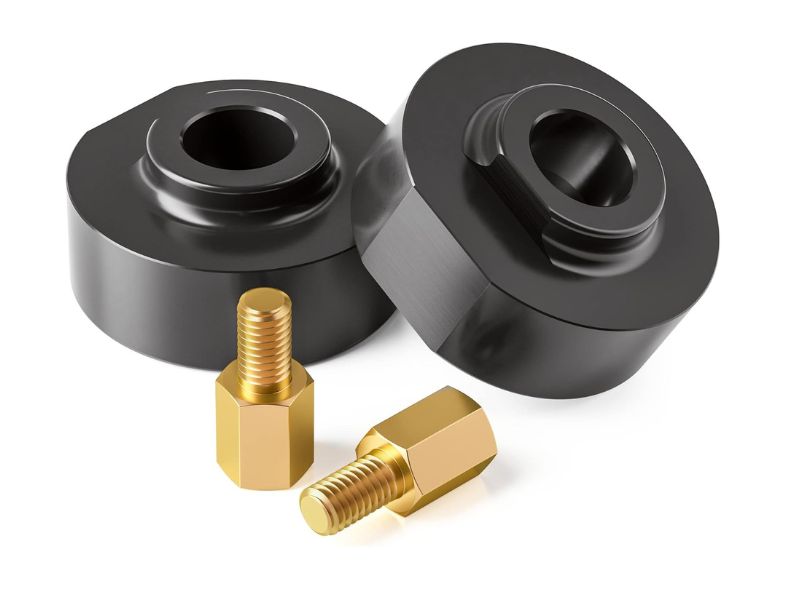

6. KSP Performance 2-Inch 2WD Front Leveling Kit
Key Features
- Designed specifically for compatible 2WD applications
- Approximately 2 inches of front lift
- Front spacer and stud-extender configuration
- Broad older Super Duty fitment range
- Useful alternative to 4WD-only kits
- Retains factory suspension components
Detailed Review
This KSP kit is included for one important reason: not every F-250 Super Duty is 4WD.
Most popular F-250 leveling kits are designed around the coil-spring solid-front-axle arrangement of 4WD trucks. Installing a 4WD kit on a 2WD truck simply because the year and model name match is a serious fitment mistake.
The KSP 2-inch 2WD kit targets the different front suspension used on compatible two-wheel-drive F-250 and F-350 models.
A 2-inch lift is also a sensible height for a 2WD work truck. It reduces nose-down appearance while preserving enough rear rake for cargo use.
Because 2WD suspension architecture differs across Super Duty generations, I would pay particularly close attention to the exact year, engine, and factory front suspension before ordering.
This product is not the substitute I would use on a 4WD Power Stroke merely because its lift height is right.
What I Like
- Provides an option specifically for 2WD owners
- Moderate 2-inch height
- Useful for older work-truck applications
- Less aggressive than a 3-inch level
- Helps avoid forcing a 4WD kit onto the wrong suspension
What I Do Not Like
- Not compatible with 4WD trucks
- Later-model fitment is more limited
- Does not apply to many buyers searching for a Super Duty leveling kit
- Exact front-suspension configuration is essential
Verdict
I recommend this KSP kit only when the truck is a confirmed compatible 2WD F-250.
Its value is specialization: it gives two-wheel-drive owners a relevant option instead of treating every Super Duty as though it uses the same front suspension.

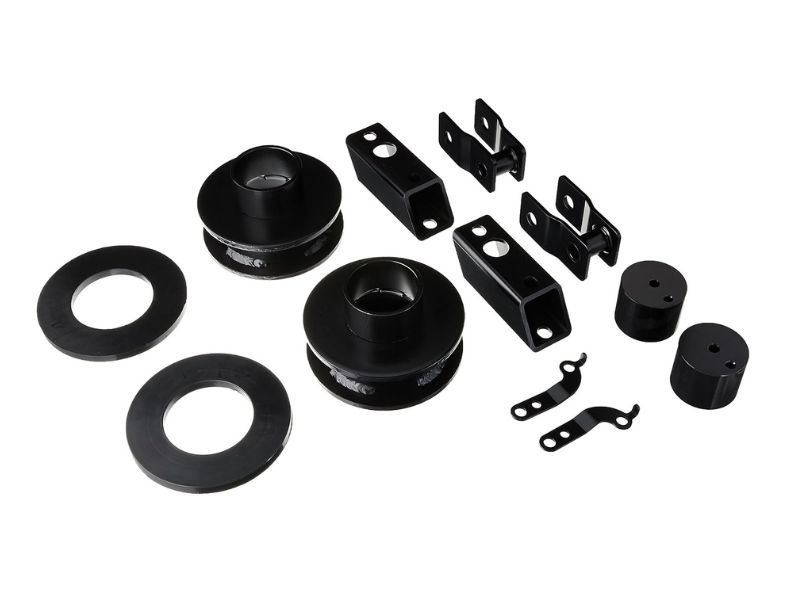

7. ReadyLIFT 66-2725 2.5-Inch Front Leveling Kit
Key Features
- 2.5-inch front lift
- Compatible with selected 2011–2026 4WD Super Duty applications
- Coil-spring spacers
- Sound isolators
- Shock extensions
- Sway-bar spacers
- Designed around factory-style ride
- Appropriate 35-inch tire potential with correct wheel setup
- Special considerations for recent trucks with auto-leveling equipment
Detailed Review
The ReadyLIFT 66-2725 shares the same general 2.5-inch target as the 66-2726 but is a simpler package because the 66-2726 adds a track-bar relocation solution.
That makes the 66-2725 useful when the truck’s existing geometry can be brought into an acceptable range without the included relocation bracket or when the installer plans another axle-centering solution.
It still goes beyond a pair of basic spacers. Shock extensions help preserve operating range, and sway-bar spacers account for the change in chassis-to-axle height.
This is especially relevant on 2017–2025 F-250s where 2.5 inches is a common target for a near-level appearance.
The 2023-and-newer generation deserves careful option checking. If the truck is equipped with the applicable automatic headlamp-leveling system associated with Onboard Scales, additional hardware can be needed so the system continues to reference ride height properly.
The standard kit should also not be automatically treated as a Tremor solution. A Tremor starts from a different suspension baseline, so a conventional 2.5-inch level may not produce the expected net height.
What I Like
- Comprehensive 2.5-inch package without being a full suspension lift
- Includes shock and sway-bar related corrections
- Strong recent-model coverage
- Retains factory springs
- Good tire-clearance potential
What I Do Not Like
- Does not include the same track-bar solution as the 66-2726
- Recent electronic options require extra attention
- Not the default choice for Tremor models
- 2.5 inches removes a meaningful amount of useful towing rake
Verdict
The ReadyLIFT 66-2725 is a good option when a 2.5-inch level is appropriate but the owner does not need the complete track-bar-bracket package.
For the broadest 2.5-inch recommendation, I still prefer the 66-2726 because axle-position correction deserves consideration at this height.

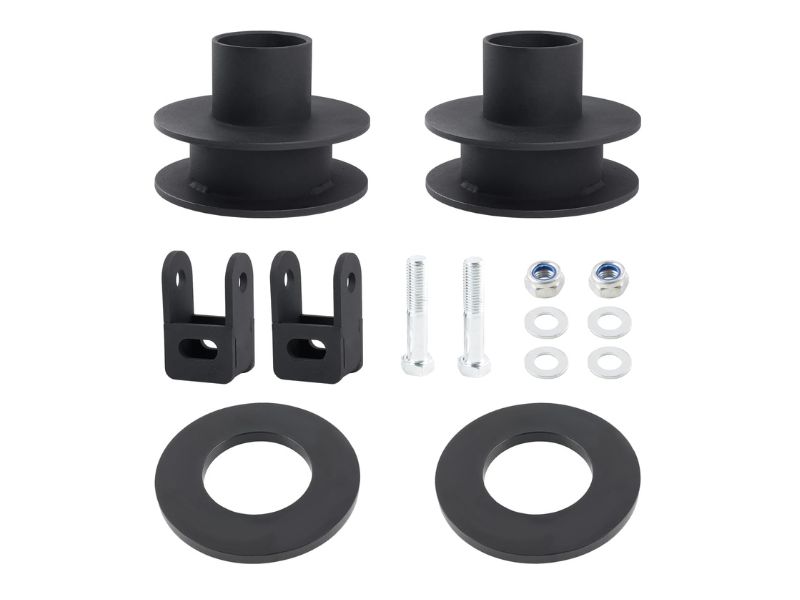

8. RiAiCiING 2-Inch Leveling Kit
Key Features
- 2-inch front lift
- High-strength steel coil-spring spacers
- Shock-extension components
- Sound-isolation components
- Compatible with selected 2005–2024 4WD F-250/F-350 applications
- Bolt-on configuration
- Retains stock coil springs
Detailed Review
The RiAiCiING 2-inch kit follows a practical formula: steel front spacers combined with hardware intended to accommodate the new front ride height.
I like the 2-inch height because it works well for owners who want visible improvement without completely erasing the F-250’s functional rake.
The included shock-extension approach is useful when retaining factory dampers. It helps avoid positioning the shock too close to the end of its intended travel simply because the frame now sits higher relative to the axle.
As with any steel suspension component, coating condition matters in regions where road salt is heavily used. Inspecting the spacers and hardware during oil changes or tire rotations is simple preventive maintenance.
I would pair this kit with a professional alignment and an inspection of the track bar, drag link, tie rod, ball joints, radius-arm bushings, and steering stabilizer. A leveling kit should not be installed as a way to hide worn steering components.
What I Like
- Sensible 2-inch front lift
- Steel spacer construction
- Includes shock-related components
- Broad 4WD model-year coverage
- Preserves more rake than taller kits
What I Do Not Like
- Does not provide the comprehensive geometry correction of the top ReadyLIFT kit
- Current-model option packages still require verification
- Coated steel should be inspected in corrosive environments
- Does not compensate for worn suspension parts
Verdict
The RiAiCiING 2-inch kit is another practical choice for owners who prefer moderate lift over maximum height.
Its combination of conservative ride-height change and shock-related hardware makes more sense to me for everyday use than an inexpensive 3-inch spacer alone.
9. ATRACYPART 2.5-Inch Leveling Lift Kit With Track Bar Bracket
Key Features
- Approximately 2.5 inches of front lift
- Designed for selected 2011–2025 4WD Super Duty trucks
- Front coil-spring spacer arrangement
- Track-bar relocation bracket
- Vehicle-specific suspension design
- Intended to provide a near-level front stance
Detailed Review
The ATRACYPART kit is interesting because it includes a track-bar relocation bracket rather than limiting the package to front spacers.
That is a meaningful feature at 2.5 inches.
When the front of a solid-axle F-250 is raised, the original track bar becomes more angled. Because it anchors the axle laterally, that angle change can shift the front axle slightly off center.
Relocating the mounting position can reduce that shift and improve the relationship between the axle and chassis.
I would still verify actual axle position after installation. Suspension tolerances, factory rear-block height, model-year changes, and individual truck configuration mean a bracket should not be treated as a guarantee that every measurement will be perfect.
A professional alignment is also essential. Track-bar correction does not automatically restore caster or toe.
The 2.5-inch height is well suited to owners who prioritize a visibly level stance and want better tire clearance without moving to a 4- or 6-inch suspension lift.
What I Like
- Includes a track-bar relocation bracket
- Useful 2.5-inch lift height
- More geometry-conscious than spacer-only packages
- Relevant to several modern Super Duty generations
- Supports a near-level appearance
What I Do Not Like
- Installation is more involved than a simple spacer
- Alignment remains necessary
- Exact component compatibility should be checked carefully
- Recent special-option trucks need extra fitment verification
Verdict
I would consider the ATRACYPART kit when I want 2.5 inches of lift and specifically want track-bar relocation included in the package.
The ReadyLIFT 66-2726 remains my primary recommendation because of its more comprehensive supporting hardware and application-specific guidance.

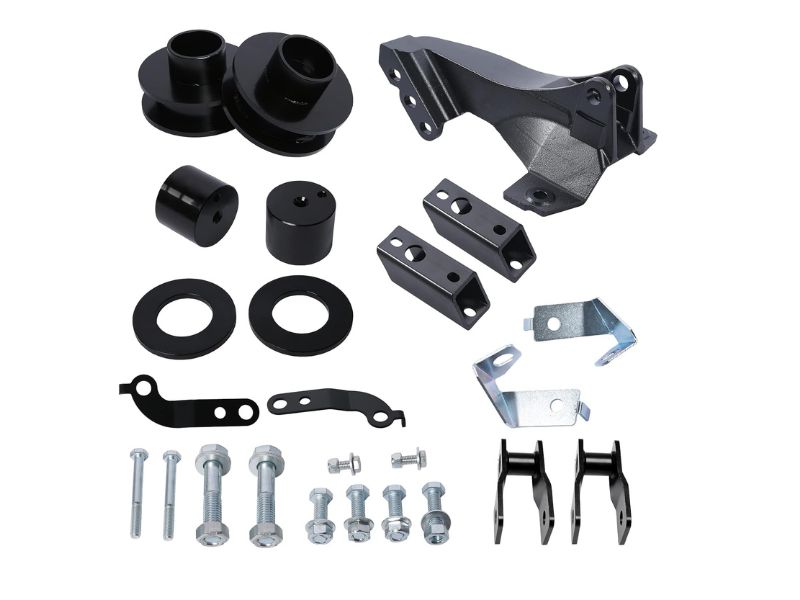

10. maXpeedingrods 2.5-Inch Leveling Lift Kit With Track Bar Relocation Bracket
Key Features
- 2.5-inch front lift
- Compatible with selected 2011–2022 4WD Super Duty applications
- Front coil-spacer design
- Track-bar relocation bracket
- Shock-extension hardware
- Steel suspension components
- Bolt-on leveling approach
Detailed Review
The maXpeedingrods 2.5-inch kit rounds out the list as another package that recognizes the need to address axle position when adding more than a small front lift.
For 2011–2022 4WD F-250 owners, the combination of spacers, track-bar relocation, and shock-related hardware provides a more complete starting point than a basic 2.5-inch spacer.
I particularly like this type of setup on trucks where the owner wants a 35-inch-class tire but does not need the cost, height, or additional components of a full suspension lift.
Wheel selection still determines whether the tire actually clears.
Going to a large negative-offset wheel pushes the tire outward, changing its swing arc as the steering turns. The tire may then contact the inner fender, bumper area, or other components even though vertical wheel-well clearance appears sufficient.
The limited application range is its primary drawback for this pillar guide. Owners of 2023–2025 trucks should select a product specifically confirmed for the newer generation rather than assuming older hardware remains correct.
What I Like
- Includes track-bar correction
- Useful 2.5-inch lift
- Shock-related hardware included
- Good match for many 2011–2022 trucks
- More complete than a spacer-only system
What I Do Not Like
- Not my choice for 2023–2025 trucks
- Requires a professional post-install alignment
- 2.5 inches may reduce too much rake for heavy towing
- Tire clearance still depends on wheel specifications
Verdict
The maXpeedingrods kit is most relevant to 2011–2022 owners who want a 2.5-inch front level with more supporting hardware than a pair of simple spacers.
For newer trucks, I would move to a kit with explicitly current-generation fitment.
F250 Super Duty Leveling Kit Comparison
| Product | Front Lift | Drive Type | Typical Year Coverage | Main Spacer Design | Track-Bar Correction | Shock Accommodation | Best Use | Main Limitation |
| ReadyLIFT 66-2726 | 2.5 in. | 4WD | 2011–2026 compatible applications | Steel coil spacer | Included | Extensions | Complete near-level setup | Requires careful option/rear-block verification |
| MAXRACING | 2 in. | 4WD | 2005–2026 compatible applications | Billet aluminum | Not included | Factory setup retained | Moderate daily-driver level | May not fully level every truck |
| MZS | 3 in. | 4WD | 2005–2026 compatible applications | CNC aluminum | Not included | Application dependent | Aggressive stance | Greater geometry change |
| Rough Country 514 | 2 in. | 4WD | 2005–2023 compatible applications | Cast steel | Not included | Factory setup retained | Simple moderate level | Limited geometry correction |
| KSP 3-Inch | 3 in. | 4WD | 2005–2023 compatible applications | Aluminum | Not included | Extensions | Maximum spacer-style height | Caster/axle position need attention |
| KSP 2WD | 2 in. | 2WD | Older compatible 2WD trucks | Front spacer system | Application specific | Factory setup | Two-wheel-drive trucks | Not for 4WD |
| ReadyLIFT 66-2725 | 2.5 in. | 4WD | 2011–2026 compatible applications | Coil spacer | Not included in base kit | Extensions | Current-model near-level stance | Additional option checks required |
| RiAiCiING | 2 in. | 4WD | 2005–2024 compatible applications | Steel coil spacer | Not included | Extensions | Moderate replacement-style level | Less comprehensive geometry correction |
| ATRACYPART | 2.5 in. | 4WD | 2011–2025 compatible applications | Coil spacer | Included | Kit dependent | Value-oriented 2.5-inch level | Exact configuration must be verified |
| maXpeedingrods | 2.5 in. | 4WD | 2011–2022 compatible applications | Coil spacer | Included | Extensions | 2011–2022 level with track-bar correction | Not intended as my recent-model choice |
The biggest difference between these products is not simply whether they lift the truck 2, 2.5, or 3 inches. The real difference is how much of the geometry change the kit addresses.
A basic 2-inch spacer can be perfectly reasonable for a working truck. At 2.5 inches, I increasingly prefer track-bar and shock-related correction. At 3 inches, caster, axle position, steering geometry, and available travel deserve much closer attention.
How I Evaluate an F250 Super Duty Leveling Kit
I judge an F-250 leveling system by what happens to the entire front suspension after the advertised lift is installed.
The most important questions are:
- Does the height match the truck’s measured factory rake?
- Is the kit designed for the correct generation and drive system?
- Does it maintain reasonable caster?
- Does it address track-bar position when necessary?
- Is shock travel preserved?
- Are sway-bar and brake-line relationships acceptable?
- Does it retain enough rear rake for the truck’s actual workload?
- Will the intended tire and wheel combination clear?
- Are electronic ride-height systems affected on newer trucks?
A leveling kit should make the truck work better for its owner, not simply make an empty truck look flat in a parking lot.
Complete F250 Super Duty Leveling Kit Buying Guide
Measure Your Truck Before Choosing a Lift Height
Do not order a 2.5-inch kit simply because another F-250 owner says it made their truck perfectly level.
Park on a flat surface and measure from the center of each wheel hub to the lower edge of the fender opening.
Hub-to-fender measurement removes tire diameter from the equation.
If the rear measurement is 2.25 inches greater than the front, a 2-inch kit will leave roughly a quarter-inch of rake before considering suspension settling and normal production variation.
If the difference is only 1.5 inches, installing a 3-inch front spacer can leave the truck noticeably nose-high.
1.5-Inch Leveling Kits
A 1- to 1.5-inch lift is excellent for:
- trucks used heavily for towing
- snow-plow trucks
- owners retaining substantial payload duty
- trucks with only mild factory rake
- owners who want minimal geometry change
It may not look perfectly level, but functional rake is not a flaw.
2-Inch Leveling Kits
For many F-250s, 2 inches is the sweet spot.
It creates a visible stance improvement, increases body clearance, and preserves some rear-high attitude.
This is my preferred height for many work trucks and daily drivers.
2.5-Inch Leveling Kits
A 2.5-inch level is appropriate when the truck has enough measured rake and the owner wants a near-level appearance.
At this height, I place more value on:
- track-bar correction
- shock extensions or properly sized shocks
- sway-bar correction
- caster verification
- careful alignment
3-Inch Leveling Kits
Three inches can look excellent, but it should be approached as a small suspension lift.
The additional height can require:
- adjustable or relocated track bar
- caster correction
- radius-arm correction
- longer shocks or extensions
- brake-line checks
- steering-geometry evaluation
If appearance is the only reason for choosing 3 inches, I would first compare what a properly configured 2.5-inch system looks like.
Why the Track Bar Matters on an F250
The F-250’s solid front axle must remain centered underneath the chassis.
The track bar, sometimes called a Panhard bar, prevents the axle from moving sideways.
One end attaches to the axle and the other to the chassis. As suspension height changes, the track bar swings through an arc.
Raise the chassis without changing the mounting position and the axle may shift sideways.
The amount varies with lift height and truck configuration.
A track-bar relocation bracket moves the mounting point. An adjustable track bar changes the bar’s effective length. Both can be used to correct axle position, depending on the system.
At 2.5 inches and above, I consider axle centering a measurement worth making rather than an issue worth guessing about.
Caster and Radius-Arm Geometry
Caster is the fore-aft tilt of the steering axis.
Positive caster contributes to:
- straight-line stability
- steering return-to-center
- highway confidence
Raising a Super Duty can reduce caster because of the relationship between the axle and radius arms.
Too little caster can make a heavy truck feel less settled on the highway.
Correction methods can include:
- alignment cams or bushings where appropriate
- radius-arm drop brackets
- corrected aftermarket radius arms
The correct solution depends on lift height and generation.
A steering stabilizer is not a substitute for proper caster.
Leveling Kits and Death Wobble
A leveling kit does not automatically cause death wobble.
However, changing suspension geometry can expose problems that were already developing.
Before leveling a higher-mileage F-250, inspect:
- track-bar bushings and joints
- track-bar mounting holes
- ball joints
- tie-rod ends
- drag-link joints
- wheel bearings
- radius-arm bushings
- tire balance and condition
- caster and toe
A stronger steering stabilizer can reduce steering kick, but it should not be used to hide loose components.
Will a Leveling Kit Increase Ground Clearance?
Only partially.
Raising the front increases clearance under the bumper, frame, and some chassis components. It can also improve the approach angle.
But the F-250 uses a solid axle. A spacer does not raise the differential housing farther from the road.
To increase ground clearance beneath the differential, you need a taller tire.
That distinction matters for off-road buyers.
Leveling a Diesel vs Gas F250
Spacer-style kits retain the factory front coils, so they are less sensitive to spring-rate differences than complete replacement-spring systems.
However, engine weight still affects the truck’s starting ride height.
A 6.7L Power Stroke carries considerably more front-end mass than a gasoline truck. Accessories such as:
- steel bumpers
- winches
- snow plows
- grille guards
can further reduce front ride height.
If permanent front weight is substantial, I would consider appropriately rated replacement coils rather than using spacers solely to compensate for spring sag or additional load.
Tire Size After Leveling an F250
33-Inch Tires
A 33-inch-class tire is usually the least complicated upgrade on a leveled Super Duty.
Many trucks can accommodate this size without aggressive wheel changes.
34-Inch Tires
A 34-inch-class setup often balances appearance, gearing, weight, and clearance well.
Again, actual measured dimensions matter more than the number printed on the sidewall.
35-Inch Tires
A 35-inch tire is one of the main reasons owners choose 2.5-inch leveling systems.
It can work extremely well, but wheel offset is critical.
A manufacturer may develop its tire-fitment recommendation around a particular:
- wheel width
- offset
- backspacing
- tire brand
- tread width
Changing any of those variables can change clearance.
Why Wheel Offset Matters
Positive offset pulls the wheel farther inward.
Negative offset pushes it outward.
An aggressive negative-offset wheel may create more clearance from suspension components but simultaneously increase the tire’s swing radius and bring it closer to the bumper or fender edge at steering lock.
Never use tire diameter as your only fitment measurement.
Leveling Kits, Towing, and Payload
A leveling kit does not increase payload capacity, GVWR, GAWR, or tow rating.
Those limits remain defined by the truck’s configuration.
The main towing concern is stance.
An unloaded F-250 has rake so the rear can compress under load without immediately sitting below the front.
If you remove all of that rake, a fifth-wheel or travel trailer can make the truck look nose-high.
For frequent towing, I prefer one of three strategies:
- Use a moderate front level and retain some rake.
- Select rear load-support equipment appropriate to the actual load.
- Set up front and rear suspension together rather than optimizing empty appearance alone.
Do not use airbags or helper springs to justify exceeding payload ratings.
Best Leveling Kit by F250 Model Year
Best Leveling Kit for 2012 F250
For someone searching for the best leveling kit for 2012 F250 trucks, I would start by deciding between a moderate 2-inch level and a more complete 2.5-inch system.
The 2012 4WD Super Duty uses the coil-spring solid-front-axle architecture where track-bar and caster geometry matter.
Rough Country 514 and MAXRACING are sensible 2-inch choices. ReadyLIFT 66-2726 is more appropriate when a 2.5-inch near-level stance is desired and the complete configuration matches the truck.
Best Leveling Kit for 2015 F250
The best leveling kit for 2015 F250 owners depends heavily on how the truck is used.
For towing and work, I prefer approximately 2 inches. For a mostly unloaded personal truck with enough factory rake, 2.5 inches can produce a more level stance.
Because 2015 trucks are now old enough to have meaningful suspension wear, inspect ball joints, track-bar joints, steering linkage, and shocks before modifying ride height.
Best Leveling Kit for 2016 F250
When choosing the best leveling kit for 2016 F250, the same 2011–2016 suspension-generation principles apply.
A 2-inch spacer is the simpler daily-driver route. A 2.5-inch system with additional geometry components is preferable when 35-inch tire clearance and a near-level appearance are priorities.
I would not install a leveling kit over worn steering components merely to change appearance.
Best 2017 F250 Leveling Kit
The best 2017 F250 leveling kit needs to account for the major Super Duty redesign that arrived for 2017.
This model year can retain substantial rake with only a 2-inch level, so owners who specifically want a near-flat stance often consider 2.5 inches.
ReadyLIFT 66-2726 is particularly relevant because its track-bar and supporting components address the geometry changes associated with that amount of lift.
Measure your individual truck rather than assuming every 2017 needs exactly the same front height.
Best Leveling Kit for 2018 F250
For the best leveling kit for 2018 F250, I generally prefer 2 to 2.5 inches.
A 2-inch setup is better when towing and factory-like geometry matter most. A well-supported 2.5-inch setup is better when a near-level stance and 35-inch-class tire fitment are the primary objectives.
Track-bar position should be checked after installation.
Best 2019 F250 Leveling Kit
The best 2019 F250 leveling kit follows much the same logic as 2017 and 2018.
MAXRACING provides a conservative 2-inch route, while ReadyLIFT 66-2726 offers a more complete 2.5-inch solution.
If the truck already has aftermarket wheels, calculate tire clearance using the wheel’s actual offset rather than assuming that leveling alone guarantees fitment.
Best 2020 F250 Leveling Kit
For the best 2020 F250 leveling kit, measure axle position carefully after installation.
Certain later Super Duty configurations can respond differently to track-bar relocation hardware, so the final objective should be a centered axle and proper steering geometry rather than blindly installing every correction bracket simply because it is included.
A professional alignment is especially important.
Best Leveling Kit for 2021 F250
The best leveling kit for 2021 F250 owners is usually in the 2- to 2.5-inch range.
For a Power Stroke used for towing, I prefer preserving a little rake. For an unloaded daily driver with a 35-inch tire goal, a complete 2.5-inch package becomes more attractive.
Tremor owners should use Tremor-specific fitment guidance rather than standard F-250 recommendations.
Best Leveling Kit for 2022 F250
When selecting the best leveling kit for 2022 F250, first determine whether the truck has the standard suspension or Tremor package.
On a standard 4WD truck, ReadyLIFT 66-2726 remains my primary recommendation when 2.5 inches is appropriate. MAXRACING is the more conservative choice when I want less geometry change.
Best Leveling Kit for 2023 F250
The best leveling kit for 2023 F250 must account for the newer Super Duty generation and its available electronic equipment.
Trucks equipped with the applicable Onboard Scales/automatic headlamp-leveling system can require additional ride-height-related hardware.
I would choose a kit explicitly confirmed for the 2023 generation rather than relying on older cross-year assumptions.
Best Leveling Kit for 2024 F250
For the best leveling kit for 2024 F250, I would begin with ReadyLIFT 66-2726 if the truck is a compatible standard 4WD configuration and the owner wants approximately 2.5 inches.
If preserving more rake is important, a verified 2-inch current-generation kit is the better route.
Check Tremor status, factory rear-block height, Onboard Scales equipment, headlight-leveling requirements, and wheel specifications before installation.
Best Leveling Kit for 2025 F250
The best leveling kit for 2025 F250 should be a current-generation product with explicit year compatibility.
I would not assume that a kit advertised primarily around 2011–2022 trucks is ideal simply because mounting points appear similar.
For a standard 4WD truck, the ReadyLIFT 66-2726 remains the most complete option in this comparison when its application requirements are met. Owners wanting a less aggressive stance should stay around 2 inches.
Installation Considerations
Measure Before Disassembly
Record front and rear hub-to-fender measurements.
These numbers give you an objective baseline for the final stance.
Support the Truck Correctly
An F-250 is heavy.
Use lifting equipment and jack stands with appropriate load ratings and position them according to safe service procedures.
Watch Brake and ABS Wiring
As the axle droops during installation, brake hoses and sensor wiring can become tensioned.
Never allow the axle to hang by flexible lines.
Check Spring Position
Coil springs and spacers must be correctly seated.
Misaligned springs can create noise or unsafe loading.
Torque Suspension Hardware Correctly
Some suspension fasteners should be final-torqued at normal ride height to avoid preloading bushings.
Follow the vehicle and kit instructions rather than using generic torque assumptions.
Get an Alignment
An alignment is part of the leveling installation, not an optional extra.
Caster, camber where adjustable, toe, and steering-wheel position need verification.
Check Headlight Aim
Raising the front points the headlights upward.
Even if the truck does not have an automatic system, manual headlight aim should be checked.
Reinspect the Hardware
Follow the kit manufacturer’s fastener recheck schedule after the suspension has gone through initial heat cycles and road use.
Common F250 Leveling Kit Mistakes
Choosing Height Without Measuring Rake
The badge on the fender does not tell you how much leveling lift the truck actually needs.
Measure first.
Assuming 3 Inches Is Better Than 2
More height means larger changes to steering and suspension geometry.
Choose the minimum height that accomplishes your goal.
Ignoring the Track Bar
A solid-front-axle F-250 depends on the track bar to locate the axle laterally.
Check axle centering after the lift.
Skipping Caster Measurement
A truck can have a centered steering wheel and still lack adequate caster.
Alignment numbers matter.
Using a Steering Stabilizer to Hide Worn Parts
A stabilizer can improve steering control, but it cannot repair loose ball joints, track-bar joints, or tie rods.
Forgetting About Towing Rake
A perfectly level empty truck may sit nose-high under trailer load.
Build around how the truck is actually used.
Assuming Every 35-Inch Tire Fits
Wheel offset, width, tire construction, and actual diameter can completely change clearance.
Treating Tremor Like a Standard F250
The factory suspension baseline is different.
Use a kit specifically appropriate for the Tremor configuration.
Ignoring 2023+ Electronic Equipment
Ride-height changes can affect systems that reference vehicle position.
Verify option-specific requirements before installation.
Frequently Asked Questions
What is the best leveling kit for F250 Super Duty trucks?
The ReadyLIFT 66-2726 is my primary choice for compatible 4WD F-250 Super Duty trucks.
Its 2.5-inch front lift is supported by a track-bar relocation bracket, shock extensions, sway-bar spacers, and spring-isolation components. That makes it more comprehensive than a basic pair of coil spacers. However, owners who tow heavily may prefer a 2-inch level that preserves more factory rake.
What size leveling kit is best for an F250?
A 2- to 2.5-inch front level is the most practical range for many F-250 trucks.
Two inches is my preferred compromise for work trucks and tow vehicles because it reduces rake without eliminating all of it. A 2.5-inch kit works well when the truck has enough measured factory rake and the owner wants a near-level stance. Three inches requires greater attention to geometry.
Is a 3-inch leveling kit too much for an F250?
Three inches can work, but it deserves more suspension correction than a moderate spacer level.
At 3 inches, track-bar angle, caster, shock travel, sway-bar position, brake-line slack, and steering geometry all become more important. I would treat a 3-inch setup as a small suspension lift rather than a purely cosmetic spacer installation.
Do I need a track-bar bracket after leveling an F250?
It becomes increasingly useful as lift height increases and the front axle shifts laterally.
The track bar moves through an arc, so raising the chassis can pull the axle away from its original centered position. At 2.5 inches and above, I strongly prefer measuring axle position and using a relocation bracket or adjustable track bar when correction is needed.
Do I need an alignment after installing an F250 leveling kit?
Yes, a professional alignment should be part of every F-250 front leveling installation.
Changing ride height affects steering and suspension geometry. Caster and toe are particularly important to highway stability and tire wear. The steering wheel may also need recentering. Driving long distances before alignment can accelerate tire wear or make handling less predictable.
Can I fit 35-inch tires on a leveled F250?
Yes, many properly configured leveled F-250s can run 35-inch tires.
A 2.5-inch level commonly provides enough body clearance for suitable 35-inch combinations, but lift height alone does not guarantee fit. Wheel offset, wheel width, backspacing, actual tire width, tread shape, and model-year body clearance all influence rubbing.
Does a leveling kit increase F250 ground clearance?
It increases chassis clearance, but differential clearance increases only when taller tires are installed.
The front axle and differential remain the same distance from the wheel center after a spacer is added. Raising the chassis improves bumper, frame, and approach clearance. A taller tire is required to physically raise the differential farther from the ground.
Will leveling an F250 affect towing?
It changes unloaded stance but does not increase or automatically reduce the truck’s rated capacities.
The main practical issue is rear sag. Removing all factory rake can cause the truck to look nose-high when trailer tongue or fifth-wheel pin weight compresses the rear suspension. Frequent towers may be happier with a moderate level that retains some rake.
Does a leveling kit increase F250 payload?
No, a leveling kit does not increase the truck’s certified payload or axle ratings.
Suspension height changes do not rewrite GVWR, GAWR, tire ratings, wheel ratings, or other vehicle limits. Rear helper springs or airbags can improve loaded stance but likewise do not legally increase the truck’s rated payload.
Will a leveling kit cause death wobble?
A properly installed leveling kit does not automatically cause death wobble, but it can expose existing problems.
Loose track-bar joints, worn ball joints, poor caster, damaged steering linkage, wheel imbalance, and other front-end issues can contribute to severe oscillation. Inspecting and correcting wear before leveling is much more effective than trying to mask it with a steering stabilizer.
Will a leveling kit make my F250 ride rougher?
A basic spacer normally retains the factory spring rate, so ride changes can be relatively small.
The original coils are still carrying the truck. However, suspension angles, available droop, shock position, and alignment change. A properly engineered system with suitable shock travel generally behaves better than an excessively tall spacer installed without supporting corrections.
Is 2 inches enough to level an F250?
Two inches substantially reduces factory rake on many F-250s and is often enough for a balanced stance.
It may leave approximately half an inch or more of rake on trucks that start particularly high in the rear. I consider that a benefit for towing and payload use. Measure the truck before deciding whether you actually need 2.5 inches.
Can I level an F250 Tremor with a standard kit?
Do not assume a standard F-250 leveling kit will produce the correct result on a Tremor.
Tremor trucks begin with a different factory suspension height and component setup. Some conventional kits are excluded from Tremor fitment, while others produce less net lift than on a standard truck. Use current Tremor-specific compatibility information before ordering.
What should I know before leveling a 2024 or 2025 F250?
Verify the suspension package, rear-block height, electronic options, and auto-leveling headlight requirements first.
The newest Super Duty generation can include equipment affected by ride-height changes. Trucks with certain Onboard Scales configurations may require additional headlight-leveling hardware. Tremor trucks also need separate consideration. Current-generation compatibility is more important than assuming an older kit still fits.
Should I replace the shocks when installing a leveling kit?
Not always, but the shocks must have enough travel for the new ride height.
Some leveling systems use extensions so factory shocks can remain. If the original dampers are worn, leaking, or high-mileage, installing properly sized replacement shocks during the leveling job can be more efficient. Never let the shock become an unintended suspension travel limiter.
Are aluminum or steel leveling spacers better?
Both materials can work well when the spacer is properly engineered and manufactured.
Billet aluminum is light and naturally corrosion resistant. Coated steel and cast-steel spacers are extremely strong and well suited to heavy trucks. Design, fit, coating quality, hardware, and correct installation matter more than choosing a material by name alone.
How long does an F250 leveling kit last?
A quality spacer can last for years, but surrounding suspension components still require regular inspection.
The spacer itself has few wear mechanisms, but ball joints, track-bar joints, shocks, tie rods, bushings, and tires remain service items. Check the system periodically and re-torque applicable hardware according to the kit’s instructions.
Can I install an F250 leveling kit myself?
An experienced DIY mechanic can, but Super Duty suspension components are heavy and highly torqued.
Proper lifting equipment, high-capacity jack stands, torque tools, and suspension knowledge are necessary. Track-bar brackets and spring work can involve substantial loads. Even after a successful home installation, professional alignment is still necessary.
Conclusion
Finding the best leveling kit for F250 Super Duty trucks is ultimately about matching front lift to the truck’s generation, measured rake, suspension condition, tire plan, and real workload.
The ReadyLIFT 66-2726 remains my primary recommendation for compatible 4WD trucks because its 2.5-inch lift is supported by a track-bar relocation bracket, shock extensions, sway-bar spacers, and other components that acknowledge how raising a solid-front-axle Super Duty changes geometry.
The MAXRACING 2-Inch Suspension Leveling Kit is the alternative I prefer for daily drivers, work trucks, and tow vehicles where retaining some functional rear rake matters. The MZS 3-Inch Front Leveling Kit suits buyers who want a more aggressive stance, but I would pair that height with a careful evaluation of caster, axle centering, shock travel, and steering geometry.
Model year remains critical. A 2012 or 2015 F-250 has different buying considerations from a 2024 or 2025 truck equipped with modern ride-height-related electronics, and Tremor models require their own fitment checks.
Measure your truck before ordering, select the smallest lift that meets your actual goal, verify wheel and tire dimensions, and include a professional alignment in the installation plan.
For the broadest combination of stance, tire clearance, and suspension correction, I would start with the ReadyLIFT 66-2726 and verify its exact configuration against the specific F-250 before installation.
