Finding the best coil packs for 5.3 Vortec engines is more complicated than choosing the highest-output set you can find. GM used several ignition-coil designs across 5.3L V8 applications, and two trucks with the same engine displacement can require different coils because of model year, engine generation, connector design, mounting bracket, VIN code, and original coil shape.
That matters because the familiar GM 5.3L family includes engines found in Silverado, Sierra, Tahoe, Suburban, Yukon, Avalanche, Escalade, Express, Savana, and related vehicles. Early Vortec-based trucks commonly used remote individual coils with short spark-plug wires, but D585/UF262 round coils, D581-style coils, and later D510C/UF413 designs should not be treated as one universal part.
My primary recommendation is the Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8 for compatible later Vortec-era 5.3L applications using the 12570616/12611424-style square coil. It offers a complete eight-coil replacement and covers many common GM truck and SUV applications when the original part number and coil design match.
For an earlier 5.3 Vortec equipped with round D585/UF262 coils, I would choose the B4B BANG 4 BUCK D585 UF262 8-Coil and Spark Plug Wire Set. It combines eight round coils with a full wire set, making it particularly useful when both the original coils and aging plug wires are being serviced.
I would also consider the NPAUTO Round Ignition Coil Pack Set of 8 when its listed application, connector, and physical coil configuration match the vehicle. It provides another full-set solution for a range of compatible GM V8 applications.
Before ordering any of these, look under the hood and identify what is actually installed. Matching the original coil style, interchange number, connector, mounting position, and engine application is more important than color, advertised voltage, or performance language.
Best Coil Packs for 5.3 Vortec: 7 Options
| Image | Product Name | Check Price |
|---|---|---|
Best Choice | Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8 | Check Price |
Second Best | B4B BANG Ignition Coils and 8mm Wire Set | Check Price |
Third Choice | NPAUTO Round Ignition Coil Pack Set of 8 | Check Price |
 | AA Ignition Ignition Coil Pack Set of 8 | Check Price |
 | HAYIAUTO D585 UF262 Coil, Plug, and Wire Kit | Check Price |
| CarBole Round Coil and 8mm Spark Plug Wire Set | Check Price |
 | AIP Electronics Dragon Fire Ignition Coil Set | Check Price |
1. Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8
Key Features
- Complete set of eight ignition coils
- Replaces common references including 12570616, 12611424, D510C, and UF413
- Intended for numerous compatible GM 5.3L and 6.0L V8 applications
- Direct-replacement mounting concept
- Three-terminal square-style coil configuration
- Designed for coil-near-plug GM ignition systems
- Suitable for replacing an entire aging eight-coil set
- Broad truck and SUV application coverage when part numbers match
The Yikesai 12611424 set takes the first position because it addresses a large portion of later 5.3 Vortec buyers while providing all eight coils in one package. For a truck that originally uses the 12570616/D510C/UF413 family, a complete matched set is often more convenient than purchasing individual replacement coils one at a time.
The 5.3 Vortec uses an individual-coil ignition arrangement rather than one old-fashioned distributor coil serving every cylinder. Each cylinder effectively has its own coil, allowing the engine control module to control ignition events with much greater precision.
That architecture also means one defective coil can create a cylinder-specific misfire without necessarily affecting the remaining seven cylinders.
A full eight-pack such as this makes sense when several original coils are aging, when the engine has very high mileage, or when previous repairs have left the truck with a mixture of different inexpensive replacement coils.
However, I would not automatically replace eight functioning factory coils just because one cylinder develops a misfire. Diagnosing the problem first remains important.
Before blaming the coil, inspect or test:
- Spark plug condition
- Plug-wire connection where applicable
- Electrical connector
- Coil power and ground
- Injector operation
- Compression
- Vacuum leaks
- Harness damage
If swapping the suspected coil to another cylinder causes the misfire code to follow it, that provides much stronger evidence that the coil itself is defective.
Fitment is the major issue with this product. References such as D510C and UF413 are helpful because they provide a better identification method than simply searching for “5.3 coil packs.”
A vehicle being equipped with a 5.3L V8 does not guarantee this coil style.
Many earlier 5.3 engines used a different round heat-sink-style coil, while later generations can use another ignition-coil configuration entirely. Compare the original coil shape and number before ordering.
The Yikesai set is best treated as a factory-style replacement set rather than a horsepower modification.
A healthy replacement coil may restore:
- Smooth idle when an old coil is failing
- Reliable combustion under acceleration
- Consistent starts
- Correct cylinder firing
- Normal power that was lost because of a misfire
It should not be expected to create a dramatic horsepower increase on an otherwise healthy factory ignition system.
Installation is generally straightforward on a correctly matched application. The coils mount around the valve-cover area, but access, harness clips, engine covers, intake ducting, and plug-wire routing vary by vehicle.
When replacing all eight, I recommend working one cylinder at a time. Doing so reduces the possibility of connecting the wrong coil or plug wire.
What I Like
- Complete eight-coil replacement set
- Useful D510C/UF413 interchange references
- Good fit for many compatible later Vortec-era applications
- Eliminates the need to mix several replacement coil brands
- Straightforward direct-replacement approach
What I Do Not Like
- Will not fit every 5.3 Vortec
- A complete set is unnecessary when only one verified coil has failed and the others remain healthy
- Correct identification is essential because several GM coil styles look broadly similar
Verdict
I recommend the Yikesai set first for a compatible 5.3 Vortec that uses the 12570616, 12611424, D510C, or UF413-style coil. It offers a practical full-engine replacement while retaining a factory-style installation approach.

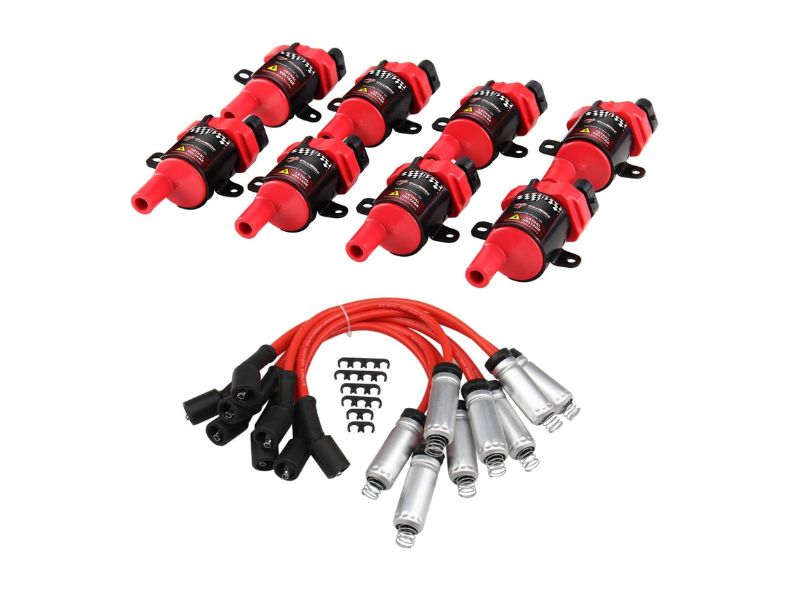

2. B4B BANG Ignition Coils and 8mm Wire Set
Key Features
- Eight D585/UF262 round ignition coils
- Eight 8 mm spark-plug wires
- Includes wire separators
- Intended for compatible GM V8 truck applications
- Cross-references D585 and UF262 coil families
- Round heat-sink-style construction
- Plug-in installation on correctly matched applications
- Useful complete ignition refresh for older 5.3 Vortec engines
The B4B BANG 4 BUCK kit is my preferred alternative for an earlier 5.3 Vortec that actually uses the familiar D585/UF262 round truck coil.
The most useful feature is that this is more than an eight-coil package. It also includes eight spark-plug wires.
That combination makes sense on older Vortec trucks because the coils sit near the valve covers and send spark energy to the plugs through short high-tension leads. Even if a coil is functioning correctly, an aged plug wire can develop excessive resistance, damaged insulation, burned boots, loose terminals, or heat-related deterioration.
Replacing both components together removes more of those potential failure points.
The D585 is easily recognized by its rounder body and external heat-sink-style construction compared with some square GM coil designs.
Recognition by appearance is useful, but I would still verify the part number.
Some GM vehicles changed coil designs across production years, and previous owners may also have performed coil swaps. A truck currently wearing a certain style of coil does not always prove it left the factory that way.
Another benefit is the complete set format. A V8 requires eight coils, so replacing everything simultaneously gives you consistent components across both banks.
The included plug wires also remove the need to reuse hardened originals when their condition is questionable.
The manufacturer markets increased spark energy, but I would approach percentage-based performance claims cautiously.
Ignition performance depends on more than coil output. The system includes:
- PCM dwell strategy
- Battery and charging voltage
- Coil windings
- Spark-plug wire resistance
- Spark-plug gap
- Cylinder pressure
- Air-fuel mixture
- Engine load
If your original coils already fire the plugs cleanly under full load, installing replacement coils will not automatically create significant horsepower.
Where a healthy ignition upgrade becomes more meaningful is an engine experiencing spark blowout, deteriorated coils, insulation breakdown, or marginal ignition under high cylinder pressure.
For the typical naturally aspirated 5.3 Vortec owner, reliability and correct fitment matter more than chasing the largest voltage claim.
The included 8 mm leads deserve attention during installation. Keep the boots fully seated and route the wires away from exhaust manifolds or headers. A new plug wire can still fail prematurely if its insulation rests against a high-temperature exhaust surface.
What I Like
- Eight coils and eight plug wires in one package
- Correct format for many D585/UF262 applications
- Useful when refreshing an older ignition system comprehensively
- Wire separators help keep the installation organized
- Well suited to high-mileage Vortec trucks with aging secondary-ignition parts
What I Do Not Like
- Round coils cannot simply replace every square-coil application
- Performance percentages should not be interpreted as guaranteed horsepower gains
- Additional components make careful wire routing important
Verdict
I would choose this kit for an early 5.3 Vortec when I have verified that the engine uses round D585/UF262 coils and the spark-plug wires are old enough to justify replacement. The combination of eight coils and eight wires makes it one of the most complete options in this guide.

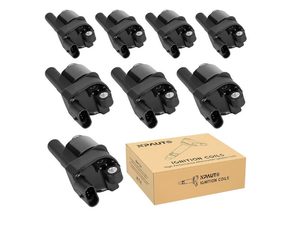

3. NPAUTO Round Ignition Coil Pack Set of 8
Key Features
- Complete eight-coil package
- Round ignition-coil configuration
- Intended for selected GM V8 truck, SUV, and van applications
- Bolt-on replacement design
- Covers compatible 4.8L, 5.3L, and 6.0L applications
- Designed to replace aging or malfunctioning individual coils
- Vehicle-specific installation concept
- Suitable for full-bank or full-engine servicing when correctly matched
The NPAUTO set is another useful choice for drivers who prefer replacing all eight coils at once, but its broad application range makes verification especially important.
Do not select it based solely on the words “5.3L” in a compatibility list.
GM produced several 5.3L engines during the years commonly associated with these trucks. Coil shape, electrical connector, mounting arrangement, and calibration can differ.
The right procedure is to compare:
- Vehicle year
- Exact model
- 8th VIN character when required
- Original coil shape
- Electrical connector
- Coil mounting
- Interchange number
If those details correspond, the installation should be much more predictable.
This set is particularly attractive for a vehicle showing multiple ignition-coil problems. For example, a high-mileage truck may develop one failed coil, followed by another months later because all eight original components have experienced roughly the same heat cycles and operating hours.
Replacing all eight can reduce repeated labor.
That said, replacing parts without diagnosis is never ideal.
A 5.3 Vortec misfire can be caused by ignition, fueling, air, valvetrain, or mechanical problems. Codes such as P0300 indicate random or multiple-cylinder misfire but do not automatically diagnose the coil.
A cylinder-specific code such as P0304 narrows the problem to cylinder four, but the root cause could still be:
- Spark plug
- Coil
- Plug wire
- Injector
- Wiring
- Compression
- Valve or lifter problem
The coil-swap diagnostic test is useful on these engines. Move the suspected coil to another cylinder while leaving other variables controlled. If the misfire follows the coil, the evidence becomes much stronger.
Construction quality matters because ignition coils operate next to a hot engine and endure continuous vibration. Epoxy insulation, winding consistency, terminal quality, and housing integrity all affect service life.
The NPAUTO set is therefore best considered a broad replacement solution rather than a universal performance modification.
What I Like
- Eight coils in one package
- Useful for a full ignition-coil refresh
- Covers numerous compatible GM V8 applications
- Bolt-on design simplifies installation when fitment is correct
- Provides another option for owners who prefer one matched set
What I Do Not Like
- Broad year coverage increases the importance of exact verification
- Coil shape alone should not be used as the only fitment test
- Does not include new plug wires
Verdict
I would consider the NPAUTO eight-pack when its exact application data matches the truck and I want a complete set rather than individual coils. It is a sensible replacement-oriented option, but I would verify the original coil and interchange number before purchase.

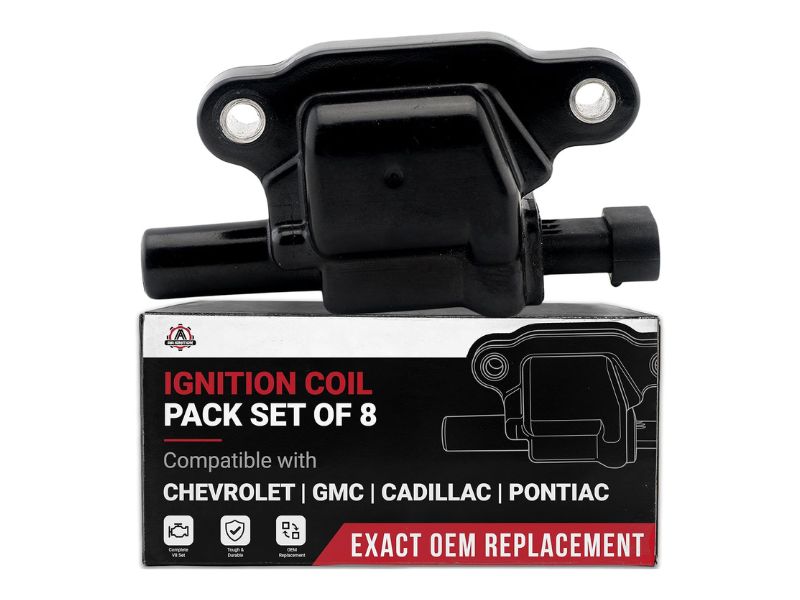

4. AA Ignition Ignition Coil Pack Set of 8
Key Features
- Eight ignition coils
- Cross-references 12570616 and D510C
- Intended for compatible GM 5.3L and 6.0L V8 engines
- Direct replacement format
- Suitable for Silverado, Tahoe, Yukon, and related applications when matched
- Complete V8 coil set
- Factory-style connector and mounting concept
- Designed for restoring normal ignition operation
The AA Ignition set is a strong alternative to the Yikesai package for vehicles using the D510C/12570616 family.
The value of the clear interchange number cannot be overstated.
Broad descriptions such as “fits Chevy 5.3” are convenient for searching, but an interchange number gives you something specific to compare with the coil already on the engine or the correct catalog information for the vehicle.
For a V8 engine, a full set contains eight coils. This makes the kit convenient during a larger maintenance job that already includes spark plugs, wires where applicable, valve-cover servicing, or other work requiring access around the coil brackets.
The coils are individual. If one fails later, the remaining cylinders continue to have their own coils, although the PCM may reduce power or flash the check-engine light if misfire becomes severe enough to threaten the catalytic converters.
That flashing check-engine light deserves attention.
A persistent misfire can allow unburned fuel and oxygen to reach the catalytic converter, creating very high temperatures. Continuing to drive aggressively with a severe misfire can therefore turn a relatively straightforward ignition repair into a much more expensive exhaust-system problem.
The AA Ignition set is aimed at replacement rather than extreme performance.
For most stock 5.3 Vortec trucks, that is exactly what I prefer.
The factory ignition system is already capable of reliably firing the plugs when all components are healthy. Restoring that function is generally more important than installing a coil advertised with an extreme voltage number.
Pair the coils with the correct spark plug type and gap specified for your exact engine. An excessively large gap increases firing-voltage demand and can stress the coil and wire insulation.
Also inspect the plug boots carefully. A new coil cannot compensate for a terminal that is loose, corroded, contaminated, or not fully seated.
What I Like
- Complete set of eight
- Helpful 12570616/D510C cross-reference
- Appropriate for many compatible later Vortec applications
- Factory-style replacement approach
- Good option when replacing several aging coils simultaneously
What I Do Not Like
- Fitment remains specific despite the broad vehicle family
- Plug wires and spark plugs are not included
- Provides little reason to replace healthy coils if only one has been conclusively diagnosed as faulty
Verdict
The AA Ignition set is a practical factory-style choice for compatible D510C/12570616 applications. I would select it when accurate interchange-number matching matters more to me than performance-oriented marketing.

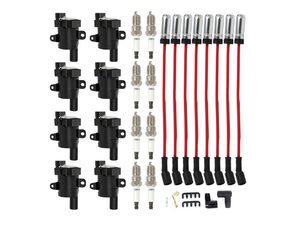

5. HAYIAUTO D585 UF262 Coil, Plug, and Wire Kit
Key Features
- Eight D585/UF262 round coils
- Eight 8 mm spark-plug wires
- Eight spark plugs
- Wire separators included
- Complete tune-up-oriented ignition package
- Bolt-on application
- Intended for compatible Chevrolet and GMC V8 engines
- Suitable for older 5.3 Vortec applications requiring the D585 configuration
The HAYIAUTO package is the most comprehensive maintenance kit on this list because it combines eight ignition coils, eight spark-plug wires, and eight spark plugs.
That can be convenient for a high-mileage Vortec receiving a major ignition service.
The advantage of changing related components together is diagnostic simplicity. A weak spark can originate from more than the coil itself. The coil has to send energy through the plug wire and across the spark-plug gap.
An aged wire with excessive resistance or a worn plug requiring higher firing voltage can make an otherwise adequate coil appear weak.
Replacing the entire secondary ignition path reduces the number of old components left in the system.
However, complete kits also create an additional responsibility: every included component must be correct for your engine.
Spark plugs deserve particular scrutiny. The correct plug involves more than thread diameter.
You should verify:
- Thread size
- Reach
- Seat style
- Heat range
- Electrode design
- Resistor specification
- Required gap
- Compatibility with the cylinder head and engine calibration
Never install a plug simply because it came packaged with the coils.
The D585/UF262 coil style is another point requiring confirmation. This is the round truck-coil architecture, so it is most appropriate for a vehicle already using that type.
If your engine has square D510C/UF413 coils, buying this kit solely because both descriptions mention “5.3L” is a mistake.
The 8 mm plug wires should be routed carefully around exhaust manifolds and headers. On some modified vehicles, aftermarket headers place the primary tubes closer to the plug boots than the factory manifolds did.
In those cases, additional heat protection or a correctly angled boot may be necessary.
For a stock vehicle with correct fitment, the kit provides an efficient way to refresh three major ignition components in one service.
I would still diagnose mechanical misfires before ordering. A collapsed lifter, burned valve, injector problem, or low-compression cylinder will not be repaired by replacing coils and plugs.
What I Like
- Includes coils, wires, and plugs
- Convenient for comprehensive ignition maintenance
- D585/UF262 format is clearly identified
- Wire separators help with routing
- Reduces the number of old secondary-ignition components remaining after service
What I Do Not Like
- Every included part must be independently verified for exact engine compatibility
- More components increase installation work
- Not appropriate for square-coil applications
Verdict
I would choose the HAYIAUTO kit for a compatible D585-equipped 5.3 Vortec undergoing a complete tune-up rather than a single-coil repair. Verify the spark-plug specification and coil style before installation.
6. CarBole Round Coil and 8mm Spark Plug Wire Set
Key Features
- Eight round D585/UF262-style coils
- Eight 8 mm spark-plug wires
- Designed around compatible GM truck V8 applications
- High-temperature-resistant coil housing construction
- Complete two-component ignition refresh
- Cross-references common D585-related numbers
- Suitable for several early Vortec truck and SUV applications
- Requires round-versus-square coil verification
The CarBole package follows a similar strategy to the B4B kit by pairing eight D585-style coils with eight spark-plug wires.
It is particularly relevant for earlier 5.3 Vortec trucks where the original round truck coils and plug wires are both aging.
One thing I appreciate about this type of kit is that it forces attention onto the complete secondary ignition circuit rather than focusing only on the coil.
Between the coil and combustion chamber, spark energy has to pass through several interfaces:
Coil tower → wire terminal → conductor → plug boot → spark-plug terminal → electrode gap
Any poor connection along that path can create resistance, heat, arcing, or intermittent misfire.
Visible inspection is worthwhile during installation.
Look for:
- White or gray carbon tracking
- Black burn marks
- Green terminal corrosion
- Hardened boots
- Cracked wire insulation
- Oil contamination
- Loose coil terminals
Oil around the plug area should be investigated rather than simply cleaned away. On some engine configurations, valve-cover or gasket leakage can contaminate ignition components.
As with the other D585 kits, the primary caution is fitment.
The fact that D585 coils have earned a strong reputation in the LS community does not mean every 5.3 Vortec should be converted to them.
Switching between GM coil families may involve different brackets, plug-wire lengths, electrical characteristics, and calibration considerations.
For a stock repair, matching what the engine was designed to use is generally the simplest approach.
The manufacturer describes the kit as providing increased spark output. I would treat that as secondary to proper compatibility.
A higher theoretical coil capability only matters when the operating conditions actually require additional ignition energy. On a properly functioning stock engine, replacing healthy factory coils is unlikely to transform performance.
Where the package has practical value is restoring a deteriorated ignition system.
What I Like
- Complete eight-coil and eight-wire package
- Well suited to verified D585/UF262 applications
- Allows plug wires and coils to be serviced simultaneously
- Useful for older trucks where heat and age have affected multiple ignition components
What I Do Not Like
- Requires careful round-versus-square verification
- Does not include spark plugs
- Performance claims should not replace proper diagnosis
Verdict
The CarBole package is a useful alternative for an early 5.3 Vortec that already uses D585/UF262 round coils. I would choose it when I specifically want to replace both coils and plug wires during the same repair.
7. AIP Electronics Dragon Fire Ignition Coil Set
Key Features
- Set of eight performance-oriented ignition coils
- Square coil configuration
- Replaces 12611424 and 12570616 applications
- Direct-replacement installation concept
- Performance-grade copper winding construction
- Epoxy-filled internal design
- Intended for selected compatible GM V8 applications
- More performance-oriented than basic replacement sets
The AIP Electronics Dragon Fire set is the option I would consider for an enthusiast who wants a more performance-focused replacement while still retaining a direct-fit format.
The critical references here are 12611424 and 12570616. Those numbers place the coils in the same broad fitment family as several D510C/UF413-style replacements in this guide.
That makes the Dragon Fire set potentially useful for a modified 5.3 Vortec when its exact application is confirmed.
A performance ignition coil can make more sense when cylinder pressure is significantly higher than stock.
Examples include an engine using:
- Forced induction
- Nitrous oxide
- High compression
- Large plug gaps
- Aggressive calibration
- High engine speed
- Significant airflow modifications
As cylinder pressure rises, the voltage required to ionize the spark-plug gap can also rise. A marginal ignition system may start misfiring under heavy load even though it idles normally.
That is one situation where additional ignition capability can have practical value.
For a completely stock naturally aspirated truck, however, I would not automatically spend more for a performance-oriented coil simply to gain horsepower.
An ignition coil cannot increase cylinder airflow, add fuel, alter compression, or change camshaft timing.
Its job is to create a reliable spark at the correct moment.
If the original ignition already accomplishes that consistently, horsepower gains from replacing healthy coils may be small or nonexistent.
Construction quality is therefore more important to me than flashy performance language. Copper winding quality, epoxy insulation, thermal resistance, connector integrity, and consistent manufacturing all affect whether the coil survives underhood temperatures and vibration.
The Dragon Fire set ranks seventh primarily because its performance focus is less necessary for the broad stock-Vortec audience than a straightforward replacement package. For the right modified truck, however, it may be a more appropriate choice than several products ranked above it.
What I Like
- Complete set of eight performance-oriented coils
- Useful 12570616/12611424 references
- Direct replacement concept for compatible applications
- More relevant to modified engines with increased ignition demands
- Epoxy-filled construction is appropriate for a high-vibration environment
What I Do Not Like
- More performance capability is unnecessary for many stock trucks
- Exact coil-family compatibility remains essential
- Performance coils cannot compensate for incorrect tuning or mechanical problems
Verdict
I would reserve the Dragon Fire set for a compatible application where I specifically want a performance-oriented replacement. Stock daily drivers are usually better served by correct fitment and dependable factory-style ignition components.
Comparison of the 7 Coil Packs
| Product | Coil Family / Style | Quantity | Wires Included | Plugs Included | Typical Application Focus | Installation | Main Strength | Main Limitation |
| Yikesai 12611424 D510C UF413 Set | D510C / UF413 square style | 8 | No | No | Compatible later Vortec-era GM V8s | Direct replacement | Broad practical full-set replacement | Not for D585 applications |
| B4B BANG 4 BUCK D585 Kit | D585 / UF262 round | 8 | Yes | No | Earlier compatible GM truck V8s | Plug-in/bolt-on | Coils and wires together | Round style only |
| NPAUTO Round Coil Pack | Round application-specific style | 8 | No | No | Selected GM V8 applications | Bolt-on | Complete matched coil set | Exact application must be checked |
| AA Ignition D510C Set | D510C / 12570616 style | 8 | No | No | Compatible 5.3L/6.0L GM V8s | Direct replacement | Clear interchange references | No wires or plugs |
| HAYIAUTO D585 Complete Kit | D585 / UF262 round | 8 | Yes | Yes | Early compatible Vortec V8s | Bolt-on | Most complete tune-up package | Every component needs fitment verification |
| CarBole D585 Coil & Wire Set | D585 / UF262 round | 8 | Yes | No | Early compatible GM truck V8s | Direct replacement | Refreshes coils and wires | Not universal across 5.3 engines |
| Dragon Fire DFC1007R Set | 12570616 / 12611424 square style | 8 | No | No | Compatible stock or modified GM V8s | Direct replacement | Performance-oriented construction | Extra capability unnecessary for many stock engines |
The comparison shows why there is no single ignition-coil set that fits every 5.3 Vortec. The Yikesai and AA Ignition sets target the 12570616/D510C/UF413 family, while the B4B, HAYIAUTO, and CarBole kits focus on D585/UF262 round-coil applications.
The safest purchase is therefore the product whose coil style and interchange number match the engine already in your vehicle.
How I Would Choose Coil Packs for a 5.3 Vortec
My first priority is always compatibility.
I would check the vehicle information in this order:
- Model year
- Exact model
- Engine size
- Engine or VIN code when applicable
- Original coil shape
- Original coil part number
- Connector arrangement
- Mounting bracket
- Spark-plug wire length and boot style
Once those factors match, I would compare construction, included components, warranty considerations, and whether I need one coil or an entire eight-pack.
For a stock daily-driven truck, I prefer a dependable factory-style replacement.
For a modified engine operating under significantly higher cylinder pressure, a properly matched performance coil can become more relevant.
Understanding 5.3 Vortec Coil Types
D585 / UF262 Round Truck Coil
The D585 is one of the best-known GM truck coils.
It has a distinctive round body with an external heat-sink-type section. Many earlier 4.8L, 5.3L, and 6.0L truck applications used this style.
Common cross-reference terminology includes:
- D585
- UF262
- 10457730
- 19005218
If your truck uses this configuration, choose a D585-compatible replacement rather than assuming a later square coil will bolt directly in.
D581-Style Square Coil
The D581 is another GM coil family found on various earlier truck applications.
It differs physically from the D585, including mounting considerations.
This distinction is why looking at a generic 5.3 Vortec compatibility list is not enough.
D510C / UF413 / 12570616-Style Coil
Many later Vortec-era GM V8 applications use the coil family commonly associated with references such as:
- D510C
- UF413
- 12570616
- 12611424
These are represented by several products in this guide.
Again, verify the exact engine rather than assuming every later 5.3 uses the same part.
What About 2014 and Newer 5.3L Engines?
This is a common source of buying mistakes.
The 2014-and-newer GM 5.3L truck engines belong to the newer EcoTec3/Gen V family rather than being the same classic 5.3 Vortec architecture covered by many D585 and UF413 products.
Do not automatically purchase an older Vortec coil set for a newer 5.3L simply because the engine displacement is identical.
How Ignition Coils Work on the 5.3 Vortec
An ignition coil transforms the vehicle’s relatively low system voltage into the much higher voltage needed to fire a spark plug.
Inside the coil are primary and secondary windings surrounding a magnetic core.
When current flows through the primary circuit, a magnetic field develops. The ignition electronics then interrupt that current at the correct moment.
The collapsing magnetic field induces a much higher voltage in the secondary winding.
That high voltage travels through the secondary connection and plug wire to the spark plug, where it jumps the electrode gap and ignites the compressed air-fuel mixture.
The 5.3 Vortec’s individual-coil layout provides a separate coil for each cylinder, which gives the engine-management system precise control over ignition timing.
Signs of a Bad Coil Pack on a 5.3 Vortec
Check-Engine Light
A misfire frequently triggers the malfunction indicator.
Codes may include a general P0300 random/multiple-cylinder misfire or a cylinder-specific code such as P0301 through P0308.
A code identifies where the PCM detected the misfire, not necessarily which component caused it.
Rough Idle
A dead or intermittently firing cylinder can make the engine shake at idle.
Hesitation Under Acceleration
Weak ignition may become more obvious under load because cylinder pressure increases the voltage required to fire the plug.
Loss of Power
A severely misfiring cylinder contributes little or no useful combustion energy.
Hard Starting
Multiple weak coils, fouled plugs, low battery voltage, or other ignition problems can make starting more difficult.
Flashing Check-Engine Light
A flashing malfunction indicator commonly signals a severe active misfire.
Reduce load and address the problem promptly because continued misfiring can overheat the catalytic converter.
How to Diagnose a Suspected Bad Coil
Read the Trouble Codes
Start with an OBD-II scan.
Suppose the PCM reports P0305.
That indicates a cylinder-five misfire, but it does not prove the cylinder-five coil is bad.
Inspect the Spark Plug
Remove and examine the plug.
Look for:
- Heavy deposits
- Oil fouling
- Damaged insulator
- Excessive electrode wear
- Incorrect gap
- Cracked ceramic
Inspect the Plug Wire
Check for burned boots, cracked insulation, loose ends, or excessive resistance.
Swap the Coil
Move the suspected coil to another cylinder.
Clear or monitor the codes and operate the engine appropriately.
If the misfire moves with the coil, the coil becomes a much stronger suspect.
Check the Electrical Circuit
If the misfire remains on the same cylinder, inspect coil power, ground, trigger wiring, connectors, injector function, and mechanical condition.
Perform Compression Testing When Necessary
A mechanically unhealthy cylinder cannot be repaired with an ignition coil.
Low compression may result from valve problems, ring wear, valvetrain failure, head-gasket issues, or other engine damage.
Should You Replace One Coil or All Eight?
You do not automatically need to replace all eight ignition coils when one fails.
Individual coils are replaceable separately.
Replacing one can be perfectly reasonable when:
- The failure is clearly diagnosed
- Other coils are performing correctly
- The truck is relatively low mileage
- The remaining coils are high-quality original components
- You want to minimize unnecessary parts replacement
Replacing all eight becomes more attractive when:
- Several coils have already failed
- The originals have very high mileage
- The engine has a mixture of unknown replacement brands
- Coil access overlaps with other planned maintenance
- You want one consistent replacement set
Do not throw away eight functioning high-quality coils merely because an inexpensive eight-pack exists.
Coil Packs vs. Spark Plug Wires
On many classic 5.3 Vortec applications, the ignition coil does not sit directly on the spark plug.
A short spark-plug wire connects the coil to the plug.
That wire is an important part of the ignition system.
High resistance or damaged insulation can cause:
- Misfire
- Weak spark
- Arcing
- Rough idle
- Failure under load
If you are installing new D585 coils on a high-mileage engine, inspect the wires carefully.
A complete coil-and-wire kit may make more sense than coils alone when the original wires are hardened, burned, or electrically degraded.
Choosing Spark Plugs With New Coils
New coils do not justify random spark plugs.
Use a plug specification appropriate for the exact engine and operating conditions.
Important factors include:
Heat Range
The heat range describes how effectively the plug transfers heat from its firing end into the cylinder head.
It does not describe how “hot” the spark is.
Plug Gap
A larger gap requires more firing voltage.
Increasing the gap beyond the engine’s requirements can increase stress on the ignition system and create misfire under high load.
Electrode Material
Common options include nickel, platinum, and iridium.
Material affects durability and electrode design, but the correct plug specification matters more than choosing a premium-sounding material.
Modified Engines
Forced-induction or heavily modified engines may require a different plug heat range or gap.
Follow the engine builder’s or tuner’s requirements rather than stock assumptions.
Are High-Performance Coil Packs Worth It?
For a stock, properly running 5.3 Vortec, high-performance coils are usually not a shortcut to large horsepower gains.
The factory-style ignition is capable of operating the engine when healthy.
An upgraded coil becomes more useful when the engine’s operating conditions exceed what the current ignition can reliably support.
That may include:
- Turbocharging
- Supercharging
- Nitrous oxide
- Elevated compression
- High boost pressure
- High RPM
- Aggressive plug gap
- Racing use
Even then, the ignition system must be treated as a complete package.
Coils, wiring, plugs, charging voltage, grounds, PCM dwell control, and tuning all matter.
What Makes a Good 5.3 Vortec Coil Pack?
Correct Fitment
This is the most important factor.
A beautifully constructed coil is useless if it does not match your ignition system.
Quality Windings
The internal copper windings must remain consistent and well insulated.
High-Quality Epoxy
Ignition-coil windings are typically encapsulated to insulate them electrically and protect against heat and vibration.
Secure Terminals
Loose or poorly constructed electrical connections create resistance and intermittent faults.
Heat Resistance
The coils live in a high-temperature engine compartment.
Vibration Resistance
Trucks subject ignition components to vibration, road shock, towing loads, and long operating cycles.
Accurate Mounting
The coil should bolt securely to the intended bracket without improvised spacers or stressed wiring.
Coil-Pack Installation Guide
1. Allow the Engine to Cool
Working around exhaust manifolds and cylinder heads while hot creates an unnecessary burn hazard.
2. Disconnect Power When Required
Follow the appropriate service procedure before working on electrical connectors.
3. Remove Necessary Covers or Intake Ducting
Access varies by vehicle.
4. Work One Cylinder at a Time
Disconnect one coil and plug wire, replace it, and then move to the next.
This minimizes routing errors.
5. Inspect the Connector
Do not install a new coil into a damaged electrical connector.
Look for:
- Broken locks
- Spread terminals
- Corrosion
- Heat damage
- Oil contamination
- Pulled wiring
6. Inspect the Plug Wire
Check the terminal and boot carefully.
7. Install the Replacement Coil
Secure it using the proper mounting hardware.
Avoid overtightening fasteners into brackets or aluminum components.
8. Seat the Electrical Connector Fully
A connector that looks attached but has not locked into position can create intermittent misfire.
9. Reconnect the Plug Wire
Make sure both ends seat positively.
10. Verify Wire Routing
Keep the lead away from exhaust heat and sharp edges.
11. Scan for Codes After Repair
Clear stored codes when appropriate and verify that the misfire does not return.
Maintenance Tips for 5.3 Vortec Ignition Coils
Ignition coils do not require routine internal maintenance, but surrounding components should be inspected periodically.
Keep Connections Dry and Clean
Moisture and corrosion can compromise high- and low-voltage connections.
Inspect Plug Wires
Pay attention to wires near exhaust manifolds.
Replace Spark Plugs at the Appropriate Interval
As plug electrodes wear, required firing voltage can increase.
Repair Oil Leaks
Oil contamination can deteriorate rubber boots and electrical connections.
Maintain the Battery and Alternator
Stable electrical supply helps the entire engine-management system function properly.
Repair Misfires Promptly
Do not continue driving for extended periods with an active severe misfire.
Common Mistakes When Buying Coil Packs for a 5.3 Vortec
Assuming Every 5.3 Uses the Same Coil
This is the biggest mistake.
GM produced multiple 5.3L engine generations and ignition configurations.
Buying by Color
Red, black, or another housing color does not define electrical compatibility.
Ignoring D585 vs. D510C/UF413
These coil families have different physical applications.
Replacing Coils Before Diagnosing the Engine
A misfire code does not automatically equal a bad coil.
Assuming Higher Voltage Means More Horsepower
A coil only needs sufficient capability to fire the spark plug reliably under operating conditions.
Reusing Damaged Plug Wires
A healthy coil connected to a defective wire can still misfire.
Installing the Wrong Spark-Plug Gap
Excessive gap increases firing-voltage demand.
Ignoring the Electrical Connector
Loose terminals and broken locks can create an intermittent problem that appears to be coil failure.
Mixing Up Plug-Wire Routing
Incorrect routing can create a no-start or severe misfire.
Buying 2014+ 5.3 Coils for an Older Vortec
Later EcoTec3 applications are not automatically interchangeable with earlier 5.3 Vortec ignition systems.
Frequently Asked Questions
What are the best coil packs for 5.3 Vortec engines?
The best coil packs are the ones that match your exact factory coil family and engine application.
For compatible D510C/UF413 engines, I prefer the Yikesai 12611424 set as the primary all-around replacement in this guide. For an earlier engine with D585/UF262 round coils, the B4B BANG 4 BUCK kit is a stronger fit because it includes eight correctly styled coils and new plug wires. Verify the original coil number and shape before ordering either.
How do I know whether my 5.3 Vortec has D585 or D510C coils?
Inspect the original coil shape and part number instead of relying on engine displacement alone.
D585 truck coils have a recognizable round/heat-sink-style body, while D510C/UF413-family coils use a different configuration. Vehicle year and VIN information can help, but visual and part-number confirmation is valuable because production changes and previous repairs can complicate fitment. Compare the original component with the replacement before installation.
Are D585 and D581 coils the same?
No, D585 and D581 coils are different GM ignition-coil designs.
They can have different housings, mounting requirements, and related installation hardware. Even when an electrical conversion is possible in a modified application, that does not make them direct bolt-in replacements. For normal maintenance, I prefer matching the coil family already specified for the engine.
Will performance coils add horsepower to a stock 5.3 Vortec?
Usually not if the existing ignition system already fires the spark plugs reliably.
A healthy stock ignition generally provides adequate spark energy for a factory engine. Performance coils become more useful when modifications such as boost, nitrous, increased compression, or high RPM increase ignition demand. Replacing a weak coil can restore lost power, but that is different from adding power beyond the engine’s normal capability.
Should I replace all eight coils at the same time?
No, replacing all eight is optional unless multiple coils are failing or a complete refresh makes practical sense.
One conclusively failed coil can be replaced individually. A complete set becomes more attractive on a high-mileage engine where several coils have failed, where unknown replacement coils are mixed together, or where you are already performing extensive ignition maintenance.
Can a bad coil cause a P0300 code?
Yes, but a P0300 code does not prove an ignition coil is defective.
P0300 indicates random or multiple-cylinder misfire. Potential causes include coils, plugs, wires, injectors, fuel pressure, vacuum leaks, wiring, compression problems, or valvetrain faults. Diagnose the affected cylinders and ignition components before purchasing parts.
Can a bad coil damage the catalytic converter?
A persistent severe misfire can overheat and damage the catalytic converter.
When combustion does not occur correctly, unburned fuel and oxygen can enter the exhaust. The converter may then become excessively hot. A flashing check-engine light is particularly important and should not be ignored. Avoid heavy driving until the cause of the misfire has been diagnosed.
Do 5.3 Vortec coil packs need spark-plug wires?
Many classic Vortec-era 5.3 applications use short wires between the individual coils and spark plugs.
The exact configuration depends on the engine generation and coil system. If your engine uses plug wires, inspect them whenever the coils or plugs are serviced. Burned boots, excessive resistance, or damaged insulation can cause a misfire even when the ignition coil itself is healthy.
How can I test whether a 5.3 ignition coil is bad?
Moving the suspected coil to another cylinder is one of the most useful practical diagnostic checks.
If a cylinder-specific misfire follows the coil after the swap, the coil is strongly implicated. If the misfire stays on the original cylinder, investigate the spark plug, wire, injector, electrical circuit, compression, and valvetrain. Diagnostic procedures should be appropriate for the exact engine.
Can I install D585 coils on an engine that originally has another style?
A conversion may be possible on some LS-based applications, but it is not always a direct swap.
Different coils can require different mounting brackets, plug-wire lengths, and other changes. Ignition-control characteristics may also differ. For a stock maintenance repair, matching the original coil family is normally simpler and less risky than converting to another design.
Does coil-pack color matter?
No, housing color does not determine ignition-coil compatibility or performance.
Red, black, or other colored housings are primarily visual differences unless a manufacturer uses color to distinguish a specific model. Use part numbers, connector design, mounting, electrical compatibility, and verified vehicle fitment when selecting a coil.
Can old spark plugs make ignition coils fail?
Worn or excessively gapped plugs can increase the voltage demand placed on the ignition system.
As the spark-plug gap grows through electrode wear, the coil may need to produce more voltage to initiate the spark. Maintaining the correct plugs and gap therefore reduces unnecessary ignition stress and helps prevent misfire.
Why does my 5.3 misfire only under acceleration?
Higher cylinder pressure under load increases the demand placed on the ignition system.
A marginal coil, plug wire, or spark plug may function acceptably at idle but fail when accelerating, towing, or climbing a grade. Fuel-delivery and mechanical problems can create similar symptoms, so ignition should be tested rather than assumed.
Are cheap eight-pack coil sets worth buying?
They can be useful, but manufacturing consistency and long-term durability matter more than the low cost of the complete set.
A complete set is attractive when several old coils need replacement. However, replacing a functioning high-quality original component with an uncertain replacement can sometimes create more problems than it solves. Diagnose the engine first and prioritize correct fitment and dependable construction.
Is the 2014-and-newer 5.3L the same ignition system as the older 5.3 Vortec?
No, newer 5.3L EcoTec3 engines should not automatically be treated as classic Vortec 5.3 applications.
The newer engine family uses different technology and can require different ignition components. Always search by exact model year, engine, VIN or RPO information, and original coil part number rather than assuming compatibility based on the 5.3L displacement.
Conclusion
Choosing the best coil packs for 5.3 Vortec engines starts with identifying the ignition system already installed on your vehicle. A product marketed for a 5.3L V8 is not automatically correct because GM used multiple coil designs across different engine generations and applications.
For a compatible engine using the D510C/UF413/12570616-style configuration, the Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8 remains my primary recommendation. It provides a complete eight-coil replacement and suits buyers who want to refresh the entire ignition-coil set with one matched package.
For an earlier Vortec using round D585/UF262 coils, the B4B BANG 4 BUCK D585 UF262 Coil and Wire Set is the alternative I would choose. Including eight new plug wires makes it especially useful on older, high-mileage trucks.
The NPAUTO and AA Ignition sets provide additional factory-style replacement options, while the HAYIAUTO and CarBole packages make sense when related ignition components also need attention. The Dragon Fire set is more appropriate when a compatible modified engine has greater ignition demands.
Before buying, verify the model year, VIN or engine code when applicable, original coil shape, interchange number, connector, mounting arrangement, spark-plug wire configuration, and plug specification.
Correct compatibility should always come before advertised voltage or performance claims.
