Finding the best coil packs for 2005 Ford F150 5.4 is mostly about choosing the correct coil-on-plug design and avoiding low-quality replacements that can turn one misfire problem into another. The 5.4L Triton V8 uses eight individual ignition coils, one for each cylinder, so coil condition directly affects starting, idle quality, throttle response, combustion, and misfire behavior.
My primary recommendation is the Motorcraft DG511 Ignition Coil for owners who prioritize factory-style fit, dependable construction, and the closest replacement approach to the original ignition system. It is sold as an individual coil, so it also makes sense when diagnosis points to only one or two failed units rather than a complete set.
For buyers who want to replace all eight coils at once without buying eight individual factory-style coils, I would consider the ENA Set of 8 Straight Boot Ignition Coil Packs. It is designed around the DG511-style application and provides a practical full-set replacement for an aging ignition system.
The Marsram FD508/DG511 Set of 8 Ignition Coil Packs is another full-set option worth considering when you want eight direct-fit-style coils in one package.
The biggest compatibility point is the coil configuration. The 2005 F-150 5.4L application uses a coil-on-plug (COP) system and is associated with the straight black-boot DG511-style coil. Do not select a coil simply because a listing says it fits a Ford 5.4L engine. Ford used different coil designs across different years and engine families, so matching the correct part style matters.
3 Best Coil Packs for 2005 Ford F150 5.4
| Image | Product Name | Check Price |
|---|---|---|
Best Choice | Motorcraft DG511 Ignition Coil | Check Price |
Second Best | ENA Set of 8 Straight Boot Ignition Coil Packs | Check Price |
Third Choice | Marsram FD508/DG511 Set of 8 Ignition Coil Packs | Check Price |

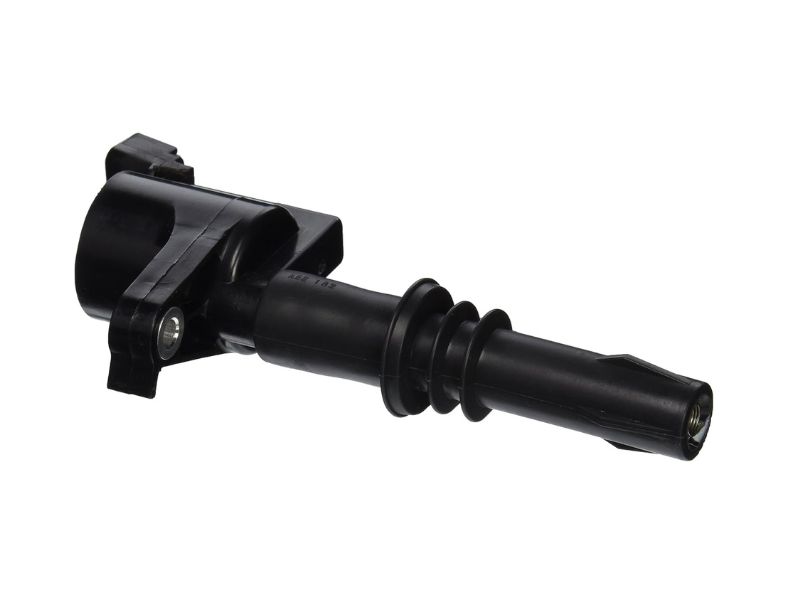

1. Motorcraft DG511 Ignition Coil
Key Features
- Direct-fit coil-on-plug ignition coil
- Designed for the DG511-style 5.4L application
- Corresponds with 3L3Z-12029-BA
- Straight black coil boot configuration
- Internal insulation designed to resist arcing
- Laminated steel magnetic core construction
- Built to tolerate engine-bay temperature changes
- Sold as an individual ignition coil
The Motorcraft DG511 is the option I would choose first for a mostly stock 2005 Ford F-150 5.4L when reliability and correct factory-style fit matter more than buying the least expensive complete set.
The 5.4L Triton in this truck uses eight coil-on-plug ignition coils. Instead of one central coil supplying several cylinders through long spark plug wires, each cylinder has its own coil mounted directly above the spark plug. This reduces the high-voltage path between coil and plug but places each coil in a hot, vibration-prone environment on the engine.
That environment makes coil construction important.
The DG511 is built for its intended application rather than being a broadly marketed universal replacement. Correct connector alignment, boot length, mounting location, and internal electrical characteristics all matter because a physically similar coil is not necessarily the correct coil for the engine.
Motorcraft uses internal insulation intended to reduce unwanted arcing. This matters because an ignition coil generates very high secondary voltage. If that voltage finds an easier route through damaged insulation, carbon tracking, moisture, or a deteriorated boot, the spark may discharge somewhere other than across the spark plug gap.
A consistent magnetic field is also central to ignition-coil operation. Current through the coil’s primary winding builds magnetic energy, and interrupting that current allows the coil to generate the high voltage required to fire the spark plug. The DG511’s internal construction is intended to deliver the output required by the original ignition system rather than advertise unrealistic aftermarket voltage claims.
That distinction is useful for a stock F-150.
A healthy replacement ignition coil does not need exaggerated promises of dramatic horsepower gains. Its real job is to restore reliable spark when the original coil has deteriorated. If an old coil has been causing a misfire, hesitation, poor idle, or incomplete combustion, replacing it with the correct functioning coil can restore lost performance. It should not be treated as a stand-alone performance modification.
The DG511 is particularly attractive when only one cylinder has a confirmed coil problem. If a scan tool identifies a cylinder-specific misfire, you can often move the suspected coil to another cylinder and see whether the misfire follows it. When it does, replacing that individual coil is often more sensible than automatically replacing every coil.
On a high-mileage engine with eight original coils of similar age, replacing more than one may still be reasonable depending on their condition and your maintenance strategy. The downside is that buying eight individual factory-style coils can cost considerably more than purchasing a complete aftermarket eight-pack.
Another reason I rank the DG511 first is fitment confidence. The 2005 5.4L requires attention to the straight black-boot coil style. Different Ford modular engines and production periods used coils that may look similar in photographs but are not interchangeable simply because they are used on another 4.6L or 5.4L application.
Installation is relatively straightforward once the coil is accessible. Disconnect the electrical connector, remove the retaining bolt, lift the coil and boot from the spark plug well, inspect the well for moisture or contamination, and install the replacement carefully. Access to rear cylinders can be tighter than access to the front coils, so patience matters.
I would also inspect the spark plug and surrounding plug well before blaming the coil alone. Oil, coolant, water, carbon tracking, a deteriorated boot, or excessive spark plug gap can increase the voltage demand placed on the ignition coil. Installing a new coil without correcting the underlying issue can lead to another misfire.
What I Like
- Correct DG511-style design for the targeted 5.4L application
- Strong choice when factory-style fit and reliability are priorities
- Available individually for cylinder-specific repairs
- Avoids unnecessary performance claims and focuses on proper ignition function
What I Do Not Like
- Replacing all eight individually can be expensive compared with full aftermarket sets
- A new coil will not correct a worn, damaged, or incorrectly gapped spark plug
- Correct diagnosis is still necessary before replacing parts
Verdict
The Motorcraft DG511 is my primary recommendation for the 2005 F-150 5.4L because it provides the strongest balance of application-specific fit, factory-style construction, and confidence for a stock ignition system. I would especially choose it when one or a few coils have been properly diagnosed as faulty and you prefer replacing them individually rather than installing a complete aftermarket set.

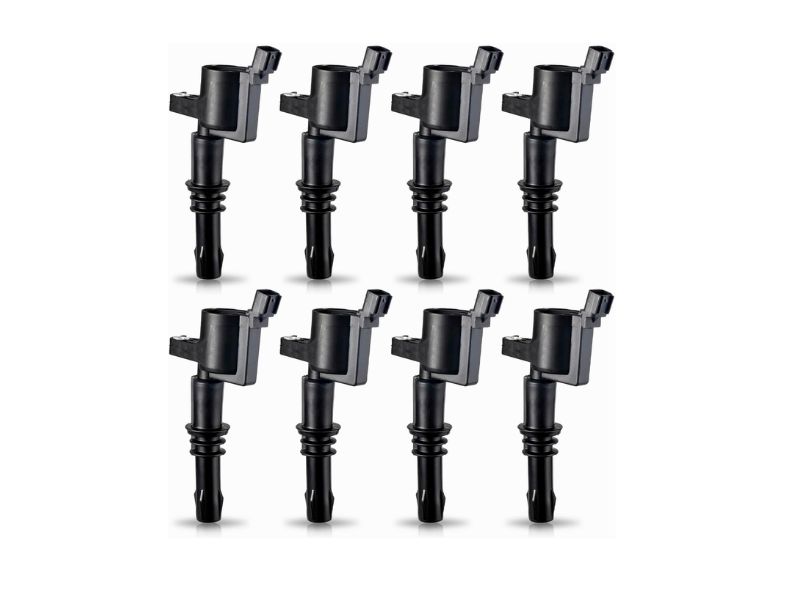

2. ENA Set of 8 Straight Boot Ignition Coil Packs
Key Features
- Complete set of eight ignition coils
- Straight black boot configuration
- Designed as a replacement for DG511 / FD508-style applications
- Bolt-on coil-on-plug layout
- Two-terminal electrical configuration
- Designed for 12-volt automotive ignition systems
- Suitable for replacing an entire aging set at once
- Direct-replacement-oriented design
The ENA eight-coil set takes a different approach from the Motorcraft DG511. Instead of paying for individual coils one at a time, you receive a complete set for all eight cylinders.
That makes it attractive on an older 5.4L Triton where several original coils have already begun failing or where the owner wants to refresh the entire set during a larger ignition-system service.
The 2005 F-150 5.4L has eight cylinders and therefore uses eight individual COP ignition coils. A complete eight-pack allows every cylinder to receive a coil of the same age and product family.
There are situations where that approach is convenient.
Suppose the truck has high mileage and has already experienced several unrelated coil failures over time. You could continue replacing one coil whenever a new misfire occurs, but some owners prefer to replace the remaining old coils proactively while the engine is already being serviced.
The ENA set is designed around the DG511/FD508 replacement configuration, including the straight boot style associated with this application.
Correct boot design deserves more attention than it usually gets.
The boot has to extend from the coil down the spark plug well and make reliable contact through its internal spring. If the boot length, shape, connector, or mounting geometry is wrong, the fact that the product is generically advertised for a 5.4L engine is irrelevant.
This is why I recommend matching the original configuration instead of shopping by displacement alone.
Another benefit of a complete set is consistency during installation. You are not mixing several brands, boot ages, and coil generations across the engine. Mixing compatible coils is not automatically a problem, but replacing all eight with the same design can simplify future maintenance records and diagnosis.
The biggest question with any lower-cost complete coil set is long-term durability compared with an OE-oriented individual replacement. Eight coils for the cost-conscious buyer can represent excellent practical value, but the economics are different from buying eight individual Motorcraft units.
I would therefore choose the ENA set primarily for an owner who wants a complete refresh and accepts that value is one of the major decision factors.
Installation still needs to be approached carefully. Before installing all eight coils, inspect each spark plug well. Water intrusion is especially worth checking because moisture around the boot can cause arcing and misfire symptoms.
Look closely at the electrical connectors as well. Plastic connectors and seals become brittle as trucks age. A damaged connector can create an intermittent circuit that looks like a failed ignition coil.
The boot should sit fully over the spark plug. A small amount of appropriate dielectric grease can be used where specified around the inside of the boot opening to help reduce moisture intrusion and make future service easier, but the conductive spring and electrical contact still need proper physical engagement.
It is also important not to expect a full coil set to repair every P0300-series misfire automatically.
A misfire can result from spark plugs, fuel injectors, low compression, vacuum leaks, wiring faults, cam timing problems, or other engine-management issues. Replacing eight coils without diagnosis may be an expensive way to discover that the problem was somewhere else.
For a confirmed ignition-related issue involving multiple old coils, though, the ENA set offers a convenient complete-system approach.
What I Like
- Includes all eight coils needed for the V8
- Straight DG511-style configuration suits the targeted application
- Convenient for a complete ignition-coil refresh
- Can make more financial sense than buying eight individual premium coils
What I Do Not Like
- Replacing all eight is unnecessary if only one coil has failed and the others are healthy
- Long-term consistency is an important consideration with any value-oriented full set
- Installation will not solve misfires caused by plugs, injectors, wiring, or mechanical problems
Verdict
I would choose the ENA Set of 8 for a high-mileage 2005 F-150 5.4L when several aging coils need attention and replacing the entire set is more practical than purchasing individual coils. The Motorcraft DG511 remains my first choice for maximum factory-style confidence, but the ENA package provides a compelling full-set alternative.

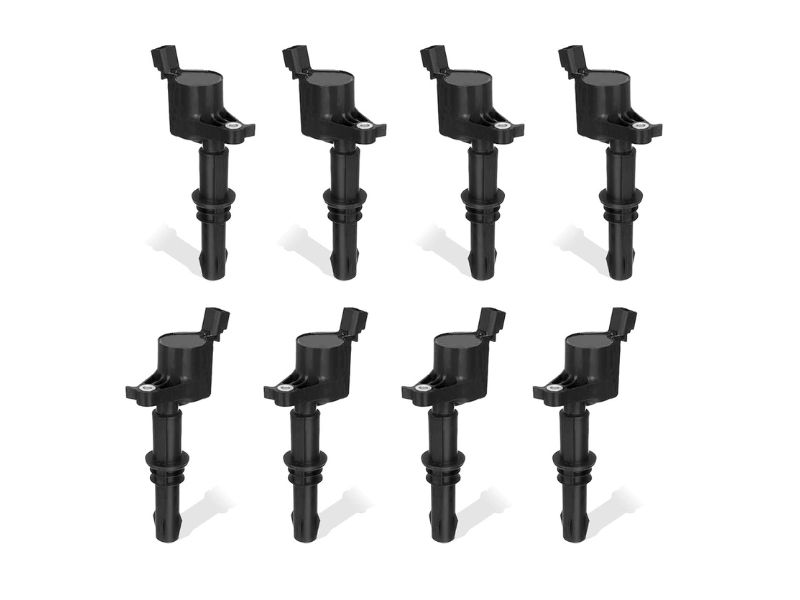

3. Marsram FD508/DG511 Set of 8 Ignition Coil Packs
Key Features
- Eight-coil replacement set
- Designed for DG511 / FD508-style fitment
- Straight coil-boot arrangement
- Bolt-on COP installation
- Engineered-plastic outer construction
- Epoxy-insulated internal coil assembly
- Copper winding construction
- Intended as a complete V8 replacement set
The Marsram FD508/DG511 eight-pack is another practical option when you want to replace all eight ignition coils rather than diagnose and purchase them one at a time.
Its appeal is similar to the ENA set: complete coverage of the V8 ignition coils in one package, straightforward replacement geometry, and an emphasis on the DG511-style Ford application.
Ignition coils have a demanding job.
The vehicle’s electrical system operates at relatively low voltage, while the spark plug requires far higher voltage to create an arc across its electrode gap. The ignition coil acts as a transformer, storing magnetic energy and converting the primary-side electrical event into a much higher secondary voltage.
Inside a COP coil are windings, insulating materials, a magnetic core, and high-voltage connections. The outer housing and internal epoxy also need to tolerate repeated heat cycles.
That matters on an older truck because the coils sit directly on the engine. Every drive cycle heats them up; after shutdown, temperatures change again. Over years, thermal cycling, vibration, moisture, and electrical stress can deteriorate insulation and boots.
The Marsram set uses an engineered-plastic exterior and epoxy around internal components, along with copper winding construction. Those are sensible materials for the application, but material descriptions alone should never be interpreted as proof that one replacement coil produces more useful engine power than another.
For a naturally aspirated stock 5.4L Triton, the goal is consistent ignition energy within the requirements of the engine management system.
A properly operating coil allows the spark plug to ignite the air-fuel mixture when commanded. Increasing advertised coil output beyond what the system requires does not automatically produce more horsepower or fuel economy.
That is one reason I prefer to judge replacement coils by correct fit, stable operation, insulation, heat resistance, connector quality, and reliability rather than eye-catching voltage or percentage-power claims.
The Marsram set works best as a full refresh option. If your F-150 has accumulated substantial mileage, still carries numerous old coils, and you would rather replace the set while servicing the ignition system, having eight matching coils is convenient.
It can also simplify troubleshooting later because you know when the entire set was installed.
Still, I would not automatically replace all eight merely because a diagnostic trouble code identifies one misfiring cylinder.
Start by reading the codes. A code such as P0304 indicates a misfire detected on cylinder 4, not necessarily a failed cylinder-4 ignition coil. Swapping that coil with a known-good cylinder and checking whether the misfire follows is a useful diagnostic strategy.
If the fault moves with the coil, the case for replacing that coil becomes much stronger.
If the misfire remains on the original cylinder, investigate the spark plug, injector, connector, wiring, compression, and other possible causes.
The same applies to rough idle. The 5.4L Triton has enough interacting systems that a rough idle should not automatically be blamed on ignition coils.
For buyers who have already determined that a full coil replacement is appropriate, the Marsram set is a reasonable alternative to the ENA kit. I place it third because the Motorcraft option provides stronger OE-oriented confidence and the ENA set is my preferred value-oriented eight-pack, but Marsram still covers the most important practical requirement: a complete DG511-style set for the targeted 5.4L application.
What I Like
- Full set of eight coils for one-service replacement
- Appropriate straight-boot DG511/FD508-style configuration
- Construction focuses on heat-resistant plastics, epoxy insulation, and copper windings
- Convenient for aging trucks needing a complete coil refresh
What I Do Not Like
- Eight-coil replacement is unnecessary for many single-cylinder misfires
- Material or high-output marketing should not be confused with proven horsepower gains
- Correct plug, connector, and engine diagnosis remains essential
Verdict
The Marsram eight-pack makes sense for an owner seeking a complete set rather than individual replacement coils. I would place it behind Motorcraft for factory-style confidence and ENA for my preferred full-set balance, but it remains a relevant choice for replacing eight aging DG511-style coils together.
Comparison of Coil Packs for a 2005 Ford F150 5.4
| Product | Configuration | Quantity | Boot Style | Replacement Type | Best Use | Installation | Main Strength | Main Limitation |
| Motorcraft DG511 Ignition Coil | Coil-on-plug | 1 | Straight black boot | Factory-style individual coil | Replacing confirmed failed coils | Bolt-on | Fitment and OE-oriented confidence | Eight-coil replacement becomes costly |
| ENA Set of 8 Straight Boot Ignition Coil Packs | Coil-on-plug | 8 | Straight boot | Full replacement set | Refreshing an aging set | Bolt-on | Complete eight-coil package | Full replacement may be unnecessary |
| Marsram FD508/DG511 Set of 8 | Coil-on-plug | 8 | Straight boot | Full replacement set | Complete V8 coil replacement | Bolt-on | Convenient matched set | Less reason to buy if only one coil is bad |
The central choice is whether you need one replacement coil or eight.
If diagnosis identifies one failed coil and the others are operating normally, the Motorcraft DG511 is the option I prefer. It allows you to repair the confirmed problem without replacing seven serviceable components.
If several old coils have already failed or you have decided to refresh the complete set, the ENA and Marsram eight-packs make the job easier because all eight coils are included.
Understanding the 2005 Ford F150 5.4 Ignition System
The 2005 Ford F-150 5.4L Triton uses a coil-on-plug ignition system.
There are eight cylinders and eight ignition coils. Each coil mounts over its respective spark plug and is controlled electronically.
This architecture eliminates the traditional distributor and long high-voltage spark plug wires used in older ignition systems.
A COP system has several advantages. Short secondary connections reduce the distance high voltage has to travel, individual cylinder control is possible, and ignition timing can be managed accurately by the powertrain control system.
The disadvantage is that there are more individual ignition components.
Instead of one coil failing and affecting the entire engine, one COP unit can deteriorate and produce a single-cylinder misfire. This is why codes in the P0301 through P0308 range are useful starting points during diagnosis.
However, those codes identify the cylinder where the computer detects a misfire. They do not explicitly state that the ignition coil is defective.
DG511 Fitment Matters
One of the easiest mistakes when shopping for a 5.4L Ford coil pack is assuming every Ford 5.4 coil is interchangeable.
It is not.
The targeted 2005 F-150 5.4L application uses the DG511-style straight black-boot coil, associated with the 3L3Z-12029-BA design.
Other Ford modular-engine applications use different coil designs, including coils commonly referenced under other Motorcraft numbers.
A product may mention 4.6L, 5.4L, Ford, Lincoln, or several model years in its compatibility information. That alone does not guarantee correct fit.
Verify:
- Model year
- F-150 model
- 5.4L V8 engine
- Original coil shape
- Connector configuration
- Boot style
- Replacement part-number family
Matching the original coil visually is also useful, especially if the truck has had engine or ignition work performed previously.
Should You Replace One Coil Pack or All Eight?
There is no universal requirement to replace every ignition coil whenever one fails.
If one coil has clearly failed and the remaining seven are functioning correctly, replacing the failed coil is a valid repair approach.
This is especially attractive when using a higher-cost factory-style replacement.
Replacing all eight becomes more reasonable when the truck has high mileage, most coils are original, multiple coils have already failed, the boots are deteriorated, or you want to refresh the ignition system during planned maintenance.
There is also a labor consideration.
Some coils are easier to reach than others. If you are already performing a major service that exposes all eight coils, installing a complete set may save future labor.
On the other hand, preventive replacement does not guarantee that a cheaper eight-pack will last longer than healthy original coils.
I would base the decision on actual condition rather than a rule that says coils must always be replaced as a set.
Signs of a Bad Ignition Coil on a 5.4 Triton
A deteriorating ignition coil can cause several symptoms.
Engine Misfire
A misfire is one of the most common symptoms. You may notice shaking at idle, hesitation, uneven acceleration, or a flashing check-engine light.
Rough Idle
If one cylinder does not contribute consistently, the 5.4L V8 can feel noticeably uneven at idle.
Hesitation Under Load
An ignition coil may work adequately during light-load operation but struggle when cylinder pressure and spark demand increase. Misfires that appear while accelerating or climbing a hill deserve careful ignition-system diagnosis.
Check-Engine Light
Cylinder-specific misfire codes can help identify where to begin testing.
Remember that the code identifies a cylinder, not automatically a faulty coil.
Difficult Starting
Multiple weak ignition components can contribute to hard starting, although fuel supply, battery condition, sensors, compression, and other systems can create similar symptoms.
Reduced Engine Performance
A persistent misfire can reduce usable power because one or more cylinders are not producing normal combustion.
Do not continue driving aggressively with an active severe misfire. Unburned fuel entering the exhaust can overheat and damage the catalytic converter.
How to Diagnose a Bad Coil Before Replacing It
Replacing coils based only on symptoms can become expensive quickly.
Begin by reading stored diagnostic trouble codes.
If a cylinder-specific misfire is present, inspect that cylinder’s ignition coil, connector, boot, spark plug, and plug well.
One practical technique is the coil swap test.
Suppose the engine reports a cylinder-3 misfire. Move the cylinder-3 coil to another cylinder and move the known-good coil into cylinder 3. Clear the code when appropriate, operate the engine, and check whether the misfire moves.
If the new code follows the suspect coil, the coil becomes the likely culprit.
If the misfire remains at cylinder 3, investigate other causes.
A visual inspection can also reveal problems such as:
- Cracked coil housing
- Damaged rubber boot
- Carbon tracking
- Corroded spring
- Moisture in the spark plug well
- Oil contamination
- Broken electrical connector
- Damaged wiring
A dedicated ignition tester or oscilloscope can provide additional information when the fault is less obvious.
Spark Plug Condition Matters as Much as the Coil
An ignition coil does not operate independently from the spark plug.
As a spark plug wears and its effective gap increases, the coil must generate enough voltage to bridge that gap under cylinder pressure.
If the plug is badly worn, fouled, damaged, or incorrectly installed, replacing the coil alone may not solve the underlying problem.
The 5.4L 3-valve Triton also deserves extra care during spark plug service because early versions of this engine are well known for difficult spark plug removal.
Do not casually remove old plugs from this engine without understanding the proper service procedure.
The original plug design can become difficult to remove after extended service, and improper removal can cause the lower portion to remain stuck in the cylinder head.
If you are replacing plugs at the same time as the coils, use the appropriate removal procedure and tools.
Coil Boot and Spring Condition
The rubber boot between the ignition coil and spark plug is a critical part of the secondary ignition path.
A coil itself can be electrically healthy while a damaged boot causes the spark to leak to ground.
Look for:
- Cracks
- Burn marks
- Carbon tracks
- Hardened rubber
- Moisture
- Oil contamination
- Corroded internal springs
Carbon tracking often appears as a thin dark line where high voltage has repeatedly traveled across an insulating surface.
If the boot is damaged, replacing or servicing the boot may be necessary even if the coil body itself remains functional.
Heat Resistance and Insulation
Ignition coils on the 5.4L engine experience repeated heating and cooling cycles.
Internal windings and insulation need to tolerate those conditions without breaking down.
When insulation deteriorates, high voltage can arc internally or externally instead of reaching the spark plug correctly.
This is why build quality can matter more than dramatic advertised voltage claims.
For a normal street-driven F-150, I would prioritize:
- Quality insulation
- Correct winding construction
- Proper boot fit
- Strong electrical connections
- Heat-resistant housing
- Accurate vehicle fitment
Those characteristics contribute directly to reliable ignition.
Do High-Performance Coils Add Horsepower?
Healthy replacement coils generally restore lost ignition performance rather than create large horsepower gains on a stock engine.
If the original coils are weak and causing misfires, replacing them can restore power that the engine was no longer producing correctly.
That can feel like a significant improvement because the truck may idle more smoothly, accelerate better, and stop hesitating.
However, that is restored performance, not necessarily additional power beyond what the engine normally makes.
A stock 5.4L engine with healthy factory-spec ignition components does not automatically gain meaningful horsepower simply because replacement coils are advertised as producing dramatically more voltage.
Modified engines with increased cylinder pressure or unusual ignition requirements can have different needs, but that is a separate use case.
How to Replace Coil Packs on a 2005 Ford F150 5.4
Allow the engine to cool before beginning.
Disconnecting the battery may be appropriate depending on the service procedure and other work being performed.
Remove any intake ducting, covers, or components necessary to reach the coils.
Each coil has an electrical connector and retaining bolt. Release the connector carefully because old plastic locking tabs can become brittle.
Remove the retaining bolt and gently rotate or lift the coil to release its boot from the spark plug.
Inspect the removed coil and spark plug well before installing the replacement.
If you find water, oil, corrosion, or heavy contamination, determine where it came from before simply installing a new coil.
Compare the replacement coil with the original.
Check:
- Overall body shape
- Connector
- Mounting position
- Boot length
- Boot style
Push the replacement coil firmly over the spark plug so the spring and boot seat correctly.
Reinstall the retaining bolt to the appropriate service specification rather than overtightening it.
Reconnect the electrical connector securely.
After the repair, clear diagnostic codes when appropriate and verify that the misfire has been corrected.
Using Dielectric Grease Correctly
Dielectric grease can help protect the inside lip of the coil boot from moisture and make future removal easier.
However, more is not better.
Use only an appropriate small amount where recommended.
The goal is not to fill the entire boot with grease. Excess material can create a mess and make it harder to inspect the connection later.
Remember that dielectric grease is primarily an insulating and moisture-resistant compound. The spring still needs solid physical contact with the spark plug terminal.
Common Mistakes When Buying F150 5.4 Coil Packs
Buying by Engine Size Alone
A listing that mentions “Ford 5.4L” is not enough. Different years and applications can use different coils.
Verify the DG511-style configuration required for the specific truck.
Assuming Every Misfire Means a Bad Coil
Misfires can come from ignition, fuel, air, mechanical, or control-system problems.
Diagnose before replacing parts.
Choosing Based Only on Advertised Voltage
A very large voltage claim does not automatically mean the coil is better for a stock engine.
Correct electrical behavior and reliable construction matter more.
Ignoring Spark Plugs
A worn spark plug can place excessive demand on an otherwise functioning coil.
Ignoring Water in the Plug Wells
Installing new coils without correcting moisture intrusion can lead to repeated problems.
Damaging Electrical Connectors
Old connector tabs can become brittle. Do not force them.
Replacing All Eight Without Testing
A complete replacement can be reasonable, but it should be a deliberate maintenance choice rather than an automatic response to one trouble code.
Assuming New Parts Cannot Be Faulty
If a misfire appears immediately after service, do not rule out a connection problem, incorrect fitment, damaged boot, defective replacement part, or installation mistake.
Frequently Asked Questions
What are the best coil packs for 2005 Ford F150 5.4?
The Motorcraft DG511 is my primary choice for factory-style fit and dependable replacement.
The 2005 F-150 5.4L uses eight coil-on-plug units, and the DG511-style straight black-boot coil matches the targeted application. If you want to replace all eight coils together rather than purchase individual units, the ENA and Marsram eight-coil sets are practical alternatives. Always confirm the original coil design before installation.
How many ignition coils does a 2005 Ford F150 5.4 have?
The 5.4L V8 uses eight individual coil-on-plug ignition coils.
Each cylinder has its own ignition coil positioned over the spark plug. This design eliminates a conventional distributor and long spark plug wires. Because coils operate individually, one failed coil can produce a single-cylinder misfire while the remaining cylinders continue operating.
What Motorcraft coil fits the 2005 Ford F150 5.4?
The DG511 is the key Motorcraft coil reference for the targeted 5.4L application.
The corresponding factory-style part family includes 3L3Z-12029-BA. The coil uses the straight black-boot configuration associated with this 5.4L application. Verify the engine and original installed components before ordering, particularly when dealing with trucks that may have had previous engine or ignition-system changes.
Should I replace all eight coils at once?
No, replacing all eight is not mandatory when only one coil has failed.
If diagnosis confirms one failed coil and the others are operating properly, replacing only the failed unit is reasonable. A complete eight-coil replacement becomes more attractive on a high-mileage truck with aging original coils, repeated coil failures, deteriorated boots, or a planned comprehensive ignition refresh.
How do I know which ignition coil is bad?
A cylinder-specific misfire code combined with a coil swap test is a useful diagnostic method.
Move the suspected coil to another cylinder and see whether the misfire follows it. If the fault moves with the coil, the coil is strongly implicated. If the misfire remains on the original cylinder, inspect the spark plug, injector, wiring, connector, compression, and other possible causes.
Can a bad coil pack cause rough idle on a 5.4 Triton?
Yes, a weak or failed ignition coil can cause a noticeable rough idle.
A cylinder that fires inconsistently contributes less torque than the other seven cylinders, making the engine feel uneven. However, vacuum leaks, fuel-injector issues, spark plugs, compression problems, valve timing, and other faults can produce similar symptoms, so rough idle alone does not prove a coil is defective.
Can a bad coil pack cause a flashing check-engine light?
Yes, a severe active misfire can cause the check-engine light to flash.
A flashing warning generally deserves immediate attention because repeated misfires can allow unburned fuel into the exhaust system. That can raise catalytic-converter temperature and potentially cause expensive damage. Reduce load and diagnose the misfire rather than continuing normal hard driving.
Do new ignition coils improve fuel economy?
They may restore lost efficiency if defective coils were causing incomplete combustion or misfires.
Replacing healthy coils with different healthy coils should not be expected to create a dramatic fuel-economy increase. Any improvement is most likely when the old ignition system was no longer operating correctly. Fuel economy is also affected by plugs, injectors, sensors, tire pressure, driving style, gearing, load, and many other factors.
Are aftermarket coil packs okay for a 2005 F150 5.4?
Yes, a properly designed aftermarket coil can work well when fitment and construction are correct.
The important factors are matching the DG511-style application, using the correct straight boot and connector arrangement, and choosing a reputable product. For owners who prioritize factory-style replacement confidence, I prefer Motorcraft. Complete aftermarket sets are more attractive when replacing all eight coils economically.
Can I mix Motorcraft and aftermarket ignition coils?
Compatible ignition coils can generally operate together, but consistent fit and electrical behavior remain important.
There is no requirement that all eight coils carry the same brand name simply because one failed. If you are replacing individual coils, a correct-quality replacement can be used alongside healthy existing coils. If several coils are old or inconsistent, replacing the full set may simplify future maintenance.
How long do F150 5.4 ignition coils last?
There is no fixed mileage at which every ignition coil will fail.
Coil life varies with heat exposure, plug condition, moisture, electrical stress, manufacturing quality, and vehicle use. Some coils remain functional for many years, while others fail earlier. Diagnosing actual condition is more useful than replacing coils solely because the odometer reaches a particular number.
Can worn spark plugs damage ignition coils?
Worn plugs can increase ignition voltage demand and place additional stress on the coils.
As the effective spark gap increases, more voltage may be required to initiate the spark. Keeping plugs in proper condition reduces unnecessary ignition stress. On the 5.4L 3-valve engine, however, spark plug removal needs particular care because of the original plug design used in these engines.
What is the difference between DG511 and DG508 coils?
They represent different Ford ignition-coil applications and should not be treated as automatically interchangeable.
The targeted 2005 F-150 5.4L uses the DG511-style straight black-boot configuration. Other Ford modular-engine applications use different coil designs. Product descriptions sometimes list multiple interchange numbers broadly, so verify the actual year, engine, connector, boot shape, and factory part reference before installation.
Do ignition coils need programming after replacement?
No programming is normally required for a standard direct-replacement ignition coil.
After installing the correct coil, reconnect the electrical connector and complete the normal repair procedure. Diagnostic codes may need to be cleared, and the vehicle should be operated to confirm that the misfire is gone. If the fault returns, continue diagnosing rather than assuming programming is required.
Can I replace F150 ignition coils myself?
Yes, coil replacement is manageable for many DIY owners with basic mechanical skills.
The basic process involves gaining access, disconnecting the electrical connector, removing the retaining bolt, pulling the coil from the spark plug, and installing the replacement. Rear-cylinder access can be tighter, and brittle connectors require care. If you also plan to remove the original spark plugs, understand the special service concerns of the 5.4L 3-valve engine first.
Does a stronger ignition coil make the 5.4 Triton faster?
Not necessarily; a healthy stock ignition system already provides the spark the engine is designed to use.
A replacement coil can restore lost power if an old coil is misfiring. That does not mean an aggressively advertised “high-output” coil automatically adds horsepower to an otherwise healthy stock engine. Correct fit, consistent spark, insulation quality, and durability are more useful criteria for most F-150 owners.
Conclusion
Choosing the best coil packs for 2005 Ford F150 5.4 comes down to correct DG511-style fitment, dependable ignition performance, and deciding whether you need one coil or a complete set of eight.
The Motorcraft DG511 Ignition Coil remains my primary recommendation. It is the option I would choose for a stock truck when factory-style fit and replacement confidence matter most, particularly if diagnosis has identified only one or two failed coils.
The ENA Set of 8 Straight Boot Ignition Coil Packs is more practical when you intentionally want to refresh all eight coils at once. It provides a complete DG511-style set and avoids buying eight individual coils separately.
The Marsram FD508/DG511 Set of 8 fills a similar role and is another option for owners planning complete V8 coil replacement.
Whichever route you take, do not replace ignition coils blindly. Read the misfire codes, inspect the plugs and boots, check for moisture or connector damage, and use a coil swap test when appropriate.
For a confirmed single-coil failure, I would install the Motorcraft DG511. For an older truck where several coils are deteriorating and a complete refresh makes sense, I would choose the ENA eight-coil set while carefully verifying the straight black-boot configuration before installation.
