Finding the best coil packs for 5.4 F150 engines is not simply a matter of buying eight coils labeled for a 5.4L V8. The 5.4L Triton was used across different F-150 generations, and Ford changed ignition-coil designs during its production life. That makes the truck’s model year, coil boot style, connector, and OE reference numbers critical before ordering parts.
For many 2004–2008 Ford F-150 5.4L 3-valve Triton applications, the common replacement family is DG511, also cross-referenced as UF537, FD508, C1541, and 3L3Z-12029-BA. Later trucks can use a different coil design, so a DG511 set should never be purchased simply because the engine displacement is 5.4 liters.
My primary recommendation is the ENA Set of 8 Straight Boot DG511 Ignition Coil Packs. I prefer it for owners of compatible 2004–2008 5.4L F-150s who want a straightforward complete eight-coil replacement without paying for spark plugs they may not need.
I would consider the MAS Set of 8 DG511 Ignition Coils with Motorcraft Spark Plugs when the truck is due for both coil and spark-plug service. Combining eight straight-boot coils with eight plugs is particularly useful when you want to refresh the complete ignition system during one repair.
The BANG4BUCK Set of 8 DG511 Ignition Coils is another option for buyers specifically looking for a full set of aftermarket coils for a compatible 5.4L Triton.
Before ordering any of them, compare the coils already on your engine. Boot color, boot shape, connector style, OE number, and model year matter more than the words “5.4 F150” on a product description.
3 Best Coil Packs for 5.4 F150
| Image | Product Name | Check Price |
|---|---|---|
Best Choice | ENA Set of 8 Straight Boot DG511 Ignition Coil Packs | Check Price |
Second Best | MAS Set of 8 DG511 Ignition Coils with Motorcraft Spark Plugs | Check Price |
Third Choice | BANG4BUCK Set of 8 DG511 Ignition Coils | Check Price |

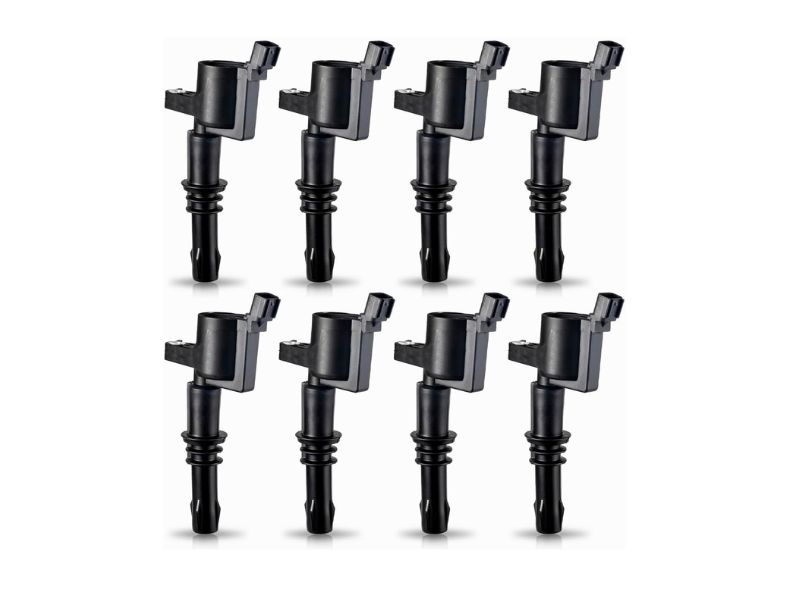

1. ENA Set of 8 Straight Boot DG511 Ignition Coil Packs
Key Features
- Complete eight-coil set for a V8
- Straight-boot coil-on-plug design
- Compatible with selected 2004–2008 F-150 5.4L applications
- Cross-references DG511, UF537, FD508, C1541, and C1659
- Cross-references OE number 3L3Z-12029-BA
- Vehicle-specific bolt-on installation
- Female electrical connector configuration
- Designed as an OE-style replacement rather than a universal coil
The ENA DG511 eight-pack is my primary recommendation because it provides the simplest combination of quantity, relevant fitment, and practical replacement value for owners of compatible 5.4L Triton F-150s.
The 5.4L V8 uses eight individual coil-on-plug ignition coils, so this package supplies one replacement for each cylinder. Unlike an older distributor ignition system, there is no single ignition coil responsible for all cylinders. Each coil sits directly over its spark plug and is electronically controlled by the engine-management system.
This architecture eliminates conventional high-voltage spark-plug wires, but it also means a truck has eight separate coils exposed to years of heat, vibration, moisture, and electrical stress.
The ENA set uses the straight-boot DG511 configuration found on many 2004–2008 5.4L F-150 applications. Relevant cross-reference numbers include DG511, UF537, FD508, C1541, and the Ford-style 3L3Z-12029-BA number.
Those numbers are useful when comparing the new parts against the original coils. I would still verify the truck by year and existing coil design rather than relying on cross-reference numbers alone.
Why replace all eight?
You do not necessarily have to. If a truck has one confirmed failed coil and the remaining seven are relatively new and in good condition, replacing only the defective unit can be perfectly reasonable.
A complete eight-pack becomes more attractive when the original coils have accumulated similar mileage and heat cycles. Once several coils begin failing within a relatively short period, replacing the entire group can reduce repeated diagnostic and repair work.
The ENA package is also convenient because it contains coils only. If your F-150 recently received the correct spark plugs, there is little benefit in buying another eight plugs simply because they are bundled with the coils.
From a performance standpoint, buyers should keep expectations realistic. A replacement coil cannot create substantial additional horsepower when the factory ignition system is already operating correctly.
Where new coils can make a noticeable difference is when old units have become weak or intermittent.
A weak 5.4 Triton coil may still fire normally at idle but begin misfiring when the engine is under load. Higher cylinder pressure during acceleration increases the voltage required to bridge the spark-plug gap. A marginal coil that survives light-load cruising can therefore stumble when towing, climbing a hill, or accelerating.
Symptoms may include rough idle, hesitation, loss of power, reduced fuel economy, and cylinder-specific misfire codes.
Installation is physically straightforward on the more accessible cylinders. Disconnect the electrical connector, remove the retaining fastener, lift the coil from the spark-plug well, and install the replacement.
Real-world access around the 5.4 Triton can make the job less convenient than that description sounds. Rear cylinders are tighter, hoses and wiring can obstruct access, and older electrical connectors may become brittle from years of engine heat.
The boot and plug well deserve inspection while each coil is removed. Moisture, coolant, oil, dirt, or carbon tracking can create a high-voltage leakage path. Installing a new coil without correcting the underlying contamination can lead to another misfire.
I also recommend inspecting the spark plugs before installing an entire new coil set. Excessive spark-plug gap increases firing-voltage demand, placing additional stress on the ignition coil.
If the plugs are already near their service interval, replacing them during the same repair may make more sense than asking new coils to operate over worn electrodes.
What I Like
- Supplies all eight coils needed for a complete V8 replacement
- DG511-style fitment matches many 2004–2008 5.4L F-150 applications
- Useful range of OE and aftermarket cross references
- Coil-only package works well when spark plugs are still serviceable
- Direct coil-on-plug layout avoids unnecessary conversion parts
- Suitable for addressing multiple age-related coil failures at once
What I Do Not Like
- Not appropriate for every model year of the 5.4L F-150
- Complete eight-coil replacement may be unnecessary for one isolated failure
- Spark plugs must be purchased separately when they are also due
Verdict
The ENA DG511 eight-pack offers the strongest overall balance for a compatible 2004–2008 5.4L F-150 when you want to replace the complete set of aging coils. I particularly like it when the spark plugs are already in good condition because you are not paying for another plug set unnecessarily.
Fitment remains essential. Confirm that your engine uses the straight-boot DG511-style coil before ordering.

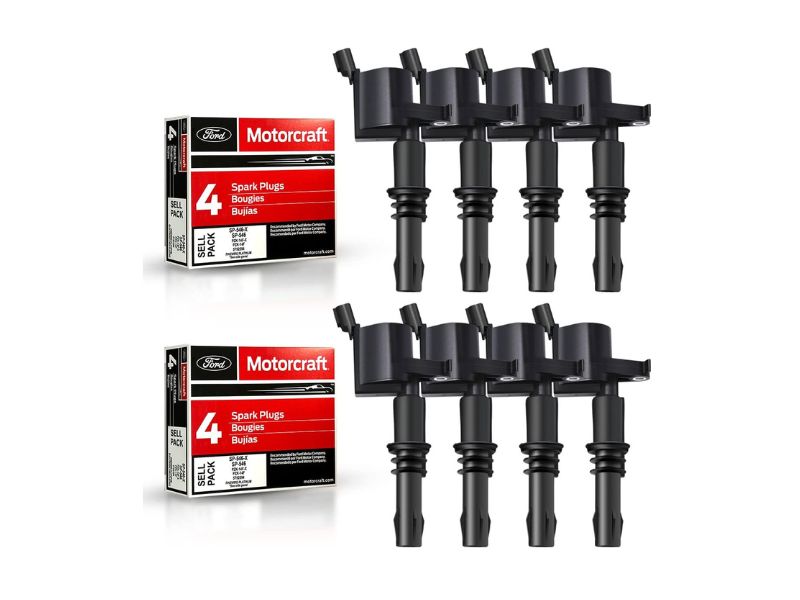

2. MAS Set of 8 DG511 Ignition Coils with Motorcraft Spark Plugs
Key Features
- Eight straight-boot ignition coils
- Eight Motorcraft spark plugs included
- Designed for compatible 5.4L Triton V8 applications
- DG511 coil configuration
- References UF537, FD508, C1541, and 3L3Z-12029-BA
- Bolt-on coil-on-plug installation
- Female connector configuration
- Complete ignition-service package
The MAS package takes a different approach by combining a full eight-coil set with eight Motorcraft spark plugs.
That makes it particularly useful when an older 5.4L F-150 is due for a comprehensive ignition service rather than a single-coil repair.
Ignition coils and spark plugs perform different jobs, but they work directly together. The coil stores and transforms electrical energy into the high voltage needed to jump the spark-plug gap. The plug then delivers that spark inside the combustion chamber.
When the electrode gap becomes excessive through wear, the ignition system requires greater voltage to fire the plug. This can expose marginal insulation or weak coils that previously seemed functional.
Replacing worn plugs and aging coils together therefore makes sense in certain situations.
The MAS coils use the familiar DG511 straight-boot layout, with references that include UF537, FD508, C1541, and 3L3Z-12029-BA.
The bundle is especially appealing if your truck still has an old set of coils and its spark plugs are due according to the correct maintenance schedule and service history.
There is an important caution with the 5.4L 3-valve Triton: spark-plug removal deserves careful attention.
These engines are well known among technicians for plug-service challenges on certain production years. Carbon accumulation around the extended plug shell can make removal difficult, and careless removal techniques can complicate an otherwise routine tune-up.
For that reason, I would not treat spark-plug replacement on an older 5.4 3V exactly like replacing plugs on a simpler engine.
Work on a suitable engine temperature, use the correct tools, and follow the appropriate service procedure for the plug design installed in your particular engine. If a plug does not loosen normally, forcing it is usually a poor strategy.
The included plug set also means buyers should verify plug compatibility separately from coil compatibility. A package can contain the correct DG511 coils while still requiring you to make sure the included plug part is correct for your exact engine configuration and production date.
When everything matches, however, the convenience is significant.
Instead of installing eight new coils over an old plug set and then reopening the engine compartment shortly afterward, you can service all sixteen ignition components in one session.
That can be especially attractive on a truck with uncertain maintenance history.
If you recently purchased a used F-150 and do not know when the plugs or coils were replaced, inspection can reveal whether a larger refresh is justified.
As with the ENA set, I would not choose this kit solely to gain horsepower. Healthy factory-spec ignition components already provide sufficient spark energy for a stock engine under normal operating conditions.
The meaningful improvement appears when deteriorated ignition components are responsible for misfire, hesitation, poor starting, or rough operation.
What I Like
- Includes all eight coils and eight spark plugs
- Useful for a complete ignition-system refresh
- DG511 configuration targets common 2004–2008 5.4L applications
- Reduces the need to order plugs and coils separately
- Makes sense when both component groups have accumulated substantial service time
- Helpful for trucks with uncertain maintenance history
What I Do Not Like
- More parts than necessary when the existing spark plugs are relatively new
- Spark-plug fitment should be verified independently
- Plug removal on certain 5.4L 3-valve engines requires extra care
Verdict
I would choose the MAS DG511 coil-and-plug package when the truck genuinely needs both ignition coils and spark plugs. It provides better service convenience than a coil-only package when performing a major tune-up.
For a truck whose plugs were recently replaced, however, the ENA set is the more focused option.

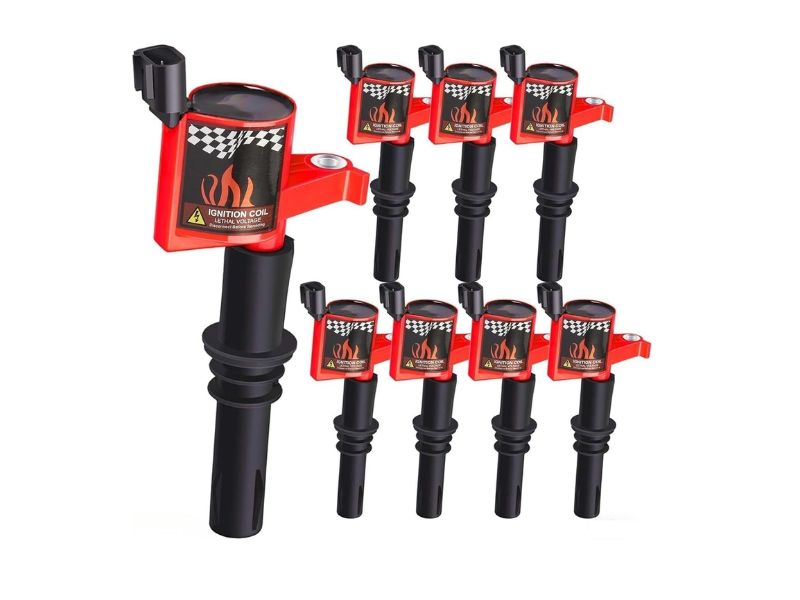

3. BANG4BUCK Set of 8 DG511 Ignition Coils
Key Features
- Eight ignition coils
- DG511 straight-boot configuration
- Intended for compatible 2004–2008 F-150 5.4L V8 applications
- Cross-reference to 3L3Z-12029-BA family
- Plug-in, vehicle-specific design
- Coil-on-plug replacement layout
- Full V8 replacement quantity
- Corrosion- and abrasion-conscious construction
The BANG4BUCK DG511 eight-pack is another option for owners looking for a full replacement set for a compatible 5.4L Triton.
Like the first two products, its most important feature is not an aggressive performance claim. It is the fact that it targets the straight-boot DG511 ignition-coil family associated with many 2004–2008 F-150 5.4L applications.
The package provides all eight coils needed for the V8.
This makes it useful when several coils have failed or when the existing set is old enough that replacing individual units repeatedly has become inconvenient.
Aftermarket coil manufacturers sometimes advertise increased spark energy compared with stock components. I would treat those numbers cautiously unless the manufacturer provides standardized test conditions that make direct comparison possible.
An F-150 owner should care more about consistent spark, insulation integrity, proper winding construction, connector quality, and exact fitment than a percentage printed on a product description.
In a stock 5.4 Triton, the objective is reliable combustion.
If the truck currently misfires because one or more original coils are breaking down, replacing those coils can restore throttle response and smoothness that had been lost. That restored performance can feel dramatic, but it is different from adding power beyond what a healthy engine normally produces.
The BANG4BUCK package also highlights why visual fitment confirmation is valuable.
Some Ford modular-engine coils look similar enough to cause confusion. Straight boot versus brown or differently shaped boot designs can distinguish applications that should not be mixed.
Do not force a connector, stretch a boot, or assume a retaining bolt lining up means a coil is electrically correct.
Another issue worth checking is the spring inside the boot. The spring forms the conductive connection between the coil output and the spark-plug terminal.
It must seat correctly.
A damaged, incorrectly positioned, or poorly seated spring can create a weak or intermittent connection even if the coil itself is functional.
During installation, press the coil onto the plug firmly but without using excessive force. You should feel the boot and spring settle onto the plug terminal.
Inspect every electrical connector before reassembly. A connector with a broken locking tab may vibrate loose and produce an intermittent misfire that resembles coil failure.
I would use this BANG4BUCK set primarily when price-conscious full-set replacement is the goal and exact DG511 compatibility has been confirmed.
What I Like
- Complete set of eight coils
- Relevant DG511 fitment for many 2004–2008 5.4L F-150s
- Straightforward coil-only replacement package
- Useful for replacing several aging coils simultaneously
- OE cross-reference information simplifies preliminary fitment checking
What I Do Not Like
- Performance-percentage claims should not replace objective fitment considerations
- Model-year compatibility is narrower than the overall 5.4L F-150 production range
- Buyers must purchase spark plugs separately when needed
Verdict
The BANG4BUCK DG511 set is a reasonable third option when you want eight replacement coils for a confirmed compatible 5.4L Triton.
I would still prioritize the ENA package for the broadest coil-only replacement need and the MAS bundle when spark plugs are also due.
5.4 F150 Coil Pack Comparison
| Product | Quantity | Coil Style | Common Reference | Spark Plugs Included | Primary Application | Main Strength | Main Limitation |
| ENA DG511 Straight Boot | 8 | Coil-on-plug | DG511 / UF537 / FD508 | No | Compatible 2004–2008 5.4L F-150 | Focused complete coil replacement | Plugs purchased separately |
| MAS DG511 Coil & Plug Kit | 8 coils + 8 plugs | Coil-on-plug | DG511 / UF537 / FD508 | Yes | Complete ignition service | Coils and plugs in one kit | More than needed for coil-only repair |
| BANG4BUCK DG511 | 8 | Coil-on-plug | DG511 / 3L3Z-12029-BA | No | Compatible 2004–2008 5.4L F-150 | Full eight-coil package | Verify exact boot and year |
The ENA set makes the most sense when your spark plugs are still healthy and you simply need a complete set of coils.
The MAS package becomes more attractive when both plugs and coils are due, while the BANG4BUCK set offers another straightforward coil-only alternative.
The deciding factor should still be correct fitment rather than package contents.
How to Choose the Best Coil Packs for a 5.4 F150
Start With the Model Year
This is the single most important buying step.
The F-150 used the 5.4L V8 for many years, and the ignition-coil specification did not remain unchanged through the entire production run.
Many 2004–2008 5.4L 3-valve F-150s are associated with the straight-boot DG511 family.
Later 5.4L applications can use the DG521 / 8L3Z-12029-A family with a different boot configuration.
Never interpret “fits 5.4L” as universal compatibility.
Compare the Existing Coil
Remove one accessible coil and compare:
- Boot color
- Boot shape
- Connector
- Terminal arrangement
- Mounting position
- Part number
- Overall length
The existing OE number is one of the most useful fitment references available.
Understand DG511 and UF537
DG511 is a commonly recognized Motorcraft-style reference for the straight-boot coil used in numerous Ford modular-engine applications.
Common aftermarket interchanges include:
- UF537
- FD508
- C1541
- C1659
- 5C1584
- E508
- GN10182
- 3L3Z-12029-BA
- 3L3E-12A366-CA
Matching one reference is helpful, but matching the truck’s exact year and engine is better.
Decide Between One Coil and Eight
One failed coil does not automatically require replacing all eight.
A single replacement makes sense when:
- Only one coil is confirmed defective
- The other coils are relatively new
- Maintenance history is known
- The boots and connectors remain healthy
Replacing all eight becomes more reasonable when:
- The coils are original and heavily aged
- Several have already failed
- Multiple boots show deterioration
- You want consistent components across every cylinder
- Repeat repairs have become inconvenient
Inspect the Spark Plugs
Do not evaluate coils in isolation.
A worn plug with an excessive gap makes the coil work harder because more voltage is required to initiate the spark.
A new coil installed over a badly worn plug may temporarily improve the situation without correcting the underlying ignition demand.
If you are replacing all eight coils on a high-mileage engine, checking plug condition at the same time is sensible.
Buy for Reliability, Not Coil Color
Red, yellow, blue, and other brightly colored aftermarket coils are often marketed as performance components.
Housing color does not tell you anything meaningful about:
- Winding quality
- Insulation
- Voltage stability
- Heat resistance
- Connector quality
- Long-term durability
Choose based on fitment and construction rather than appearance.
Common Symptoms of Bad 5.4 Triton Coil Packs
Rough Idle
A cylinder that is not firing consistently contributes less torque than the other seven. The result can be an uneven idle or noticeable shaking.
Hesitation During Acceleration
This is a classic weak-ignition symptom.
Higher cylinder pressure increases firing-voltage requirements, so an aging coil may operate at idle but break down when you press the accelerator.
Misfire Under Load
Towing, climbing grades, and heavy acceleration can expose a marginal coil earlier than relaxed cruising.
Check-Engine Light
Cylinder-specific misfires typically produce codes such as P0301 through P0308, depending on the affected cylinder.
Reduced Fuel Economy
A misfiring engine cannot convert all supplied fuel into useful work efficiently.
However, poor fuel economy by itself does not prove an ignition-coil problem.
Loss of Power
One weak cylinder on a V8 can make the truck feel noticeably less responsive, especially under load.
How to Diagnose a Bad Coil Before Buying Parts
The most useful strategy for a cylinder-specific misfire is often a coil-swap test.
Suppose the engine has a P0304 code indicating a cylinder-four misfire.
After checking obvious problems, move the cylinder-four coil to another accessible cylinder and move that cylinder’s known-working coil to cylinder four.
Clear the codes and operate the truck again.
If the misfire moves to the cylinder that received the suspected coil, the coil becomes a strong suspect.
If the misfire remains on cylinder four, continue diagnosing.
Possible alternatives include:
- Worn or damaged spark plug
- Fuel-injector fault
- Injector wiring problem
- Vacuum leak
- Coil connector problem
- Compression loss
- Valvetrain problem
- PCM wiring issue
Parts replacement should follow diagnosis whenever possible.
Installation Tips for 5.4 F150 Coil Packs
Allow the engine to cool enough to work safely.
Disconnect electrical connectors by releasing their locking mechanisms rather than pulling on the wiring.
Remove the coil retaining fastener and lift the coil vertically from the spark-plug well.
Before installing the replacement, inspect the well for water, oil, corrosion, and carbon tracking.
Check that the spring inside the new boot is correctly positioned.
A very small amount of appropriate dielectric grease may be used around the inside sealing area of the boot when consistent with the component instructions. Do not fill the boot with grease or treat dielectric grease as an electrical conductor.
Push the coil into position until it is properly seated over the plug.
Reinstall the retaining fastener to the correct specification and reconnect the electrical connector until its lock engages.
After completing the work, clear diagnostic codes when appropriate and verify that the misfire does not return.
Spark-Plug Considerations on the 5.4L 3-Valve Triton
Spark-plug service deserves its own discussion on the 5.4L 3-valve engine.
Certain original-style plugs used in these engines developed a reputation for difficult removal after extended service.
This means a truck owner should not casually decide to remove all eight plugs without first understanding the correct procedure.
Use the correct plug design for your exact engine and follow an appropriate removal method.
If a plug requires abnormal force, investigate rather than continuing aggressively.
When installing replacement plugs, use the specified torque and avoid contaminating areas that must remain clean.
Correct plug installation matters to coil life because the spark plug completes the high-voltage ignition path.
Common Coil-Pack Buying Mistakes
Buying DG511 for Every 5.4L F-150
The 5.4L engine existed across multiple model years and coil revisions. Verify your truck before ordering.
Replacing Eight Coils Without Diagnosis
A complete set can be convenient, but it will not repair an injector fault, compression problem, or vacuum leak.
Ignoring the Spark Plugs
Worn plugs can create high ignition demand and contribute to repeat misfire complaints.
Choosing by Advertised Voltage Alone
A larger voltage claim does not guarantee better fitment, insulation, or long-term reliability.
Buying Based on Color
Coil housing color is primarily cosmetic.
Installing Coils Into Contaminated Plug Wells
Oil or water can create leakage paths and damage the new boot.
Assuming a New Coil Means the Repair Is Finished
Clear codes, operate the vehicle under appropriate conditions, and verify that the misfire has actually been corrected.
Frequently Asked Questions
What are the best coil packs for 5.4 F150 trucks?
The best coil packs are correctly matched replacements with dependable insulation and the proper boot design.
For compatible 2004–2008 5.4L F-150 applications, I prefer the ENA DG511 eight-pack for a coil-only service. The MAS package makes more sense when spark plugs are also due, while the BANG4BUCK set provides another complete DG511-style alternative.
How many coil packs does a 5.4 F150 have?
The 5.4L Triton V8 uses eight individual coil-on-plug ignition coils.
Each cylinder has its own coil positioned directly over the spark plug. This design eliminates traditional distributor-based plug wires and allows the engine-management system to control ignition events individually.
Does DG511 fit every Ford F150 5.4?
No, DG511 should not be treated as universal across every 5.4L F-150 model year.
It is commonly associated with 2004–2008 5.4L applications using the appropriate straight-boot design. Later trucks may require the DG521 family or another application-specific part. Verify the existing coil and vehicle year.
What is the difference between DG511 and DG521?
They are different ignition-coil applications and should not be considered interchangeable without confirmed fitment.
DG511 is commonly associated with straight-boot earlier 5.4L 3-valve applications, while DG521 uses a different boot configuration and appears on later applications. Match the OE number, connector, boot, engine, and model year.
Should I replace all eight coils if one fails?
No, replacing only the confirmed failed coil is acceptable when the other seven remain healthy.
A complete set makes more sense when all eight are similarly aged, several have already failed, or the truck has an unknown ignition-service history.
Can bad coil packs cause an F150 to shake?
Yes, a failed coil can create a cylinder misfire that makes the engine shake noticeably.
The vibration is often strongest at idle or under acceleration. Scan for misfire codes and determine which cylinder is affected before assuming all coils need replacement.
Can bad coils cause transmission-like jerking?
Yes, an engine misfire under load can sometimes feel like a transmission shudder or hesitation.
The sensation can occur during acceleration or around shift points, making diagnosis confusing. Read engine codes and check misfire counters before assuming the transmission is responsible.
Will performance coils add horsepower to a 5.4 Triton?
Not significantly when the existing ignition system already fires every cylinder correctly.
A stronger aftermarket coil may provide additional ignition reserve in certain modified applications, but replacing healthy factory-spec coils generally does not create substantial power by itself. New coils mainly restore performance lost to weak or failing components.
Can worn spark plugs damage ignition coils?
Worn plugs can increase firing-voltage demand and place additional electrical stress on the coils.
As electrode wear increases the gap, the coil must develop more voltage to initiate a spark. Keeping the correct plugs in good condition helps reduce unnecessary stress on the ignition system.
What codes indicate a bad 5.4 F150 coil?
P0301 through P0308 can identify cylinder-specific misfires, but they do not prove coil failure.
Use the code to identify the affected cylinder and then test the coil, plug, wiring, injector, and mechanical condition. Moving the suspected coil to another cylinder can help determine whether the fault follows it.
How long do F150 ignition coils last?
There is no fixed mileage at which every ignition coil must be replaced.
Heat cycles, plug condition, moisture, vibration, electrical system health, component quality, and vehicle usage all affect service life. Replace coils based on diagnosis and condition rather than an arbitrary interval.
Can I replace F150 coil packs myself?
Yes, an experienced DIY owner can replace them with basic tools and careful connector handling.
Access to some cylinders can be tight, and aged plastic connectors can be brittle. Work methodically, keep debris out of the plug wells, and confirm each coil is fully seated before reconnecting it.
Should I use dielectric grease on the coil boots?
A small amount can help seal the boot when its use is permitted for the application.
Apply it sparingly around the boot’s sealing area rather than packing the entire cavity. Dielectric grease is an insulator, so excessive application is unnecessary.
Can water cause a 5.4 Triton coil to misfire?
Yes, moisture in a spark-plug well can promote high-voltage leakage and misfire.
If water is present, dry the area and determine how it entered. Installing another coil without correcting the source may only produce a temporary repair.
What should I check before ordering 5.4 F150 coils?
Confirm the model year, engine, OE number, coil boot, connector, and cross-reference before ordering.
For DG511 applications, references such as UF537, FD508, C1541, and 3L3Z-12029-BA may help. A later truck may require a different coil family even though it still uses a 5.4L engine.
Conclusion
Choosing the best coil packs for 5.4 F150 trucks starts with identifying the exact ignition-coil design already fitted to the engine. The 5.4L Triton spans enough model years that displacement alone is not a reliable fitment guide.
For a compatible 2004–2008 5.4L truck using the straight-boot DG511 family, the ENA Set of 8 Straight Boot DG511 Ignition Coil Packs remains my primary recommendation. It provides eight matched coils without adding spark plugs that a truck may not currently need.
The MAS Set of 8 DG511 Ignition Coils with Motorcraft Spark Plugs is the stronger alternative when both components are due for service. It allows you to refresh the coil and plug on every cylinder during the same job.
The BANG4BUCK DG511 set is another practical full-set option for buyers who have confirmed the same straight-boot fitment.
Before installing anything, compare the new coil with the original and verify the model year, OE reference, connector, and boot configuration. If your F-150 is a later 5.4L model using the DG521 family, choose the correct later coil instead of forcing a DG511 application.
Finally, diagnose the misfire before replacing parts. For a confirmed compatible truck needing all eight coils, I would start with the ENA DG511 set.
