Finding the best spark plug wires for big block chevy engines requires more than selecting the thickest wire set or buying the most expensive brand. A Big Block Chevy generates substantial heat, and many builds use headers that leave limited clearance around the spark plugs. The wrong boot angle, wire length, or distributor terminal can make installation difficult and may expose the wires to unnecessary heat.
Old or damaged wires can contribute to misfires, rough idling, hard starting, weak acceleration, and inconsistent ignition performance. A poorly routed wire can also contact a header tube, damaging the insulation or spark plug boot. For that reason, I focused on conductivity, heat resistance, EMI suppression, boot configuration, distributor compatibility, and routing style when selecting these products.
My top recommendation is the MSD 35609 Super Conductor 8.5mm Spark Plug Wire Set. It is specifically designed for Big Block Chevy engines with an HEI tower cap and combines low conductor resistance with strong electrical-interference suppression. MSD specifies 40 to 50 ohms of resistance per foot, a 45-degree spark plug boot, and application-specific wire lengths for Big Block Chevy engines.
I also reviewed the Moroso 51045 Ultra Series Wire Set for under-header routing and the JDMSPEED 8mm HEI Spark Plug Wire Set for owners who prefer a preassembled, lower-cost replacement.
Before ordering any set, check the distributor-cap terminal style, spark plug boot angle, header clearance, and intended routing path. Big Block Chevy engines may share a similar basic architecture, but their ignition and exhaust configurations can differ significantly.
How I Selected These Spark Plug Wires
I selected these three products by comparing their stated Big Block Chevy compatibility, wire construction, resistance, boot design, distributor-terminal configuration, installation requirements, Amazon ratings, and review volume.
I gave additional consideration to heat management because spark plug wires on a header-equipped Big Block Chevy often operate close to hot exhaust tubes. A quality wire jacket and silicone boot can provide useful protection, but neither can compensate for a wire resting directly on a header.
I also considered resistance and electrical-noise suppression. Low resistance helps reduce energy loss as voltage travels from the distributor to the spark plug. However, a street-driven vehicle also needs effective EMI and RFI suppression to limit interference with radios and other electronic equipment.
Wire diameter was another consideration, but I did not treat the thickest wire as automatically superior. The conductor, insulation layers, terminal quality, and application fit are generally more informative than diameter alone.
Finally, I separated preassembled sets from race-tailored or application-specific options. Preassembled wires are usually quicker to install, while a carefully designed performance set may provide better routing, lower resistance, or a more precise fit.
3 Best Spark Plug Wires for Big Block Chevy Reviews
| Image | Product Name | Check Price |
|---|---|---|
Best Choice | MSD 35609 Super Conductor 8.5mm Spark Plug Wire Set | Check Price |
Second Best | Moroso 51045 Ultra Series Spark Plug Wire Set | Check Price |
Third Choice | JDMSPEED 8mm HEI Spark Plug Wire Set | Check Price |

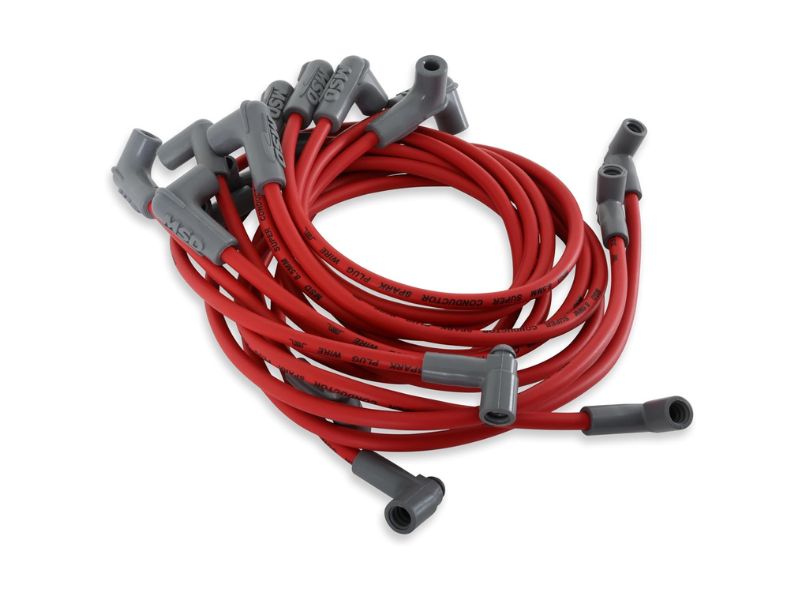

1. MSD 35609 Super Conductor 8.5mm Spark Plug Wire Set
The MSD 35609 is the set I would consider first for a performance-oriented Big Block Chevy equipped with an HEI tower cap. It is not simply a generic V8 kit. MSD identifies part number 35609 as an application-specific Big Block Chevy wire set with a red 8.5mm outer jacket, 45-degree spark plug boots, and HEI-cap compatibility.
Its most important specification is the conductor resistance. MSD lists the resistance at approximately 40 to 50 ohms per foot, which is considerably lower than the ratings stated for the other two products in this article. Lower resistance allows more ignition energy to reach the spark plug instead of being dissipated through the wire.
Low resistance can create electrical-noise concerns if the wire is not properly engineered. MSD addresses this with a helically wound copper-alloy conductor and a ferro-magnetic impregnated core. According to MSD, approximately 40 feet of conductor is wound into one foot of finished wire, creating an effective choke that helps contain electromagnetic interference. The core also incorporates DuPont Kevlar material for tensile strength.
The outer sleeve uses a proprietary compound designed to resist high temperatures and abrasion. This is relevant for Big Block Chevy installations because the wires frequently pass near headers, valve covers, brackets, and other surfaces that can damage a softer jacket.
MSD provides individual wire lengths for the cylinders rather than using eight identical cables. The published lengths range from 23 to 42 inches, and the set includes a 24-inch coil wire. This application-specific sizing can produce a cleaner installation than a broad universal kit, provided the engine’s distributor position and routing arrangement match the intended configuration.
The Amazon listing showed a rating of 4.5 out of 5 stars from 56 ratings when I checked it. Amazon also identified the set as compatible with Big Block Chevy engines using HEI tower caps. Ratings and review totals may change as additional customers submit feedback.
The main limitation is cost. This is a premium performance wire set, so it may be excessive for a stock engine that only needs an inexpensive replacement. Buyers should also note that MSD does not include wire separators with this set. Proper separators may need to be purchased separately to keep the wires away from the headers and from one another.
Key features
- 8.5mm outer diameter
- Approximately 40 to 50 ohms of resistance per foot
- Copper-alloy spiral-wound conductor
- Ferro-magnetic core for EMI suppression
- Kevlar-reinforced conductor core
- 45-degree spark plug boots
- HEI tower-cap compatibility
- Big Block Chevy-specific wire lengths
- Heat- and abrasion-resistant outer sleeve
What I like
- Very low conductor resistance
- Effective EMI-suppression design
- Application-specific Big Block Chevy configuration
- Durable insulation for performance engine compartments
- Individual wire lengths can create a cleaner layout
- Suitable for upgraded ignition systems and modified engines
What to consider
- It costs more than basic replacement sets
- Wire separators are not included
- It is intended for an HEI-style tower cap
- Its predetermined lengths may not match every custom routing plan
- Buyers with a socket-style distributor cap need a different configuration
The MSD 35609 makes the most sense for a street-performance, drag-racing, or restomod application where ignition quality and low resistance are priorities. For a completely stock engine with factory-style routing, a less expensive set may be sufficient.

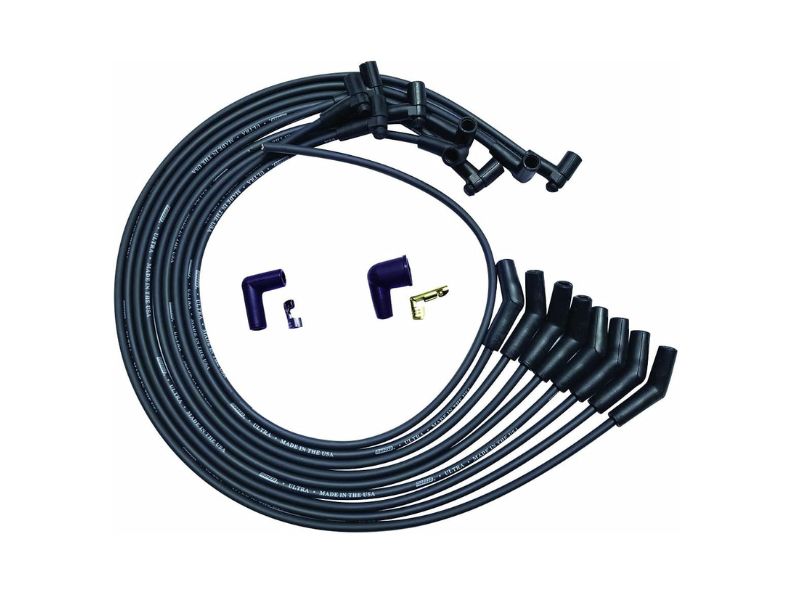

2. Moroso 51045 Ultra Series Spark Plug Wire Set
The Moroso 51045 is a more specialized option. It is designed for a Big Block Chevy with an HEI distributor and an under-header routing arrangement. It uses black 8mm wires with 135-degree spark plug boots, making it distinct from the more conventional 45-degree MSD configuration.
The 135-degree boot angle is the main reason to consider this set. Depending on the cylinder heads and header design, this angle can direct the wire downward and away from an exhaust tube more effectively than a straight or 90-degree boot. However, the same boot angle will not suit every header. The clearance should be inspected at all eight cylinders before selecting an application-specific wire set.
Moroso rates the wire at 350 ohms of resistance per foot. Its conductor is made from stainless nickel-alloy wire wound 32 times per inch around a conductive, latex-coated fiberglass core. This spiral construction is intended to provide conductivity while suppressing ignition-related interference.
The outer jacket consists of two layers of high-heat-resistant EPDM separated by a nylon reinforcing pull tape. Moroso states that the inner insulation layer provides dielectric strength, while the outer jacket offers heat and flame resistance. Silicone boots cover snap-lock terminals intended to maintain a secure electrical connection.
Moroso publishes the included wire lengths, which range from 26.5 to 44.5 inches, as well as a 36-inch coil wire. Because the kit is arranged for under-header routing, the supplied lengths should be evaluated against the actual distributor position and wire path before installation.
The word “unsleeved” in the product description is important. The wires use heat-resistant insulation, but they do not include the additional exterior sleeving found on Moroso’s more expensive sleeved sets. If a boot passes very close to a header tube, separate heat sleeves may still be necessary.
The Amazon listing showed a 4.6-star average from 75 reviews when I researched it. Amazon identifies the product as model 51045 and describes it as a Big Block Chevy under-header set with HEI compatibility and 135-degree boots.
Under-header routing can create a clean engine-bay appearance because fewer wires are visible above the valve covers. It can also keep the wires away from some throttle-linkage and air-cleaner components. The trade-off is that the cables may remain closer to the exhaust system for a greater portion of their length.
Key features
- 8mm wire diameter
- 350 ohms of resistance per foot
- Stainless nickel-alloy spiral conductor
- Conductive fiberglass core
- Dual-layer EPDM outer jacket
- Silicone spark plug boots
- 135-degree spark plug ends
- HEI distributor compatibility
- Big Block Chevy under-header routing
- Application-specific wire lengths
What I like
- Purpose-built under-header configuration
- 135-degree boots may improve header clearance
- Reinforced dual-layer outer jacket
- Spiral-wound conductor provides interference suppression
- Published wire lengths simplify fitment planning
- Black wire provides a restrained, factory-inspired appearance
What to consider
- It is an unsleeved wire set
- Under-header routing increases exposure to exhaust heat
- The 135-degree boot angle will not fit every header layout
- It is less flexible than a universal or cut-to-fit set
- Additional boot sleeves may be needed in tight areas
The Moroso 51045 is most appropriate when I already know that the engine requires under-header routing and that 135-degree boots provide the correct clearance. It is not the set I would purchase without first inspecting the header tubes around each spark plug.

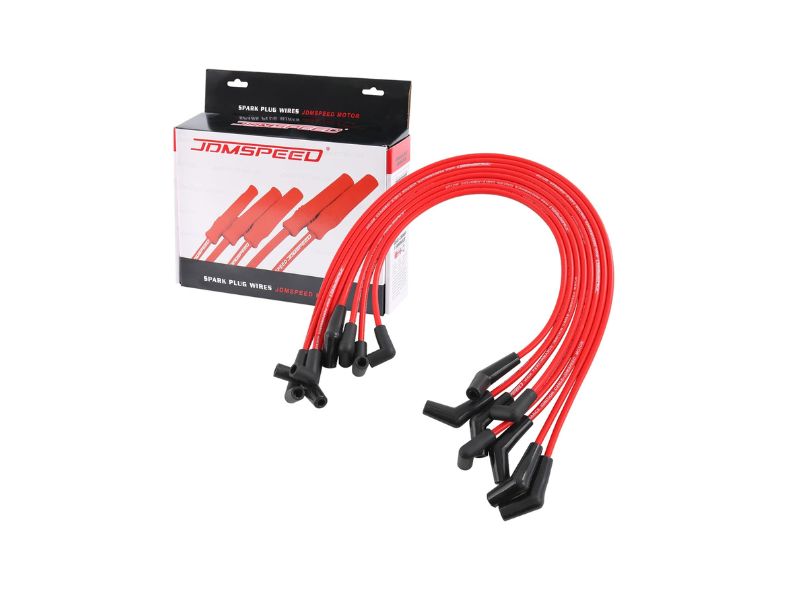

3. JDMSPEED 8mm HEI Spark Plug Wire Set
The JDMSPEED set is a preassembled option for Chevrolet and GMC Big Block engines using an HEI male-tower distributor cap. The Amazon listing names the 366, 396, 427, 454, and 502 engines as compatible applications. It uses 8mm red wires, 45-degree spark plug boots, and 90-degree distributor boots.
Its primary advantage is installation convenience. The wires arrive factory assembled, so the distributor ends do not need to be cut and crimped. This reduces installation time and removes the risk of making a poor terminal connection with an incorrect crimping tool.
The set uses Packard Wire-branded spiral-core cables rated at approximately 270 ohms per foot. That resistance is higher than the MSD specification but lower than the published rating for the Moroso set. Resistance figures should not be used as the only measure of quality, but they provide a useful comparison between products.
JDMSPEED states that the black spark plug boots withstand more heat than a standard boot. However, the Amazon listing does not provide the same detailed jacket-construction information available from MSD or Moroso. I would therefore treat it as a practical replacement set rather than assume it offers the same material engineering as a premium racing product.
The 45-degree spark plug ends can provide useful clearance on many header-equipped engines. The 90-degree distributor boots also help the wires turn away from the large HEI cap without forming sharp bends. Whether those angles work correctly depends on the distributor orientation and header design.
The Amazon listing showed a 4.5-star rating from 90 customer ratings when I reviewed it. That gives this product the largest Amazon rating sample of the three sets in this article, although review count alone does not establish superior construction or fit.
One detail requires careful attention: this set is designed for an HEI male-tower cap. It will not directly fit an older points-style cap that uses female sockets. Owners should inspect the distributor rather than assuming that every 396, 427, or 454 uses the same cap.
The factory-assembled design also limits customization. The wires can be routed without terminal installation, but excess cable cannot be shortened without replacing or reattaching a terminal. Some engines may therefore have extra slack that must be organized with separators.
Key features
- 8mm spiral-core wires
- Approximately 270 ohms of resistance per foot
- 45-degree spark plug boots
- 90-degree distributor boots
- HEI male-tower cap compatibility
- Preassembled distributor terminals
- Red wire with black high-temperature boots
- Listed for 366, 396, 427, 454, and 502 engines
What I like
- No cutting or crimping is required
- Broad Big Block Chevy engine compatibility
- Angled boots can simplify routing
- Lower initial cost than many premium sets
- Larger Amazon review sample than the other two products
- Practical for a stock or mildly modified street engine
What to consider
- It does not fit a female-terminal points-style cap
- Fixed lengths may create excess slack
- Published construction details are limited
- It may require larger or additional wire separators
- I would not assume it offers the same durability as a premium race wire
- Header clearance still needs to be checked individually
The JDMSPEED set is a reasonable choice when installation simplicity and price matter more than obtaining the lowest possible resistance. It is particularly useful for a street-driven 396, 427, or 454 that already uses a conventional large-cap HEI distributor.
Comparison Table
| Product | Wire Size | Resistance | Spark Plug Boot | Distributor Type | Routing Style | Amazon Rating* |
| MSD 35609 Super Conductor | 8.5mm | 40–50 ohms/ft | 45 degrees | HEI tower cap | Application-specific | 4.5/5, 56 ratings |
| Moroso 51045 Ultra Series | 8mm | 350 ohms/ft | 135 degrees | HEI | Under header | 4.6/5, 75 reviews |
| JDMSPEED HEI Wire Set | 8mm | 270 ohms/ft | 45 degrees | HEI male tower | Preassembled | 4.5/5, 90 ratings |
*Amazon ratings and review totals were checked during research and may change over time.
What to Consider Before Buying Big Block Chevy Spark Plug Wires
Distributor-Cap Compatibility
The distributor terminal is one of the first details I check. A common large-cap HEI distributor has male towers that extend from the cap, while many older points-style distributors use female sockets.
A wire set designed for an HEI male tower will not correctly attach to a female cap without changing the terminal. Some universal kits include multiple terminal types, but the three products reviewed here are configured for HEI applications.
The engine’s displacement does not determine the distributor terminal. Two Chevrolet 454 engines can use different distributors depending on the vehicle, model year, and modifications. Visual inspection is more reliable than choosing a set only because the listing includes the engine size.
Spark Plug Boot Angle
The boot angle determines how the wire exits the spark plug. Common designs include straight, 45-degree, 90-degree, 135-degree, and adjustable boots.
A 45-degree boot offers a useful balance between access and clearance in many Big Block Chevy applications. A 135-degree boot turns the wire sharply back toward the cylinder head, which can be helpful for certain under-header arrangements.
There is no single angle that works with every set of headers. The correct choice depends on the cylinder-head design, spark plug length, header-tube position, and intended routing path.
Header Clearance
Direct contact with a header is one of the fastest ways to damage a spark plug wire. Even a heat-resistant jacket can eventually fail if it remains pressed against a hot exhaust tube.
I would route every wire with a visible air gap around the header. Wire separators should be used to hold the cables in position rather than allowing them to move with engine vibration.
A heat sleeve can provide additional protection around a spark plug boot, but it should not be treated as a substitute for adequate clearance. If the boot touches the header before the sleeve is installed, the routing or boot angle should be reconsidered.
Wire Resistance
Spark plug wire resistance is measured in ohms per foot. Lower resistance reduces the amount of ignition energy lost as voltage travels through the cable.
However, extremely low resistance is not the only objective. A street wire also needs to suppress electromagnetic and radio-frequency interference. This is why many performance wires use a spiral-wound conductor rather than an unsuppressed solid core.
The MSD set combines very low resistance with a ferro-magnetic EMI choke. The Moroso and JDMSPEED sets use higher-resistance spiral-core conductors. The appropriate choice depends on the ignition system, electronic equipment, operating conditions, and budget.
Wire Diameter
Wire diameter mainly describes the outside of the cable. A larger diameter can provide room for thicker insulation, but it does not prove that the conductor has lower resistance or that the terminals are better made.
An 8mm wire can work effectively on a Big Block Chevy when its construction and fit are appropriate. An 8.5mm wire may provide a heavier jacket or different internal design, but the specification sheet should be evaluated rather than relying on diameter alone.
Thicker wires also require compatible separators. A factory loom designed for smaller cables may not accept an oversized performance set without modification.
Routing Style
Big Block Chevy wires may run over the valve covers, around the rear of the engine, or beneath the headers. Each method affects the required wire lengths and boot angles.
Over-valve-cover routing can make inspection and replacement easier, although it leaves more of the wiring visible. Under-header routing creates a cleaner upper engine compartment but places the cables closer to exhaust heat.
A custom engine may need a universal cut-to-fit set rather than application-specific lengths. Before buying, I would trace the intended route with a flexible measuring tape or a piece of cord.
Preassembled or Cut-to-Fit
A preassembled set saves time and avoids terminal crimping. It is usually the safer choice for someone who has not previously built spark plug wires.
A cut-to-fit set allows each cable to be sized precisely. This can eliminate excess slack and create a cleaner installation, but the terminals must be crimped correctly. A loose or poorly folded terminal can create high resistance, intermittent connection, or a wire that pulls away from the boot.
Big Block Chevy Spark Plug Wire Installation Tips
Replace one wire at a time when the existing firing order is correct. Removing all eight wires at once makes it easier to connect a cylinder to the wrong distributor terminal.
Before installation, compare each new wire with the old one or measure the planned routing path. Use the shortest wire that reaches comfortably without being stretched. The cable should have enough slack for engine movement but should not form large loops near the headers.
Push each terminal onto the spark plug and distributor tower until it is fully seated. Many terminals produce a noticeable click or firm change in resistance when they engage correctly. Pull on the boot rather than the wire when checking or removing the connection.
Use separators to keep the cables organized and prevent abrasion. Avoid tying all eight wires into one tight bundle because this can increase heat concentration and complicate troubleshooting.
Inspect every spark plug boot from multiple angles after the installation. A boot may appear clear from above while touching a header tube underneath. Pay particular attention to the cylinders where header tubes bend closely around the plug.
When a wire must pass near a hot surface, add an appropriate heat sleeve and secure the wire so the sleeve does not slide away from the boot.
After installation, start the engine and listen for a consistent idle. A new misfire may indicate an incorrect firing order, a terminal that is not fully seated, or a damaged connection. In a darkened area, visible arcing around a wire or boot can also indicate insulation leakage, although moving parts and hot exhaust components require caution.
Frequently Asked Questions
What are the best spark plug wires for a Big Block Chevy 454?
For a performance-oriented 454 with an HEI tower cap, I would start with the MSD 35609. It provides low resistance, effective EMI suppression, and Big Block Chevy-specific lengths.
The Moroso 51045 is more appropriate when the engine specifically uses under-header routing with 135-degree boots. The JDMSPEED set is a simpler preassembled option for a street-driven 454 with an HEI male-tower distributor.
Will Small Block Chevy spark plug wires fit a Big Block Chevy?
Some universal V8 wire sets may be compatible with both engine families, but an application-specific Small Block Chevy set should not automatically be assumed to fit a Big Block Chevy.
Big Block engines may require different wire lengths and boot angles because of their larger dimensions, cylinder-head layout, and header position. Distributor-terminal compatibility must also be confirmed.
Are 8.5mm wires better than 8mm wires?
Not necessarily. Diameter measures the outside of the wire, not conductor efficiency. An 8mm wire with a well-designed spiral core, strong insulation, and secure terminals can perform better than a poorly constructed 8.5mm wire.
Resistance, EMI suppression, temperature protection, terminal quality, and fitment are more useful comparison points.
Do performance spark plug wires increase horsepower?
A premium wire set does not usually create a large horsepower gain on an engine whose existing ignition wires already operate correctly.
New wires can restore performance when old wires are cracked, excessively resistant, poorly connected, or leaking voltage. Performance wires can also support a higher-output ignition system more reliably under demanding conditions.
What boot angle works best with Big Block Chevy headers?
There is no universal boot angle for every header. A 45-degree boot works well on many combinations, while 90- or 135-degree boots may provide better clearance on certain under-header designs.
The header tubes and spark plug locations should be inspected individually. A boot angle that clears seven cylinders may still contact the header at the eighth.
Can I use HEI spark plug wires with a points distributor?
Not when the terminal styles are different. A large-cap HEI distributor typically uses male towers, while many points-style caps use female sockets.
The wire terminals must match the distributor. A universal wire kit may include terminals for both styles, but an application-specific HEI set generally arrives with the HEI terminals already installed.
Should spark plug wires run over or under the headers?
Either arrangement can work when it is designed and secured correctly.
Over-header or over-valve-cover routing usually provides easier access and may keep more of the cable away from exhaust heat. Under-header routing can produce a cleaner appearance but requires careful heat management and suitable wire lengths.
How can I protect spark plug wires from header heat?
Maintain an air gap between the wire and header, use properly sized separators, and add heat-resistant boot sleeves where necessary.
The wire should not rest directly on a header tube, even when a heat sleeve is installed. Secure routing is more important than relying solely on insulation.
How often should Big Block Chevy spark plug wires be replaced?
There is no single interval that applies to every vehicle. Heat exposure, mileage, ignition output, oil contamination, and installation quality all affect wire life.
Inspect the set regularly and replace it when the jacket becomes cracked, burned, swollen, brittle, or oil-soaked. Unexplained misfires, loose terminals, visible arcing, and inconsistent resistance readings are also reasons to investigate replacement.
Conclusion
Choosing the best spark plug wires for big block chevy engines depends on the distributor, header layout, spark plug boot clearance, routing preference, and intended use of the vehicle.
My primary recommendation is the MSD 35609 Super Conductor 8.5mm Spark Plug Wire Set. Its low-resistance conductor, effective EMI suppression, and Big Block Chevy-specific configuration make it a strong choice for a performance-oriented engine with an HEI tower cap.
The Moroso 51045 Ultra Series Spark Plug Wire Set is the more specialized choice for an under-header installation that requires 135-degree boots. Its reinforced 8mm construction and application-specific lengths are useful, but header clearance must be verified carefully.
The JDMSPEED 8mm HEI Spark Plug Wire Set is easier to install because its terminals are already assembled. It is a practical option for a stock or mildly modified Big Block Chevy with a male-tower HEI distributor.
Regardless of the product selected, I would prioritize correct terminal fit, secure connections, adequate header clearance, and controlled routing over wire color or diameter. The most expensive set will not perform reliably if its boots touch the exhaust or its terminals do not match the distributor.
