Choosing the best spark plug wires for Chevy 350 with headers requires more than finding a set labeled for a Small Block Chevy. Headers create tighter clearances and expose the spark plug boots and wires to substantially more exhaust heat than factory manifolds. A wire that fits a stock engine may rest against a header tube, use the wrong boot angle, or leave too much slack around moving and hot components.
Damaged insulation or loose terminals can allow ignition voltage to escape before it reaches the spark plug. The result may be rough idling, hesitation, hard starting, intermittent misfires, or poor performance under load. Even a high-quality wire set can fail early when the boots touch the headers or the cables are not secured with suitable separators.
My first recommendation is the MSD 35599 Super Conductor 8.5mm Spark Plug Wire Set. It is made specifically for Small Block Chevy engines with an HEI cap and uses 90-degree spark plug boots, application-specific wire lengths, and a low-resistance spiral-wound conductor. MSD also describes the set as intended for engines equipped with headers or an MSD distributor.
I also reviewed the Moroso 51528 for sleeved under-header routing and the A-Team Performance 8mm set for buyers who want a simpler preassembled HEI configuration. Before ordering, verify the distributor terminals, boot angle, wire path, and clearance around every header tube.
3 Best Spark Plug Wires for Chevy 350 With Headers
| Image | Product Name | Check Price |
|---|---|---|
Best Choice | MSD 35599 Super Conductor 8.5mm Spark Plug Wire Set | Check Price |
Second Best | Moroso 51528 Ultra Series Sleeved Spark Plug Wire Set | Check Price |
Third Choice | A-Team Performance 8.0mm Silicone Spark Plug Wire Set | Check Price |

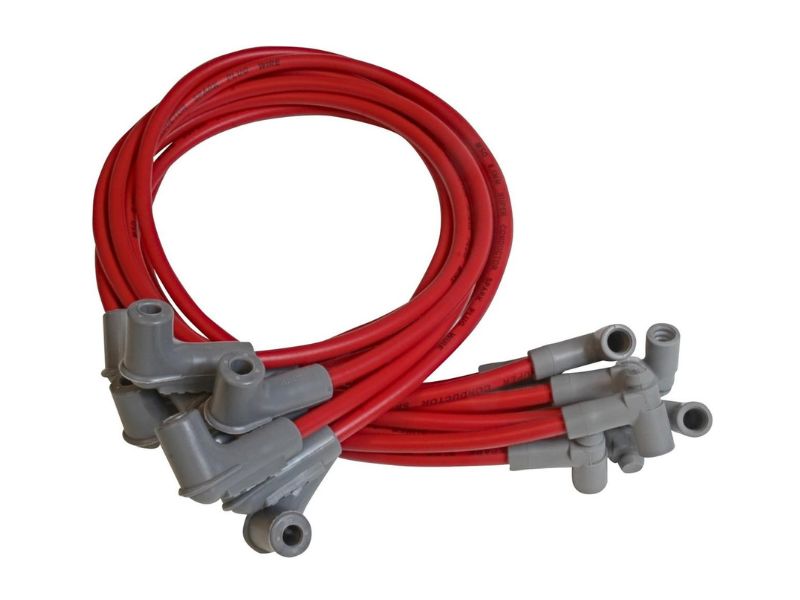

1. MSD 35599 Super Conductor 8.5mm Spark Plug Wire Set
The MSD 35599 is the wire set I would consider first for a performance-oriented Chevy 350 using a conventional large-cap HEI distributor. It is an application-specific Small Block Chevy set rather than a generic collection of universal-length cables.
MSD supplies individual wire lengths for each cylinder. The published lengths range from 27 to 39 inches, along with a 12-inch coil wire. This arrangement can create a cleaner installation than a universal set because each cable is intended to reach a particular cylinder without leaving excessive loops around the valve covers or headers.
The conductor is the most important feature. MSD uses a copper-alloy conductor with approximately 40 to 50 ohms of resistance per foot. Approximately 40 feet of conductor is helically wound into each foot of finished wire. This design helps combine low resistance with electromagnetic-interference suppression, allowing the cable to transfer ignition energy while limiting electrical noise around other vehicle electronics.
A ferro-magnetic impregnated core creates an additional EMI choke, while DuPont Kevlar material reinforces the conductor core against stretching. The outer sleeve uses a proprietary compound designed to resist heat and abrasion. These features are useful in a header-equipped engine bay, where the wires may be exposed to radiant exhaust heat, sharp brackets, metal separators, and repeated vibration.
The set uses 8.5mm red wires and silicone 90-degree spark plug boots. A 90-degree boot can help turn the cable away from the plug and cylinder head without creating a large loop. Whether that angle clears the headers depends on the exact tubes and cylinder heads installed. No boot angle works with every header design.
Although the set is described as header-compatible, it is not externally sleeved. MSD lists the “Sleeved” specification as no. The outer jacket is heat resistant, but the wires still require an air gap around the header tubes. Separate boot protectors may be needed where radiant heat is intense or clearance is limited.
Another point to consider is the distributor. The 35599 is configured for an HEI cap. It should not be assumed to fit an older socket-style distributor cap or every aftermarket small-cap distributor. Inspect the cap towers before ordering.
The kit also does not include wire separators. MSD explicitly lists separators as not included, so buyers may need to purchase 8.5mm-compatible looms separately. Proper separators are essential because they hold the cables away from headers, sharp edges, throttle linkage, and one another.
Key specifications
- 8.5mm wire diameter
- Approximately 40–50 ohms of resistance per foot
- Copper-alloy spiral-wound conductor
- Ferro-magnetic EMI-suppression core
- Kevlar-reinforced conductor core
- 90-degree silicone spark plug boots
- Small Block Chevy-specific wire lengths
- HEI-cap configuration
- Heat- and abrasion-resistant outer jacket
- Separate wire separators required
What I like
- Very low published resistance
- Strong EMI-suppression design
- Specifically configured for Small Block Chevy engines
- Individual wire lengths reduce unnecessary slack
- Durable outer construction
- Suitable for performance-oriented ignition systems
- 90-degree boots work well with many header layouts
What to consider
- More expensive than basic replacement sets
- Exterior heat sleeving is not included
- Wire separators are not included
- HEI-cap terminals will not fit every distributor
- Application-specific lengths limit routing flexibility
- Header clearance must still be checked cylinder by cylinder
I would choose the MSD 35599 for a street-performance, restomod, or competition-oriented Chevy 350 where low resistance and reliable ignition delivery are priorities. It is a strong product, but it still needs careful routing and suitable separators to survive near hot headers.

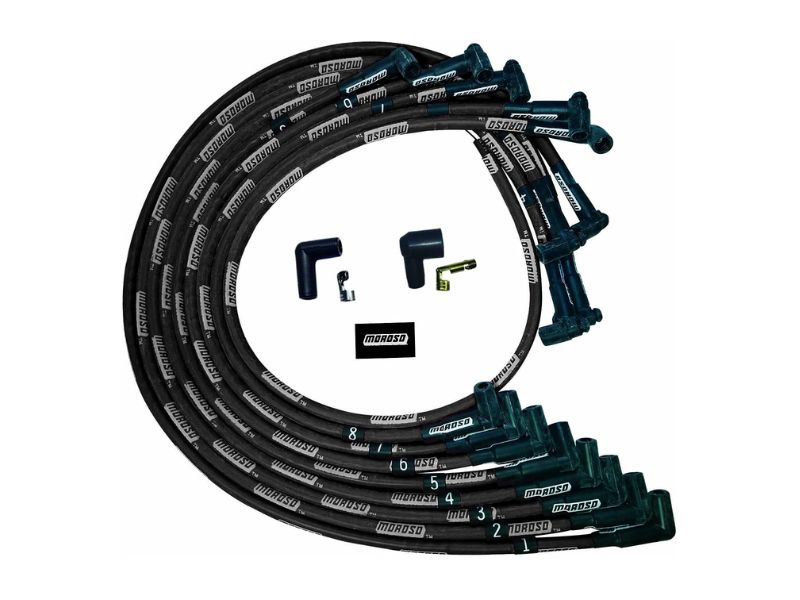

2. Moroso 51528 Ultra Series Sleeved Spark Plug Wire Set
The Moroso 51528 is designed for a more specific installation. It is a Small Block Chevy wire set configured for under-header routing, an HEI distributor, and 90-degree spark plug boots. It also includes exterior sleeving, making it particularly relevant when the wires must travel close to the exhaust system.
Under-header routing places much of the wiring below the valve-cover area. This can produce a cleaner upper engine compartment and may keep the cables away from carburetor linkage, air-cleaner components, and accessories. The disadvantage is greater exposure to header heat, making insulation quality and secure routing especially important.
Moroso uses 8mm wire with a published resistance of 350 ohms per foot. The conductor consists of stainless nickel-alloy wire wound 32 times per inch around a conductive, latex-coated heavy-fiberglass core. This spiral-core construction is intended to carry ignition voltage while suppressing electrical interference.
The outer jacket consists of two high-heat-resistant EPDM layers separated by nylon reinforcing pull tape. The inner insulation provides dielectric strength, while the outer layer is intended to resist heat and flame. Silicone boots cover snap-lock terminals designed to maintain positive connections at the spark plugs and distributor.
The additional exterior sleeving separates this product from the unsleeved MSD 35599. Sleeving provides another barrier against radiant heat and abrasion. However, it does not make direct contact with a header tube acceptable. A sleeved wire resting against hot exhaust metal can still deteriorate, especially during extended driving or repeated high-load operation.
Moroso publishes the wire lengths for this set. It includes two 45-inch wires, two 40-inch wires, and four shorter wires measuring approximately 26.75 to 28 inches. A 36-inch coil wire is also included. These lengths are configured for the intended Small Block Chevy under-header route.
The fixed routing design is useful when it matches the engine, but it is less adaptable than a universal cut-to-fit kit. Distributor position, header design, engine mounts, cylinder heads, and plug angle can change the required cable path. I would measure the intended route before ordering rather than assume that every Chevy 350 with headers has the same layout.
The product uses 90-degree spark plug boots. These work with many Small Block Chevy header configurations, but some tubes pass so close to the plug that a straight, 45-degree, or multi-angle boot provides better clearance. The boot must remain fully seated without resting against the header.
Installation may take longer than an over-valve-cover set because the wires need to be routed beneath the exhaust area while maintaining clearance and access. The work should be completed with a cool engine, and the routing should be inspected again after several heat cycles.
Key specifications
- 8mm wire diameter
- Approximately 350 ohms of resistance per foot
- Stainless nickel-alloy spiral conductor
- Heavy-fiberglass conductor core
- Dual-layer heat-resistant EPDM jacket
- Nylon reinforcement
- Exterior protective sleeving
- 90-degree silicone spark plug boots
- HEI distributor configuration
- Under-header Small Block Chevy routing
- Published cylinder-specific lengths
What I like
- Exterior sleeving adds heat and abrasion protection
- Purpose-built under-header configuration
- Reinforced dual-layer outer jacket
- Secure snap-lock terminals
- Application-specific wire lengths
- Clean engine-bay appearance when installed correctly
- Suitable for builds where over-valve-cover routing is undesirable
What to consider
- More installation planning is required
- Under-header routing increases heat exposure
- Fixed lengths may not fit a heavily customized layout
- A 90-degree boot will not clear every header tube
- Exterior sleeving cannot prevent damage from direct contact
- Access may be more difficult during future maintenance
I would select the Moroso 51528 when the engine is already planned around under-header routing and the 90-degree boots provide verified clearance. Its protective construction is attractive for a hot engine compartment, but correct spacing remains more important than the presence of sleeving.

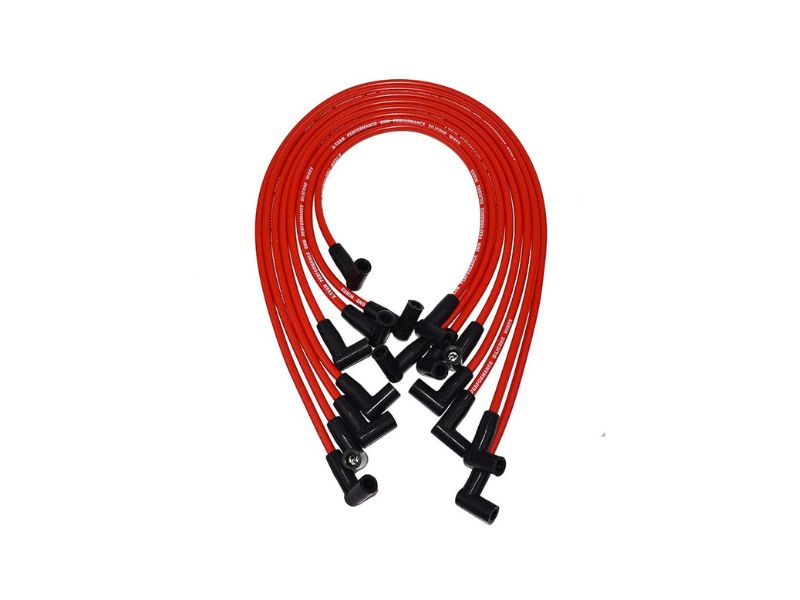

3. A-Team Performance 8.0mm Silicone Spark Plug Wire Set
The A-Team Performance set is a preassembled 8mm option for Small Block Chevy and GMC engines using a coil-in-cap HEI distributor. Its Amazon listing identifies compatibility with 283, 305, 307, 327, 350, and 400-cubic-inch applications and describes the set for under-exhaust or header-oriented routing.
The wires use black 90-degree boots at both the spark plug and HEI distributor ends. This configuration can simplify installation because the terminals and boots are already attached. Buyers do not need to measure, cut, strip, and crimp each cable before installation.
The listing describes an 8mm silicone outer layer, a spiral-wound copper conductor, heavy glass-braid reinforcement, high-dielectric-strength insulation, and high-temperature black boots. The silicone jacket is intended to resist heat and abrasion, while the glass braid adds pull strength.
This construction makes the set relevant to a street-driven Chevy 350 with headers, but its technical documentation is less detailed than the specifications published by MSD and Moroso. The Amazon listing does not provide a specific resistance value that I would rely on for direct comparison. Claims such as “extremely low resistance” are therefore less useful than an actual ohms-per-foot specification.
The coil-in-cap HEI configuration requires special attention. The product description states that the set does not use or include an external coil wire. That is appropriate for a conventional large-cap HEI distributor with the coil mounted inside the cap, but it may be unsuitable for a remote-coil distributor or a different ignition layout.
The fixed 90-degree boots also reduce flexibility. A 90-degree plug boot may clear one header design but sit directly against another. This is especially important around the center cylinders, where tubes often curve tightly around the spark plugs.
The preassembled format is convenient, but it also means the lengths cannot be shortened cleanly without replacing and recrimping terminals. Excess cable must be routed with proper separators rather than left hanging near the exhaust.
I would inspect each wire before installation. Check that every terminal is firmly attached, the boots are undamaged, and the cables do not have cuts, flattened areas, or exposed reinforcement. After installation, pull lightly on the boot—not the wire—to confirm that the terminal is seated.
Key specifications
- 8mm wire diameter
- Silicone outer jacket
- Heavy glass-braid reinforcement
- Spiral-wound copper conductor
- High-temperature black boots
- 90-degree spark plug boots
- 90-degree HEI distributor boots
- Preassembled terminals
- Listed for Small Block Chevy 283–400 engines
- Designed for coil-in-cap HEI systems
- No external coil wire included
What I like
- Preassembled design saves installation time
- Listed specifically for Chevy 350 applications
- Silicone and glass-braid construction
- 90-degree boots at both ends
- No cutting or crimping required
- Appropriate for a straightforward coil-in-cap HEI layout
- Black finish provides a restrained engine-bay appearance
What to consider
- No precise published resistance specification
- Fixed lengths may create excess slack
- The set does not include an external coil wire
- It is unsuitable for some remote-coil or socket-cap distributors
- 90-degree boots do not fit every header layout
- Material documentation is less detailed than MSD or Moroso
- Separate heat sleeves may still be necessary
I would consider this set for a basic street or restoration build where convenience matters and the engine uses a standard large-cap HEI distributor. It is less technically documented than the other two products, so I would prioritize careful inspection, fitment verification, and secure routing.
Spark Plug Wire Comparison Table
| Product | Wire Size | Published Resistance | Plug-Boot Angle | Distributor Type | Intended Routing | Exterior Sleeving |
| MSD 35599 Super Conductor | 8.5mm | 40–50 ohms/ft | 90 degrees | HEI cap | Header-equipped SBC application | No |
| Moroso 51528 Ultra Series | 8mm | 350 ohms/ft | 90 degrees | HEI | Under header | Yes |
| A-Team Performance Wire Set | 8mm | Not clearly specified | 90 degrees | Coil-in-cap HEI | Under-exhaust/header-oriented | No |
The MSD and Moroso specifications come from their manufacturers, while the A-Team Performance information comes from its Amazon product listing. Product availability and listing details can change.
How I Selected These Spark Plug Wires
I selected these products by focusing on the conditions that matter most around Chevy 350 headers.
The first factor was application relevance. Each set is listed for a Small Block Chevy configuration, and all three use HEI-style connections. However, “HEI” does not describe every ignition setup. Coil-in-cap, remote-coil, large-cap, and aftermarket distributors may use different terminals or require a separate coil wire.
I then compared boot angle and routing style. A wire set needs to direct each cable away from the nearest header tube without stretching the terminal or forcing the boot against hot metal. Moroso’s under-header configuration is highly specific, while the MSD set uses application-specific lengths and the A-Team set focuses on preassembled installation.
Construction was another priority. I reviewed published conductor resistance, EMI suppression, jacket material, reinforcement, and external sleeving. I did not treat larger diameter as proof of better performance. Wire diameter describes the cable’s outside measurement; it does not independently establish conductor quality, resistance, or terminal strength.
Finally, I considered installation difficulty. Preassembled wires are convenient, but fixed lengths can be difficult to organize. Application-specific sets may provide cleaner routing, while universal cut-to-fit wires offer the greatest flexibility but require correct crimping tools and technique.
What to Consider Before Buying Chevy 350 Plug Wires
Distributor-Cap Terminal Style
Inspect the distributor cap before purchasing a wire set.
A traditional large-cap HEI distributor uses raised male towers that resemble spark plug terminals. Older points-style caps commonly use recessed female sockets. A preassembled HEI wire will not correctly connect to a socket-style cap unless its terminal is changed.
Some aftermarket distributors use an HEI-type tower cap but mount the ignition coil remotely. These setups may require a separate coil wire. The A-Team set is specifically described for a coil-in-cap system and does not include an external coil cable.
Spark Plug Boot Angle
Straight, 45-degree, 90-degree, and adjustable boots all have useful applications.
A 90-degree boot turns the wire close to the cylinder head and may improve clearance around many Small Block Chevy headers. However, some tubes pass directly behind or below the plug, making another angle more appropriate.
Inspect all eight cylinders. Header geometry often changes from one cylinder to the next, so a boot that clears seven locations may still contact the tube at the eighth.
Header Clearance
Direct contact between a spark plug wire and header tube should be avoided.
Heat-resistant insulation slows deterioration but does not make the cable immune to sustained exhaust temperature. Leave a visible air gap and use separators to prevent the wires from sagging as the engine vibrates.
MSD’s installation guidance recommends routing plug wires away from headers, through separators, and toward the distributor cap. Its ignition instructions also advise keeping wiring away from sharp edges and engine heat sources.
Wire Routing Style
Over-valve-cover routing makes the wires easier to inspect and replace. It may also keep more of the cable away from the hottest part of the headers, but it leaves the wires more visible.
Under-header routing creates a cleaner upper-engine appearance and may simplify access around the carburetor and valve covers. It also exposes the wires to more exhaust heat and can make servicing difficult.
Choose the set based on the intended route rather than forcing an under-header product into an over-cover layout or vice versa.
Resistance and EMI Suppression
Resistance is commonly measured in ohms per foot. Lower resistance can reduce the amount of ignition energy lost through the cable, but street vehicles also need EMI and RFI suppression.
Spiral-wound conductors provide a balance between energy transfer and electrical-noise control. MSD achieves 40 to 50 ohms per foot while using a ferro-magnetic core and tightly wound conductor to suppress EMI. Moroso uses a higher-resistance stainless nickel-alloy spiral conductor around a fiberglass core.
A product should not be judged only by the lowest resistance number. Terminal quality, insulation, routing, and compatibility also determine whether the ignition system operates reliably.
Wire Diameter
An 8.5mm wire is not automatically better than an 8mm wire.
The larger cable may contain thicker insulation or a different internal conductor, but outside diameter does not directly measure energy delivery. It also affects installation because factory separators designed for smaller wires may not accept an 8.5mm cable.
Match the wire separators to the actual outside diameter and verify that the cables can pass through the intended routing space without being crushed.
Preassembled vs. Custom-Fit Wires
Preassembled wires reduce installation time and remove the need to crimp terminals. They are appropriate when the supplied lengths closely match the engine.
Custom-fit wires allow each cable to be measured and trimmed for a precise layout. This can eliminate excess slack, but incorrect stripping or crimping can create loose terminals and intermittent ignition problems.
For either design, the shortest wire is not always the correct wire. Each cable needs enough slack for engine movement and servicing without forming large loops near the headers.
How to Protect Spark Plug Wires From Headers
Maintain physical space wherever possible. Airflow and distance are the first layers of heat protection.
Use rigid separators or wire looms to hold the cables in a fixed path. Separators also prevent pinch damage and keep wires from moving toward the headers during acceleration or vibration.
Install heat-resistant boot sleeves where header clearance is limited. A sleeve can reduce radiant-heat exposure, but it should not be used to hide direct contact between the boot and exhaust tube.
Avoid routing wires across sharp valve-cover edges or brackets. Vibration can wear through the jacket even when the cable is not exposed to extreme heat.
Inspect the wires after several driving cycles. Look for hardened boots, discoloration, glossy or melted areas, cracks, exposed reinforcement, and black tracking marks. Reposition or replace damaged wires rather than covering existing damage with a sleeve.
Chevy 350 Spark Plug Wire Installation Tips
Work on a cool engine. Headers and spark plug areas can retain heat long after the vehicle is shut down.
Replace one wire at a time when the existing firing order is correct. This prevents accidental cross-connection at the distributor cap.
Compare the new wire lengths with the existing layout before installation. Plan the entire route and position the separators before firmly seating every terminal.
Press the boot onto the spark plug until the terminal engages securely. NGK’s wire-set guidance recommends pushing the boot onto the plug until it snaps into place.
Pull on the boot rather than the cable when removing or checking a connection. Pulling directly on the wire can separate the conductor from the terminal.
Keep the cables away from throttle linkage, belts, pulleys, accessory brackets, and sharp metal surfaces. Use correctly sized separators instead of overtightened zip ties.
For a traditional Chevy V8 firing order, pay particular attention to the wires for cylinders five and seven. Do not run them tightly together for an extended distance. Secure, separated routing reduces the risk of inductive interference between adjacent cables.
After installation, start the engine and check for a stable idle. Investigate any new misfire immediately. A loose terminal, incorrect firing order, damaged boot, or wire resting against grounded metal may be responsible.
Frequently Asked Questions
What spark plug wires work best with headers on a Chevy 350?
The right set depends on the distributor, boot clearance, and routing style. The MSD 35599 is a strong option for a Small Block Chevy with an HEI cap and application-specific header routing. The Moroso 51528 is more appropriate when sleeved under-header routing matches the build.
A preassembled set such as the A-Team Performance wires can work for a basic coil-in-cap HEI installation, but the fixed lengths and 90-degree boots must match the headers.
Are 90-degree spark plug boots suitable for Chevy 350 headers?
They are suitable for many headers, but not all of them.
A 90-degree boot can direct the wire close to the cylinder head and away from certain header tubes. Other header designs place a tube directly behind the plug, where a straight, 45-degree, or adjustable boot may provide more clearance.
Check the distance at every cylinder before selecting a fixed-angle set.
Can spark plug wires touch header tubes?
No. Direct contact should be avoided even when the wires use heat-resistant jackets or protective sleeves.
Sustained contact can harden the boot, damage the insulation, and create voltage leakage or a misfire. Use separators to maintain an air gap and add heat sleeves where radiant heat remains intense.
Do I need heat sleeves on spark plug wires?
Heat sleeves are useful when the boots pass close to headers, particularly in under-header installations.
They are not mandatory when the wires have adequate clearance and remain securely positioned. A sleeve should provide extra protection rather than compensate for a boot resting directly on a header tube.
Are 8.5mm wires better than 8mm wires?
Not automatically.
Diameter does not independently measure conductor resistance, terminal quality, EMI suppression, or heat resistance. MSD’s 8.5mm wire has very low published resistance, while Moroso’s 8mm wire adds exterior sleeving and a reinforced EPDM jacket.
Choose based on specifications and fitment rather than size alone.
Will HEI spark plug wires fit a points distributor?
Usually not without changing the distributor terminals.
Large-cap HEI distributors generally use male towers, while many points distributors use recessed socket terminals. Inspect the cap and order a wire set with the correct ends.
Should Chevy 350 plug wires run over or under the headers?
Either route can work.
Over-valve-cover routing usually makes inspection and maintenance easier. Under-header routing creates a cleaner appearance but exposes the cables to more heat.
The correct choice depends on header shape, wire lengths, boot angle, engine-bay space, and personal preference.
Do low-resistance spark plug wires increase horsepower?
Low-resistance wires can help reduce ignition-energy loss, but replacing functioning wires does not guarantee a noticeable horsepower increase.
The main benefit is reliable energy delivery, especially with a performance ignition system. Replacing damaged or excessively resistant wires may restore performance that was being lost through misfires or voltage leakage.
How do I stop spark plug boots from burning?
Create more distance between the boots and header tubes. Change the routing, use suitable separators, and select a boot angle that directs the cable away from the exhaust.
Add heat-resistant sleeves where necessary, but do not rely on sleeves alone when a boot is touching the header.
How often should Chevy 350 spark plug wires be replaced?
There is no universal interval because heat, mileage, ignition output, routing, and material quality all affect service life.
Inspect the wires during routine maintenance. Replace them when the jackets become cracked, burned, brittle, swollen, oil-soaked, or visibly damaged. Loose terminals, unexplained misfires, and visible arcing are also reasons to investigate replacement.
Conclusion
Selecting the best spark plug wires for Chevy 350 with headers depends on the distributor-cap terminals, header design, spark plug boot angle, routing style, and available heat clearance.
The MSD 35599 Super Conductor 8.5mm Spark Plug Wire Set is my first recommendation for a performance-oriented Small Block Chevy with an HEI cap. Its low-resistance conductor, EMI-suppression design, and cylinder-specific lengths provide a strong foundation for a carefully routed installation.
The Moroso 51528 Ultra Series Sleeved Spark Plug Wire Set makes more sense when the engine requires a sleeved under-header layout. Its reinforced jacket and exterior sleeving provide added protection, although the cables must still remain clear of the header tubes.
The A-Team Performance 8.0mm Silicone Spark Plug Wire Set offers a simpler preassembled option for a coil-in-cap HEI system. Its fixed lengths and 90-degree boots should be checked carefully against the actual engine layout.
Regardless of the set selected, secure routing matters as much as wire construction. Verify the distributor terminals, maintain an air gap around the headers, use correctly sized separators, and inspect the installation after several heat cycles.
