Choosing the best coil packs for 6.0 Vortec engines starts with identifying which ignition-coil family is already on the engine. GM used several individual coil-near-plug designs across its 6.0L V8 lineup, and the same displacement can appear with different coil shapes, mounting brackets, electrical connectors, and interchange numbers depending on model year and engine application.
That makes fitment more important than advertised spark voltage. Early 6.0L engines such as the LQ4 and LQ9 can use D581/UF271 or D585/UF262-style coils depending on the vehicle and production configuration. Later Gen IV 6.0L applications may use D510C/UF413, UF414, or another application-specific coil family. Visual comparison and part-number verification should always come before ordering.
My primary recommendation is the Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8 for compatible later 6.0L Vortec applications using the 12570616/12611424-style square coil. It provides all eight coils and has a clearly defined interchange family that makes fitment verification easier.
For an earlier 6.0 Vortec equipped with square D581/UF271 coils, I would choose the ENA Square D581 Ignition Coil Pack Set of 8. It is particularly relevant to many older Silverado, Sierra, Yukon, Escalade, H2, and related V8 applications.
I would consider the NPAUTO Round Ignition Coil Pack Set of 8 when the vehicle uses its later round-style UF414/12573190-family coil. It covers a different application group from the early D585 round coil, which is an important distinction.
No matter which option you prefer, verify the original part number, coil shape, connector, mounting bracket, engine RPO, and model year before installation.
Best Coil Packs for 6.0 Vortec: 5 Products
| Image | Product Name | Check Price |
|---|---|---|
Best Choice | Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8 | Check Price |
Second Best | ENA Square D581 UF271 Ignition Coil Pack Set of 8 | Check Price |
Third Choice | NPAUTO Round Ignition Coil Pack Set of 8 | Check Price |
 | LCWRGS D585 UF262 Round Ignition Coil Pack Set of 8 | Check Price |
 | MAS UF271 D581 Ignition Coil, Spark Plug, and Wire Kit | Check Price |

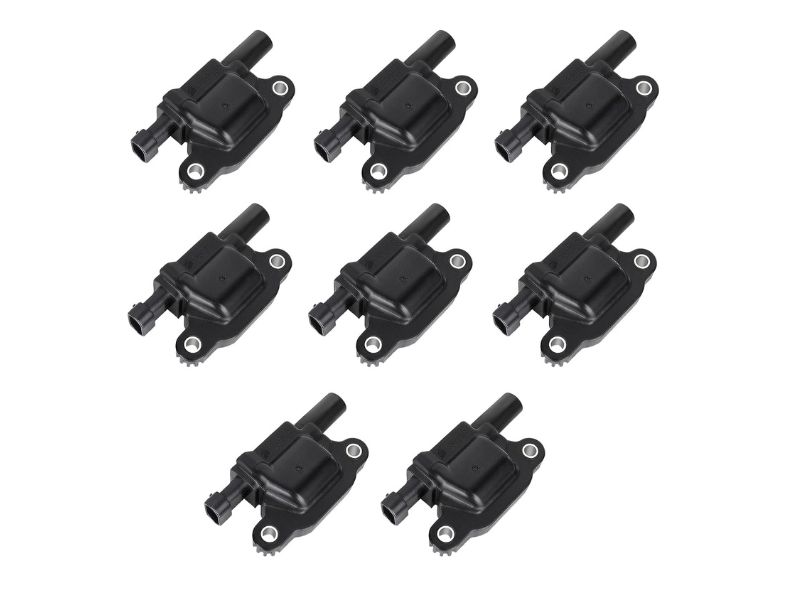

1. Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8
Key Features
- Complete set of eight ignition coils
- D510C / UF413 coil family
- Replaces 12570616 and 12611424
- Square-style individual ignition coils
- Designed for selected GM V8 applications
- Covers compatible 6.0L truck, SUV, van, and performance applications
- Direct-replacement installation concept
- One coil for each V8 cylinder
The Yikesai 12611424 set earns the first position because it combines broad usefulness for later GM V8 applications with a clearly identifiable interchange family.
If your 6.0L Vortec currently uses a D510C, UF413, 12570616, or 12611424-style coil, this is the first set I would compare against the original components.
The package contains eight individual coils, which matches the V8’s one-coil-per-cylinder ignition architecture. Unlike an older distributor system, the 6.0 Vortec uses coils positioned near the spark plugs with short high-voltage leads connecting the coil towers to the plugs.
This arrangement gives the engine controller precise ignition control while also simplifying cylinder-specific diagnosis.
If cylinder five develops a misfire, for example, the number-five coil can often be moved to another cylinder. If the misfire follows the coil, the diagnosis becomes much stronger.
This set is particularly useful when several old coils have become unreliable or when an engine has accumulated a mixture of mismatched replacement coils from previous repairs.
Installing eight matching coils provides consistency across both cylinder banks.
However, I would not automatically replace eight healthy factory coils because one cylinder begins misfiring.
A 6.0 Vortec misfire can result from:
- Worn spark plug
- Damaged spark-plug wire
- Coil connector problem
- Injector fault
- Vacuum leak
- Low fuel pressure
- Low compression
- Valve or lifter problem
- Harness damage
A cylinder-specific diagnostic trouble code tells you where the misfire was detected; it does not identify the failed component by itself.
The D510C/UF413 designation also protects against one of the most common buying mistakes with these engines: assuming every 6.0L uses the same coil.
It does not.
A physically different D581 or D585 coil should not be treated as a direct substitute merely because all of them appear on LS-based V8s.
For a stock engine, I view the Yikesai set primarily as a replacement product rather than a horsepower upgrade. When an original coil is weak, replacing it can restore combustion consistency and recover performance lost to misfire. A new coil does not automatically create additional horsepower when the original ignition already works correctly.
Installation is generally manageable with ordinary hand tools. I recommend changing one position at a time so plug-wire routing and electrical connections remain organized.
Inspect the short plug wires during the job. Heat from exhaust manifolds and headers can harden boots or damage insulation over time.
What I Like
- Full set of eight coils
- Clear D510C/UF413 interchange family
- Useful 12570616 and 12611424 references
- Good option for compatible later-generation 6.0L applications
- Individual coils remain easy to diagnose cylinder by cylinder
What I Do Not Like
- Does not replace D581 or D585 coils without additional compatibility considerations
- Eight-coil replacement may be unnecessary after one isolated failure
- Plug wires and spark plugs are separate maintenance items
Verdict
I recommend the Yikesai D510C/UF413 set first for a compatible 6.0 Vortec because its clearly identified coil family makes correct replacement easier. Verify the existing part number before ordering, especially on vehicles produced near ignition-system transition years.
2. ENA Square D581 UF271 Ignition Coil Pack Set of 8
Key Features
- Complete eight-coil set
- D581 / UF271 square coil design
- Replaces C1208, D581, UF271, and 12558693 families
- Designed for selected early GM V8 applications
- Compatible with numerous 6.0L truck and SUV configurations
- Screw-in/bolt-on mounting
- Individual coil-near-plug architecture
- Appropriate for many early LQ4/LQ9-era applications when matched
The ENA set is the option I would choose for an earlier 6.0 Vortec that uses the square D581/UF271 ignition coil.
This coil family appears across many first-generation LS-based truck and SUV applications, including selected Silverado, Sierra, Yukon, Escalade, Hummer H2, and related vehicles.
For a 6.0L owner, engine identification matters because vehicles using the LQ4 or LQ9 engine can span years where different coil designs appear.
The easiest approach is to compare the existing component before purchasing.
Look for:
- Square coil body
- D581 or UF271 interchange
- 12558693 reference
- Correct electrical connector
- Matching mounting holes
- Correct coil bracket arrangement
If those characteristics match, the ENA set offers a straightforward way to replace all eight coils.
The 6.0 Vortec’s coil-near-plug system uses a short spark-plug wire between each coil and plug. This means the wire remains an important part of the ignition circuit even though each cylinder has its own coil.
An old plug wire can create symptoms nearly identical to a weak coil.
Typical problems include:
- High internal resistance
- Cracked insulation
- Loose terminal
- Burned boot
- Exhaust heat damage
- Carbon tracking
For that reason, I would inspect every wire before automatically installing eight coils.
An intermittent misfire under acceleration is especially worth investigating carefully. Cylinder pressure rises under load, which increases the voltage required to initiate the spark. A marginal coil, wire, or worn spark plug may work at idle but break down when towing, accelerating hard, or climbing a grade.
The square D581 coil should not be confused with the D585 round coil.
Both appear on early LS-based truck engines, and some enthusiasts perform coil conversions, but a conversion is different from a factory-style replacement. Mounting brackets, wire lengths, electrical characteristics, and physical dimensions can differ.
If I am repairing an otherwise stock truck, I prefer matching the original coil configuration rather than creating unnecessary conversion work.
As with the Yikesai product, new coils are best viewed as a way to restore proper ignition. Claims of dramatic horsepower increases from stock replacement coils should be treated cautiously.
What I Like
- Clear D581/UF271 application
- Full eight-coil V8 set
- Particularly relevant to many older 6.0 Vortec trucks
- Useful OEM-style interchange references
- Straightforward installation when the original coil style matches
What I Do Not Like
- Not interchangeable with every early 6.0L coil design
- New plug wires are not included
- Buyers must pay close attention to production-year coil changes
Verdict
The ENA D581/UF271 set is my preferred choice when the existing 6.0 Vortec uses this square early-generation coil. Its focused interchange information makes it considerably safer than purchasing a generic “LS coil” based only on engine displacement.
3. NPAUTO Round Ignition Coil Pack Set of 8
Key Features
- Eight individual ignition coils
- Later round-style coil configuration
- UF414 / 12573190 interchange family
- Intended for selected GM 4.8L, 5.3L, 6.0L, and 6.2L applications
- Covers numerous later trucks, SUVs, vans, and related vehicles
- Direct-fit design for verified applications
- Individual coil-near-plug arrangement
- Different family from early D585/UF262 round coils
Detailed Review
The NPAUTO set is useful because it demonstrates why simply describing a coil as “round” is not enough.
Many 6.0 Vortec enthusiasts associate round coils with the well-known D585/UF262 truck coil, but later GM applications can use a different round-style ignition coil associated with UF414 and 12573190.
These should not be confused.
The NPAUTO set targets selected later GM V8 applications and provides all eight coils.
Depending on exact engine and vehicle, compatible 6.0L applications can appear in Silverado HD, Sierra HD, Savana, Express, and related platforms.
The important step is to verify the interchange family rather than relying on model-year range alone.
Compare your original coil against:
- UF414
- 12573190
- 12578224
- Connector configuration
- Coil body
- Bracket design
- Plug-wire orientation
If the original coil instead carries a D585/UF262 or D581/UF271 reference, I would choose the appropriate matching product rather than assuming this later round coil will substitute directly.
The complete set format is useful for high-mileage work vehicles.
A 6.0L engine in a heavy-duty pickup or van may spend years exposed to long operating cycles, towing load, high underhood temperature, and repeated thermal cycling.
Ignition coils contain fine copper windings surrounded by electrical insulation and potting material. Over time, heat and vibration can weaken insulation and contribute to intermittent breakdown.
This can produce a frustrating pattern where the engine runs normally when cold but begins misfiring after reaching operating temperature.
Still, heat-related misfire is not unique to the ignition coil.
A failing crankshaft sensor, injector, wiring connection, fuel-pressure problem, or mechanical condition can also become temperature dependent.
Diagnosis remains worthwhile.
One advantage of individual coils is that you do not necessarily need to replace all eight when one fails. If one NPAUTO coil eventually becomes defective, the cylinder-specific unit can be serviced independently.
What I Like
- Complete eight-piece set
- Covers a useful later 6.0L application group
- UF414 and 12573190 references help prevent incorrect ordering
- Individual coils simplify cylinder-specific repair
- Useful alternative to D510C-style sets when the original engine uses this design
What I Do Not Like
- “Round coil” terminology can easily be confused with D585
- Broad vehicle coverage requires careful engine verification
- Does not include spark-plug wires
Verdict
I would choose the NPAUTO set only after confirming a UF414/12573190-style original coil. For the correct later 6.0 Vortec application, it provides a practical full-engine replacement without converting the factory ignition architecture.

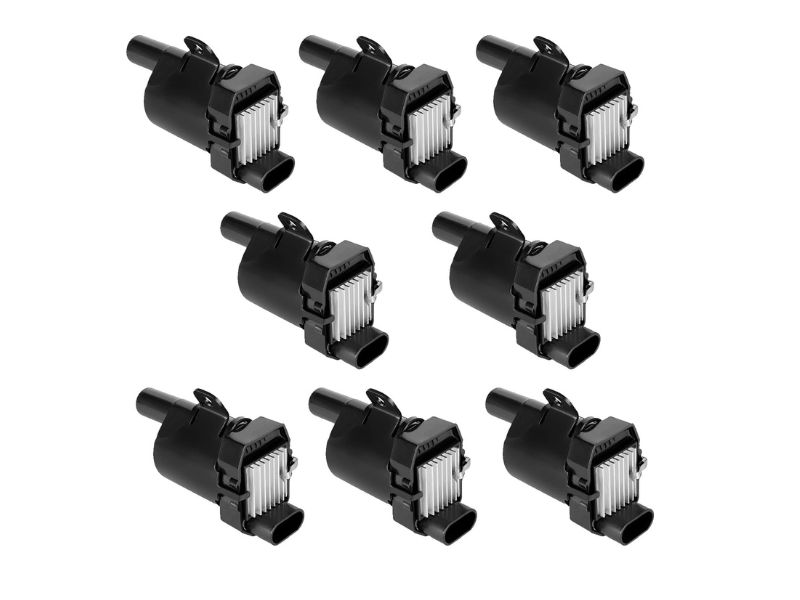

4. LCWRGS D585 UF262 Round Ignition Coil Pack Set of 8
Key Features
- Eight round D585/UF262-style coils
- Designed for selected early GM V8 applications
- Common references include UF262 and D585
- Compatible with many early 6.0L truck and SUV configurations
- Coil-near-plug design
- Direct replacement when original coil family matches
- Uses short external spark-plug wires
- Particularly relevant to early LS/Vortec truck applications
Detailed Review
The LCWRGS set covers one of the most recognizable LS-family ignition coils: the D585/UF262 round truck coil.
D585 coils have a strong reputation among LS enthusiasts because they appeared on many truck applications and became popular in engine swaps and performance builds.
That reputation does not make them universally interchangeable with every 6.0 Vortec coil.
The LCWRGS product is most appropriate when the vehicle already uses D585/UF262 coils.
This configuration can appear on selected early Chevrolet, GMC, and Cadillac V8 applications.
For a 6.0L engine, check the actual coil before ordering because another truck from the same general period may use square D581 coils instead.
A visual inspection helps because the D585 has a distinctive round body, but I prefer confirming both appearance and part number.
The ignition coil’s job is to build enough energy to initiate combustion reliably across the spark-plug gap.
Under demanding operating conditions, the required firing voltage rises.
Factors include:
- Increased cylinder pressure
- Wide plug gap
- Lean mixture
- Worn electrodes
- High engine load
- Forced induction
- Nitrous
- High compression
This is one reason D585 coils are popular in modified LS applications.
However, installing them on a stock engine that already has healthy compatible coils does not automatically create additional horsepower.
The spark only needs sufficient voltage and energy to fire the mixture consistently. Once that requirement is met, excess theoretical voltage capability does not directly translate into proportional engine output.
The short plug wires deserve careful inspection while installing the coils.
Early 6.0L truck engines place the wires close to the exhaust manifolds. Vehicles with aftermarket headers can reduce clearance even further.
Heat-damaged plug-wire boots are a common source of ignition trouble.
If the wires show cracking, burning, excessive resistance, or hardened boots, I would replace them during the same service rather than connecting deteriorated wires to new coils.
What I Like
- Genuine D585/UF262-style application focus
- Complete eight-coil set
- Strong choice for compatible early 6.0 Vortec configurations
- Familiar LS truck-coil architecture
- Suitable for stock replacement or appropriate custom applications
What I Do Not Like
- D585 does not automatically replace a D581 coil
- Spark-plug wires are not included
- Similar-looking early engine applications can still use different coil families
Verdict
The LCWRGS D585/UF262 set is the option I would select for a confirmed early 6.0 Vortec with round D585 coils. The key is preserving the correct factory configuration instead of buying it simply because D585 coils are popular in LS builds.

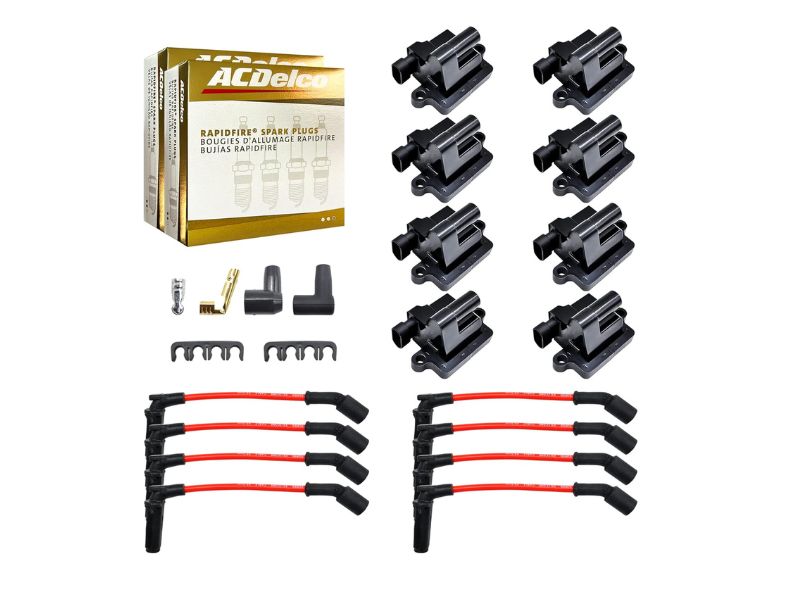

5. MAS UF271 D581 Ignition Coil, Spark Plug, and Wire Kit
Key Features
- Eight UF271/D581 square ignition coils
- Eight platinum spark plugs
- Complete set of 8.5 mm spark-plug wires
- Designed for selected early GM V8 applications
- Covers compatible 6.0L truck and SUV configurations
- Useful for a complete ignition-system refresh
- Common interchange includes D581, UF271, C1208, and 12558693
- Requires careful square-versus-round coil verification
Detailed Review
The MAS kit ranks fifth because it serves a more specific buyer: someone with a compatible early 6.0 Vortec who wants to replace coils, spark plugs, and plug wires together.
For the right high-mileage truck, that can be considerably more useful than purchasing coils alone.
The kit uses square UF271/D581 coils, so the same compatibility rules discussed with the ENA set apply.
If your engine uses D585 round coils, do not buy the MAS kit merely because the vehicle has a 6.0L V8.
Model-year transitions make physical inspection worthwhile.
This kit’s biggest advantage is completeness.
A 6.0 Vortec ignition path includes:
Ignition coil → coil tower → plug-wire terminal → wire conductor → plug boot → spark-plug terminal → electrode gap
A problem at any point can create a misfire.
Replacing only the coil does not help if the plug wire is burned internally or the spark plug is severely worn.
The 8.5 mm wires provide replacement leads for all eight cylinders. Wire diameter alone does not determine ignition performance, but good insulation and proper terminal construction are particularly useful near hot exhaust components.
Wire routing matters after installation.
Do not let the boots rest against exhaust manifolds or headers. If the vehicle uses aftermarket headers with tight clearance, additional heat protection may be appropriate.
The included spark plugs also make the kit convenient for an engine that is due for plug service.
I still recommend verifying the correct plug specification for the exact engine.
A spark plug needs the proper:
- Thread diameter
- Thread reach
- Seat design
- Heat range
- Electrode configuration
- Resistance
- Gap
The fact that a plug physically threads into the cylinder head does not automatically make it suitable.
The plug gap deserves particular attention on modified engines. Boosted, nitrous-assisted, or high-compression LS combinations may require a different gap than a stock naturally aspirated 6.0L.
Follow the requirements of the specific engine and calibration rather than using a universal performance gap.
This kit is less attractive when the engine already has relatively new plugs and high-quality wires. In that case, buying only the necessary coils avoids replacing usable components.
What I Like
- Coils, plugs, and wires supplied together
- Useful for comprehensive high-mileage maintenance
- Clear D581/UF271 interchange family
- Replaces most of the secondary ignition system during one service
- Particularly useful when original wires show heat damage
What I Do Not Like
- Not appropriate for D585 or later coil families
- More components mean more fitment checks
- Unnecessary when plugs and wires were recently replaced
Verdict
I would choose the MAS kit for a compatible D581/UF271-equipped 6.0 Vortec that needs a complete ignition-system refresh. It is less compelling for a simple single-coil repair, but valuable when coils, wires, and plugs all need attention.
6.0 Vortec Coil Pack Comparison
| Product | Coil Family | Coil Shape | Quantity | Extra Components | Best Fitment Focus | Main Strength | Main Limitation |
| Yikesai 12611424 Set | D510C / UF413 | Square | 8 | None | Selected later 6.0L V8s | Clear interchange family and complete set | Wrong for early D581/D585 setups |
| ENA D581 Set | D581 / UF271 | Square | 8 | None | Selected early 6.0L Vortec engines | Strong early Vortec replacement option | Requires production-year verification |
| NPAUTO Round Set | UF414 / 12573190 | Round | 8 | None | Selected later GM 6.0L applications | Covers later round-coil configuration | Easily confused with D585 |
| LCWRGS D585 Set | D585 / UF262 | Round | 8 | None | Selected early 6.0L truck engines | Familiar D585 truck-coil format | Plug wires sold separately |
| MAS UF271 Kit | D581 / UF271 | Square | 8 | Plugs + 8.5 mm wires | Early 6.0L needing full service | Most complete ignition package | Unnecessary for coil-only repair |
The important difference is coil family, not simply round versus square construction.
A D585 and UF414 can both be described as round coils while representing different applications. Likewise, D581 and D510C are both square-style coils but should not automatically be treated as interchangeable.
How to Choose Coil Packs for a 6.0 Vortec
Identify the Exact 6.0L Engine
“6.0 Vortec” describes a family of GM V8 engines rather than one identical engine produced for every application.
Common 6.0L RPO codes include:
- LQ4
- LQ9
- LY6
- L96
- L76
Other specialized 6.0L variants also exist.
The RPO code is more useful than displacement alone because it helps identify the engine generation and original application.
Check the Original Coil Number
Useful interchange families include:
- D581 / UF271 / 12558693
- D585 / UF262
- D510C / UF413 / 12570616 / 12611424
- UF414 / 12573190
Do not order until you know which family matches the vehicle.
Compare the Physical Shape
Coil shape is a useful secondary check.
Look at:
- Round versus square body
- Heat-sink design
- Mounting holes
- Connector location
- Coil tower position
- Bracket arrangement
Part number should still take priority over visual similarity.
Verify the Connector
The electrical connector needs to match without cutting or modifying the factory harness.
A plug that almost fits is not good enough.
Check:
- Connector shape
- Pin count
- Locking tab
- Terminal orientation
Inspect the Mounting Bracket
Different coil families can use different brackets and bolt spacing.
This becomes particularly important during LS swaps, where an engine may already have non-original valve covers or relocation brackets.
D581 vs. D585 vs. D510C: What Is the Difference?
D581 / UF271
The D581 is an early square-style truck coil used in selected GM V8 applications.
It is a common choice for LQ4/LQ9-era engines when that is the factory configuration.
D585 / UF262
The D585 is the recognizable round truck coil commonly discussed in LS performance circles.
It has strong spark capability and is widely used, but installing D585 coils on an engine originally equipped with another style may require different brackets or related hardware.
D510C / UF413
D510C is a later square-style coil family associated with part numbers such as 12570616 and 12611424.
It appears across numerous Gen IV GM V8 applications.
UF414 / 12573190
UF414 represents another later coil configuration used across selected GM V8 applications.
It should not be confused with D585 simply because both can have a rounded appearance.
How the 6.0 Vortec Ignition System Works
A 6.0 Vortec typically uses eight individual ignition coils, one for each cylinder.
Each coil contains a primary and secondary winding around a magnetic core.
The engine control system charges the primary winding for a controlled period known as dwell.
When primary current is switched off, the magnetic field collapses rapidly. This induces high voltage in the secondary winding.
The voltage travels through the short plug wire to the spark plug.
Once the voltage becomes high enough to ionize the gap, current jumps between the electrodes and creates the spark that initiates combustion.
Individual coils provide several advantages:
- Precise ignition timing
- High available spark energy
- No mechanical distributor
- Easier cylinder-specific diagnostics
- Shorter high-voltage leads
Signs of a Bad Coil Pack on a 6.0 Vortec
Cylinder-Specific Misfire
Codes such as P0301 through P0308 indicate that the controller detected a misfire at a particular cylinder.
The code does not automatically prove that the coil is faulty.
P0300 Random Misfire
A P0300 can involve multiple cylinders and has many possible causes.
Rough Idle
A dead or intermittently firing cylinder can create noticeable shaking.
Hesitation Under Load
A weak ignition component may fail when cylinder pressure rises during acceleration or towing.
Loss of Power
A misfiring cylinder contributes less torque.
Poor Fuel Economy
Incomplete combustion can reduce efficiency.
Flashing Check-Engine Light
A severe active misfire can cause the warning lamp to flash.
This deserves immediate attention because unburned fuel entering the exhaust can overheat the catalytic converter.
How to Diagnose a Suspected 6.0 Vortec Coil
Scan the Engine
Begin with diagnostic trouble codes and misfire data when available.
Inspect the Plug
Look for:
- Worn electrodes
- Incorrect gap
- Cracked ceramic
- Oil fouling
- Carbon deposits
- Abnormal coloration
Inspect the Plug Wire
Check both boots and the conductor.
Look for heat damage around the exhaust manifold.
Swap the Coil
Move the suspected coil to another cylinder.
If the misfire follows the coil, the coil becomes a much stronger suspect.
Check the Injector
If the fault remains at the original cylinder, investigate fuel delivery.
Check Compression
Mechanical problems can create persistent cylinder-specific misfires.
This is especially important before replacing multiple ignition parts.
Should You Replace One Coil or All Eight?
You can replace a single failed coil on a 6.0 Vortec.
There is no rule requiring all eight to be replaced together.
Replacing one makes sense when:
- One coil is conclusively defective
- Remaining coils are healthy
- The originals are high-quality components
- The engine has moderate mileage
- Access is easy
A complete set becomes more attractive when:
- Several coils have failed
- The vehicle has very high mileage
- Multiple unknown aftermarket coils are installed
- The ignition system is being comprehensively serviced
- Repeated future repairs would be inconvenient
I would not remove seven healthy original coils solely because an inexpensive eight-pack is available.
Should You Replace the Spark-Plug Wires Too?
Many 6.0 Vortec engines use short plug wires between the coils and spark plugs.
Inspect them whenever coil work is performed.
Replace a wire when you find:
- Cracked insulation
- Burned boot
- Excessive resistance
- Loose terminal
- Carbon tracking
- Heat damage
- Poor sealing
A new ignition coil cannot compensate for a high-resistance or internally damaged plug wire.
Spark-Plug Gap and Ignition-Coil Load
The spark-plug gap directly affects required firing voltage.
A wider gap generally requires more voltage.
That means severely worn spark plugs can place additional stress on:
- Ignition coils
- Coil boots
- Plug wires
- Secondary insulation
For a stock engine, follow the spark-plug specification and gap appropriate to the exact RPO and model year.
Modified engines may need a different setup.
Best Coil Packs for a Modified 6.0 Vortec
A modified 6.0L engine can create higher ignition demand when using:
- Turbocharging
- Supercharging
- Nitrous oxide
- Higher compression
- High RPM
- Increased cylinder pressure
Under these conditions, spark blowout or misfire under load becomes more likely if the ignition system is marginal.
However, selecting a performance coil should still begin with electrical compatibility.
Do not choose a different coil family solely because an online discussion claims it has higher output.
Consider:
- PCM dwell strategy
- Coil saturation
- Plug gap
- Wiring
- Grounds
- Charging voltage
- Coil brackets
- Plug wires
- Tuning
The ignition system should function as a matched package.
Are High-Performance Coil Packs Worth It on a Stock 6.0?
Usually not when the original ignition system is healthy.
A stock 6.0 Vortec does not automatically gain meaningful horsepower because a replacement coil advertises higher voltage.
A healthy coil already provides enough spark energy for normal combustion.
A new coil can restore lost performance when the existing component is failing, but that is a repair rather than a horsepower upgrade.
Money is often better spent on proper maintenance:
- Correct spark plugs
- Healthy plug wires
- Clean electrical connections
- Good battery
- Proper charging voltage
- Fuel-system maintenance
- Repairing vacuum leaks
Coil Pack Installation Tips
Allow the Engine to Cool
The coils and plug wires sit close to hot cylinder heads and exhaust manifolds.
Disconnect Power as Required
Follow the appropriate service procedure for the vehicle.
Photograph the Original Arrangement
This is useful before removing multiple wires and connectors.
Replace One Cylinder at a Time
Doing so minimizes routing mistakes.
Inspect Every Connector
Look for:
- Broken tabs
- Corrosion
- Bent terminals
- Melted plastic
- Pulled wires
Check the Plug-Wire Boots
Make sure each wire snaps firmly onto both the coil tower and spark plug.
Route Wires Away From Exhaust Heat
Headers can create even greater clearance problems than factory manifolds.
Tighten Mounting Hardware Properly
The coils need to remain secure without overtightening small fasteners.
Verify the Repair
After installation, clear codes when appropriate and confirm that misfire data returns to normal.
Maintaining 6.0 Vortec Ignition Coils
Ignition coils require little routine servicing themselves.
Preventive attention should focus on the components and conditions around them.
Maintain Spark Plugs
Worn plugs increase voltage demand.
Inspect Plug Wires
Heat is a major concern on truck V8s.
Repair Wiring Problems
Damaged connectors can mimic coil failure.
Maintain Charging Voltage
Low or unstable voltage can create drivability problems throughout the electronic engine-management system.
Prevent Engine Overheating
Excessive heat accelerates deterioration of electrical insulation.
Fix Oil and Coolant Leaks
Contamination around electrical connectors and boots should not be ignored.
Common Mistakes When Buying 6.0 Vortec Coil Packs
Assuming Every 6.0 Uses the Same Coil
This is the biggest mistake.
Different 6.0L engines and production years can use different ignition coils.
Buying by Round or Square Shape Alone
Multiple different coil families share broadly similar shapes.
Ignoring the RPO Code
LQ4, LQ9, LY6, and L96 engines are not identical applications.
Ignoring the Interchange Number
A part number provides much stronger fitment evidence than displacement alone.
Automatically Converting to D585 Coils
D585 coils are popular, but a conversion can require additional hardware.
Replacing All Eight Without Diagnosis
One bad coil does not automatically make seven others defective.
Ignoring Plug-Wire Condition
Heat-damaged wires can produce the same symptoms as weak coils.
Installing the Wrong Spark Plugs
Heat range, reach, electrode design, and gap matter.
Assuming Higher Voltage Equals More Horsepower
Correct ignition energy and compatibility matter more.
Ignoring a Flashing Check-Engine Light
Severe misfire can damage catalytic converters.
Frequently Asked Questions
What are the best coil packs for 6.0 Vortec engines?
The best coil packs for 6.0 Vortec engines match the factory coil family and exact application.
For compatible D510C/UF413 applications, I recommend the Yikesai 12611424 set first. For an earlier engine using square D581/UF271 coils, the ENA set is the better match. D585 and UF414 applications require their own appropriate coil designs, so inspect the original components before ordering.
How many coil packs does a 6.0 Vortec have?
A typical 6.0 Vortec V8 uses eight individual ignition coils, one for each cylinder.
The coils usually mount near the valve covers and connect to the plugs through short high-voltage wires. This individual-coil system differs from older distributor ignition and allows cylinder-specific ignition control and diagnosis.
Are all 6.0 Vortec coil packs interchangeable?
No, GM used multiple ignition-coil designs across different 6.0L engines and production years.
Common families include D581/UF271, D585/UF262, D510C/UF413, and UF414-style coils. Their connectors, housings, brackets, and electrical characteristics can differ. Match the original part number whenever possible.
What is the difference between D581 and D585 coils?
D581 is a square-style coil, while D585 is a distinctive round truck-coil design.
Both appear on LS-based GM applications, but they should not automatically be treated as direct replacements for one another. A conversion may involve brackets, wire lengths, and other considerations. For routine repair, matching the factory coil is simpler.
Are D585 coils better for a 6.0 Vortec?
D585 coils are capable components, but they are not automatically better for every 6.0 Vortec.
They are popular in performance applications because of their ignition capability, but an engine already equipped with healthy, correctly matched coils may gain little from converting. Reliability and compatibility should come before theoretical output.
Can I replace only one bad coil pack?
Yes, a single defective ignition coil can normally be replaced without changing all eight.
Replacing one is particularly sensible when the fault has been confirmed and the remaining coils are healthy. A complete set becomes more attractive when several coils are failing or the engine contains many old or mismatched replacement components.
How do I know which coil is bad?
A cylinder-specific misfire code and coil-swap test can help identify a defective coil.
Move the suspected coil to another cylinder when the design permits. If the misfire follows the coil, the component is strongly implicated. If the fault stays on the original cylinder, inspect the plug, wire, injector, compression, and wiring.
Can bad coil packs cause a P0300 code?
Yes, multiple weak coils can contribute to P0300, but the code has many other possible causes.
P0300 indicates random or multiple-cylinder misfire. Fuel pressure, vacuum leaks, injectors, spark plugs, wiring, compression, and valvetrain faults should also be considered before replacing an entire coil set.
Should I replace spark plugs when changing the coil packs?
Replace spark plugs when they are worn, damaged, incorrectly gapped, or already due for service.
New coils do not require new plugs automatically. However, servicing worn plugs during the same repair can reduce ignition demand and prevent duplicate labor, especially on a high-mileage engine.
Can spark-plug wires cause a 6.0 Vortec misfire?
Yes, damaged or high-resistance plug wires can cause misfires even when the ignition coils are healthy.
The short wires operate near significant exhaust heat. Inspect them for burned boots, cracked insulation, loose terminals, and carbon tracking whenever the ignition system is serviced.
Will new coil packs increase horsepower?
New coils usually restore power lost to ignition problems rather than create major additional horsepower.
If an old coil breaks down under load, replacement can restore normal combustion. When the existing ignition system already fires every cylinder correctly, installing aftermarket coils alone generally should not be expected to produce dramatic power gains.
Why does my 6.0 Vortec misfire under load?
Higher cylinder pressure under load increases the voltage required to fire the spark plug.
A marginal coil, worn plug, damaged wire, or excessive plug gap may work at idle but fail during acceleration or towing. Fuel-delivery and mechanical problems can create similar symptoms, so diagnosis should cover more than ignition components.
How long do 6.0 Vortec ignition coils last?
There is no fixed mileage at which every 6.0 Vortec ignition coil must be replaced.
Service life depends on heat exposure, vibration, plug condition, electrical-system health, manufacturing quality, and driving conditions. Many original coils last a long time, so replacement should normally be based on diagnosis rather than age alone.
Should I use performance coils on a turbo 6.0 Vortec?
A boosted 6.0 may benefit from greater ignition capability when the existing system becomes marginal under pressure.
However, coil selection should be coordinated with plug gap, calibration, dwell strategy, charging voltage, wiring, boost level, and engine setup. Simply installing the highest-output advertised coil is not a complete ignition strategy.
What should I check before ordering 6.0 Vortec coils?
Check the engine RPO, original coil number, connector, body shape, bracket, and model year before ordering.
These checks are more reliable than searching by 6.0L displacement alone. Production changes can occur within the same general vehicle generation, so comparing the existing coil directly with the replacement is worthwhile.
Conclusion
Finding the best coil packs for 6.0 Vortec engines requires more attention to fitment than to advertised spark output. GM used several ignition-coil designs across the 6.0L V8 family, including D581/UF271, D585/UF262, D510C/UF413, and later round-style configurations.
My primary recommendation is the Yikesai 12611424 D510C UF413 Ignition Coil Pack Set of 8 for compatible later 6.0L applications using that exact coil family. It provides a complete set while giving buyers useful interchange numbers to confirm before installation.
For earlier square-coil engines, the ENA D581 UF271 Set of 8 is the alternative I would choose. The NPAUTO Round Coil Set better suits compatible later UF414-style applications, while the LCWRGS D585 UF262 Set is intended for early engines already equipped with the familiar round truck coils.
The MAS UF271 kit is the most complete option when a compatible engine needs coils, plug wires, and spark plugs serviced together.
Before making the final choice, identify the engine RPO, model year, original coil part number, connector, mounting bracket, coil shape, spark-plug wires, and plug specification. Correct fitment and a properly diagnosed ignition problem matter far more than installing the most aggressively advertised coil pack.
